ABB UNS0119A-Z,V1 3BHE030579R0001 | Original ABB Generator Control Board

Description

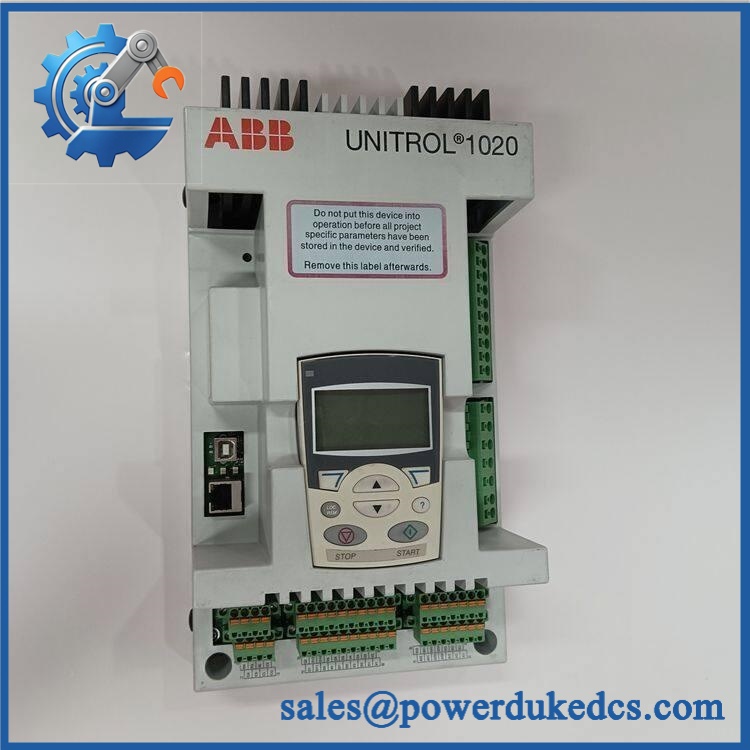

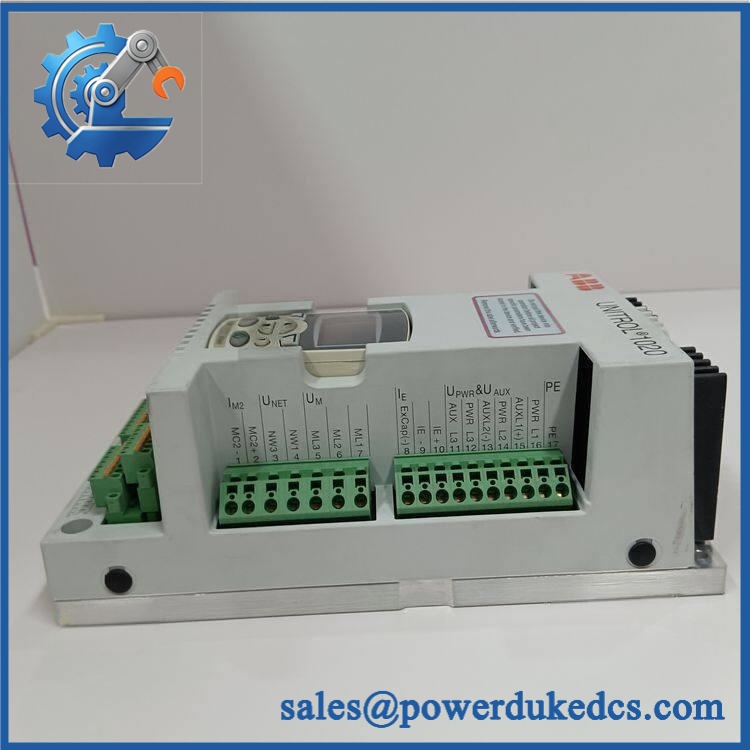

• Model: UNS0119A-Z,V1
• ABB Part Number: 3BHE030579R0001
• Brand: ABB
• Series: UNITROL 1020 / UNITROL 1000
• Part Type: Digital excitation controller / AVR control unit
• Core Function: Regulates synchronous-generator excitation to maintain generator voltage and support reactive-power control.
• Key Specs: ABB UNITROL 1020 architecture, configurable digital I/O, excitation-control functions, and communication capability. ABB-related product references identify UNS0119A-Z,V1 3BHE030579R0001 specifically with the UNITROL 1020 system.

Product Introduction

Generator voltage instability is often traced back to the excitation-control chain when the regulator cannot correctly process voltage feedback or command the excitation power stage. The ABB UNS0119A-Z,V1, part number 3BHE030579R0001, is associated with the UNITROL 1020 digital excitation system and functions as a key control component within the excitation architecture.

UNITROL 1020 is intended for excitation and voltage-regulation duties on synchronous generators and industrial machines. The associated control architecture handles generator measurements, regulation algorithms, digital signals, and communication with the surrounding control system.

Core Technical Specifications

ABB UNS0119A-Z,V1 3BHE030579R0001

ABB-related documentation and product references identify the unit as a UNITROL 1020 excitation-control component and report 12 digital I/O points, with up to 8 configurable as outputs. Other detailed electrical and communication parameters vary by UNITROL 1020 configuration and should be verified against the installed system.

Application Scenarios & Pain Points

In a generator excitation system, voltage regulation depends on reliable processing of generator feedback. A defective ,V1 can therefore affect excitation regulation, generator voltage stability, and associated control functions.

For hydroelectric and thermal-generation equipment, UNITROL 1020 is used for excitation and voltage-regulation duties on synchronous machines. Maintaining an identified controller spare can shorten recovery time when a control-board fault occurs.

During commissioning or maintenance, digital input/output behavior should be checked against the actual excitation-system wiring. A wiring mismatch can appear as a controller fault even when the board itself is functional.

At cabinet temperatures approaching 50°C, inspect ventilation and heat accumulation carefully. Generator excitation cabinets can contain substantial heat-producing power electronics, and excessive cabinet temperature can aggravate intermittent controller faults.

Common Error Codes & Diagnostic Symptoms

Symptom: Generator voltage regulation becomes unstable
→ Diagnosis: Incorrect voltage feedback, controller malfunction, parameter/configuration problems, or an associated excitation-control component may be responsible.
→ Action: Check measurement circuits and controller diagnostics; replace the ,V1 if the board is confirmed defective.

Symptom: AVR control becomes unavailable
→ Diagnosis: Loss of controller power, internal processor failure, or communication with associated excitation hardware can prevent normal automatic regulation.
→ Action: Verify auxiliary power, controller status, and connected excitation hardware before replacement.

Symptom: Digital input/output states do not correspond to field conditions
→ Diagnosis: A failed I/O channel, wiring fault, incorrect configuration, or controller hardware problem may be present.
→ Action: Check field wiring and channel configuration, then replace the module if the fault follows the controller.

Note: No verified ABB numeric fault-code list was established specifically for ,V1 3BHE030579R0001. Use the alarm and diagnostic information from the actual UNITROL 1020 installation.

ABB ,V1 3BHE030579R0001

Cross-Reference & Lifecycle Migration

• Primary model:
• ABB ordering number: 3BHE030579R0001
• System: UNITROL 1020
• Product family: UNITROL 1000.
• Related references: Search results also show other assemblies carrying different ABB ordering numbers. These should not be treated as equivalent solely because the ,V1 designation is similar.
• Direct replacement: No universal drop-in successor was verified for 3BHE030579R0001.
• Revision: The V1 designation is part of the identification and should be matched during procurement.
• Firmware: Check the installed UNITROL 1020 firmware and application configuration before commissioning a replacement controller.
• Lifecycle: Treat this as an established/legacy UNITROL 1020 spare for maintenance planning unless ABB confirms current availability for the exact ordering number.
• Buffer-stock strategy: For critical generator excitation systems, maintaining a tested spare controller is advisable because controller failure can prevent normal excitation operation.

Field Engineer’s Tech Notes

Warning 1 — Do not confuse similar ,V1 references.
Different ABB ordering numbers can appear with similar UNITROL designations. The exact 3BHE030579R0001 number matters (do not substitute a different R-number simply because the board label looks similar).

Warning 2 — Check feedback wiring before condemning the controller.
A bad PT/CT signal, loose terminal, incorrect scaling, or measurement-circuit problem can create symptoms that look like an AVR controller failure. Verify the feedback chain first.

Strict QA & Testing SOP

1. Part identification — Verify and 3BHE030579R0001.
2. Nameplate inspection — Record serial number, hardware revision, and all visible markings.
3. Physical inspection — Examine the PCB, housing, connectors, terminals, and mounting points.
4. Damage screening — Check for corrosion, contamination, cracked components, discoloration, and overheating.
5. I/O inspection — Verify the digital I/O terminals and connector condition.
6. Power verification — Confirm the applicable UNITROL 1020 power arrangement before energization.
7. Controller startup test — Energize the board in a compatible test environment and verify normal initialization.
8. I/O simulation — Apply controlled input signals and verify expected digital responses.
9. AVR/control test — Verify appropriate regulation behavior using a suitable UNITROL test configuration.
10. Communication test — Check applicable communication interfaces used by the installed system.
11. Extended run test — Monitor for resets, abnormal temperature, unstable control behavior, or intermittent I/O.
12. Diagnostic review — Record controller status and system alarms.
13. Final QA — Document test results and photograph the tested unit.
14. ESD-safe packaging — Protect the controller against static discharge and mechanical shock.

Test videos are available upon request for units that undergo functional testing.

Buyer’s FAQ

Q: What is ABB 3BHE030579R0001?
A: It is the ABB controller associated with the UNITROL 1020 digital excitation system.

Q: Is this an AVR controller?
A: Yes. The unit is associated with the UNITROL 1020 excitation architecture and performs digital excitation/voltage-regulation control functions.

Q: Can another ,V1 with a different ABB part number replace it?
A: Do not assume so. Search results show multiple ordering numbers associated with similar ,V1 designations. Verify the complete ABB part number, hardware revision, system configuration, and application before substitution.

Q: What should I request before purchasing?
A: Request clear photographs showing and 3BHE030579R0001, plus confirmation of hardware revision, serial number, operating condition, functional-test results, warranty, and packaging details.
