Woodward 3522-1009 | BUM60 EM-80 Servo Driver Module

• Brand: Woodward
• Full Model Number: BUM60-1224-54-B-001-VC-A0-0093-0013-G003-0000 / 3522-1009
• Lifecycle Status: Legacy / replacement item; Woodward retrofit documentation identifies 3522-1009 as an earlier EM-80/EM-300 driver
• Core Function: EM-80 all-electric actuator servo driver for prime-mover fuel-rack and turbine actuation
• Top 3 Technical Specs: 3-phase 400–480 VAC ±10% | 15 A rated output current | 4–20 mA command input
• Stock & Condition: New Surplus / Tested Refurbished subject to physical inventory confirmation | Emergency dispatch subject to QC and carrier cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

A failed Woodward 3522-1009 can prevent an EM-80 actuator from positioning correctly, potentially holding a turbine, engine, or other prime mover out of service. Woodward’s official EM-80/EM-300 manual identifies the driver as the device that controls actuator position from a position-demand signal, and the system is intended for applications including engine fuel racks, turbine fuel racks, variable-geometry control, and timing control. Woodward’s retrofit documentation specifically names 3522-1009 as an earlier EM-80/EM-300 driver model.

For TCO, retaining the established BUM60/EM-80 architecture can avoid replacing the actuator, resolver arrangement, cabinet wiring, and control interface simply because the driver has failed. The official driver specification calls for 3-phase 400–480 VAC, 50–60 Hz, ±10%, with 15 A rated output current, a 4–20 mA command input, and a separate 24 VDC auxiliary supply for the driver’s logic and status functions. The key lifecycle issue is migration: Woodward documents 3522-1042 as a newer replacement path for earlier 3522-1004, 3522-1005, and 3522-1009 drivers, with a dedicated retrofit procedure.

Module 4: Compatibility & Replacement Matrix (Crucial for Buyers)

Field Traps — Watch Out

Rotation sense is critical: Woodward’s Application Note 51492 identifies 3522-1009 as an EM-80, clockwise (CW) driver. The same table identifies 3522-1004 as EM-300 CCW and 3522-1005 as EM-80 CW, while also warning that the actual actuator rotation sense must be verified in the field. Never approve a replacement solely from the 3522 family number.

Do not confuse exact replacement with retrofit: Woodward explicitly states that older 3522-1004, 3522-1005, and 3522-1009 units can require replacement by 3522-1042 using a dedicated retrofit procedure. That retrofit includes wiring and interface changes rather than a simple module exchange.

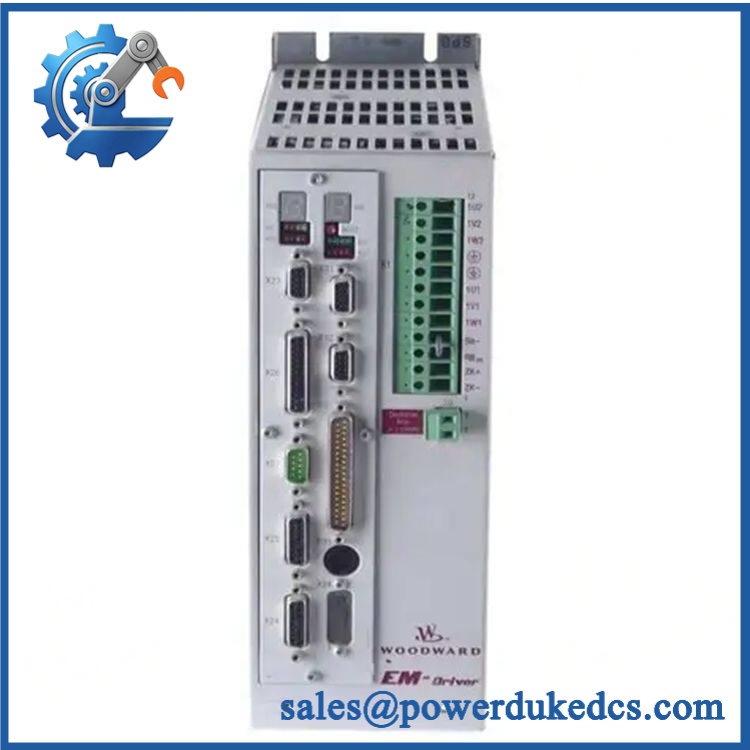

Woodward 3522-1009

Module 5: Quality Assurance & Testing SOP

This is a motor-control device connected to a high-energy three-phase supply and a prime-mover actuator. Pre-shipment testing must therefore verify both electrical operation and actuator-control behavior.

• OEM anti-counterfeit visual inspection: Verify Woodward markings, complete part number, nameplate data, connectors, housing, keypad/display where fitted, and manufacturing identifiers.
• Part-number verification: Record 3522-1009 and the complete BUM60 configuration from the physical nameplate.
• Hardware-revision recording: Capture revision, serial number, date code, and configuration markings.
• Physical inspection: Check power terminals, I/O connectors, resolver interface, cooling path, mounting hardware, PCB condition, and evidence of overheating or unauthorized repair.
• ESD-controlled handling: Keep the driver protected until installation; Woodward specifically provides handling precautions for static-sensitive electronics.
• 24 VDC auxiliary test: Verify the dedicated logic supply using the specified 24 VDC ±10% requirement and monitor startup behavior.
• Three-phase power test: Under an approved test-bench procedure, verify operation with the documented 400–480 VAC ±10% three-phase input.
• 4–20 mA command test: Apply controlled command signals and verify proportional drive response.
• Resolver feedback test: Simulate or connect an approved resolver signal and verify position-feedback acquisition.
• Output test: Verify controlled motor output and stable operation under representative load conditions.
• Ready-for-use verification: Confirm the driver’s ready signal transitions correctly after startup and fault clearance.
• Common-alarm test: Introduce controlled fault conditions and confirm the alarm output changes as specified.
• E-stop and enable test: Verify the enable, emergency-stop, and reset interfaces using the approved application test procedure.
• Actuator position test: Where an EM-80 test actuator is available, verify commanded movement, feedback direction, and final-position response.
• Rotation-sense verification: Confirm the application corresponds to the required CW configuration associated with 3522-1009 before installation.
• Thermal/load test: Run the driver under representative operating conditions and monitor current, temperature, and stability.
• Power-cycle test: Execute controlled restart cycles and verify repeatable initialization.
• Final QC: Record all measured values, command-input tests, feedback results, fault tests, photographs, inspector approval, and packaging status.

Woodward specifies that the EM driver combines the power board and controller in one housing and is programmable for custom requirements. The driver also interfaces with a resolver-based actuator feedback system.

Module 6: Procurement & Lifecycle FAQ

Q1. Is Woodward 3522-1009 genuinely in stock, and what is the cutoff for emergency shipping?
A1. Specialist inventory pages currently list 3522-1009 as a purchasable Woodward EM-80/EM-300 driver, but physical quantity and condition must be confirmed before PO release. Emergency dispatch depends on order receipt, payment clearance, QC completion, packing, and carrier pickup.

Q2. How do you verify the condition and authenticity of a surplus 3522-1009?
A2. Require complete nameplate verification, Woodward identification inspection, hardware-revision recording, connector and PCB inspection, controlled auxiliary-power testing, three-phase functional testing, 4–20 mA command testing, resolver verification, and documented QC results. Actual-unit photographs should accompany the procurement record.

Q3. Are there any firmware or configuration compatibility issues I should warn my engineers about before issuing the PO?
A3. Yes. The most important issue is the application configuration and actuator rotation sense. Woodward’s retrofit documentation identifies 3522-1009 as an EM-80, CW driver and emphasizes verifying the actual actuator rotation direction before replacement. A move to the newer 3522-1042 is a documented retrofit, not simply a firmware flash.

Q4. Can Woodward 3522-1042 directly replace 3522-1009?
A4. Not as a simple drop-in replacement. Woodward explicitly documents a retrofit path from 3522-1009 and other earlier drivers to 3522-1042. The conversion requires dedicated installation and wiring procedures, including interface and feedback-cable changes.

Q5. What warranty and return protection should procurement require?
A5. The quotation should state warranty duration, DOA coverage, functional-failure coverage, return authorization, inspection period, and return-freight responsibility. For this legacy driver, require written confirmation of the exact 3522-1009 configuration, hardware revision, rotation application, test status, and included accessories before shipment.
