Woodward 5466-1001 | Original MicroNet Rack Power Unit

1. Woodward 5466-1001 | Original MicroNet Rack Power Unit

Unboxing & Physical Snapshot

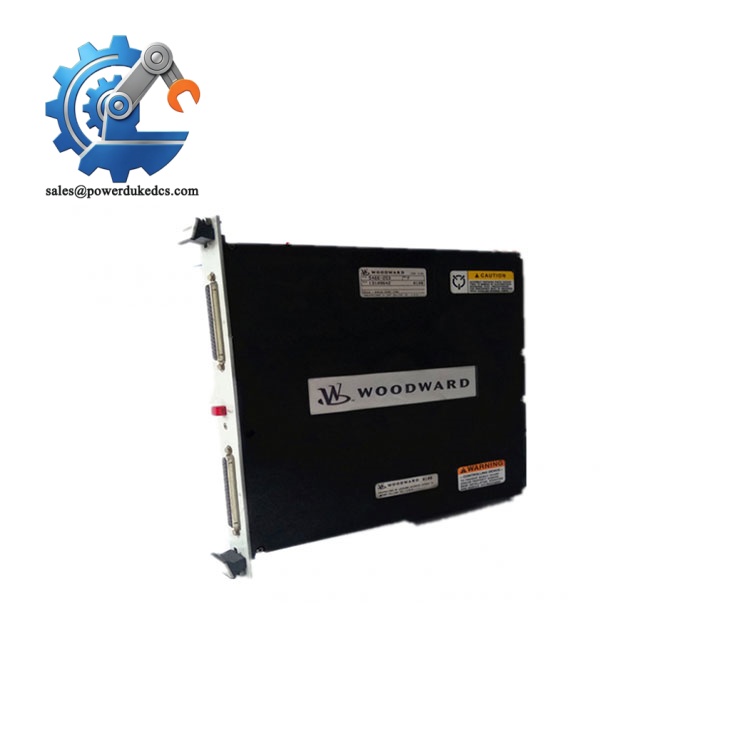

• Brand & Model: Woodward 5466-1001
• Product Family: MicroNet Plus Digital Controller System.
• Product Type: Two-slot Power Supply Module.
• Primary Function: Provides regulated DC power for MicroNet Plus control chassis installations, supporting turbine, generator, and industrial control applications.
• Input Power: 110 VAC / 125 VDC.
• Output Power: 24 VDC, 16 A system supply output.
• Mounting Style: Rack-mounted dual-slot chassis installation.
• Approximate Physical Dimensions (W × H × D):
  265 × 461 × 59 mm.
• Estimated Shipping Weight: Approximately 4.3 lb (1.9 kg) for the module itself; complete chassis weight varies by configuration.
• Cooling Method: Forced-air or chassis-assisted cooling depending on MicroNet Plus rack configuration.
• Front Panel Indicators:
  • Power supply status LEDs
  • Input fault indication
  • Overtemperature indication
  • Power supply fault indication
• Mechanical Features:
  • Plug-in rack module construction
  • Rear backplane connector
  • Front extraction hardware
  • Metal card enclosure
  • Cooling airflow channels
• What’s in the Box:
  • Woodward 5466-1001 MicroNet Plus power supply module
  • Protective ESD packaging
  • Connector protection accessories when supplied
  • Documentation when supplied

Product Introduction

The Woodward 5466-1001 mounts into the MicroNet Plus chassis as a dedicated power conversion module. It accepts 110 VAC or 125 VDC input and supplies regulated 24 VDC power for controller electronics and connected modules (which is critical in turbine control systems where power continuity directly affects control availability).

Treat this module as a critical infrastructure spare, not a standard electronic card. Inspect the rear connector pins, front indicators, cooling surfaces, and identification label before installation. Check the date code. Extended storage without environmental control may affect capacitors, connectors, and insulation materials.

Core Technical Specifications

Woodward 5466-1001

Global Compliance & Industry Certifications

Expected compliance considerations for the Woodward 5466-1001 include:

• CE Mark — applicable for electromagnetic compatibility and low-voltage requirements within approved MicroNet Plus system installations.
• ATEX — listed as an applicable certification for this MicroNet power supply module by some technical references.
• LVD (Low Voltage Directive) — relevant because the module interfaces with industrial AC/DC power sources.
• EMC Compliance — important for preventing electrical noise from affecting turbine control electronics.
• CSA Approval Considerations — applicable depending on installed system configuration.
• Marine Approvals (ABS/DNV) — reported for compatible MicroNet installations; verify the exact module revision.

Power supply certification is especially important because this module feeds safety-related control hardware. A failure caused by incorrect certification or installation can interrupt protection and shutdown functions.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Keep the 5466-1001 inside its original ESD shielding packaging. Protect the rear backplane connector from oxidation and contamination.
• Store in a temperature-controlled area with humidity below 60% RH whenever possible. Electrolytic capacitors and connector materials are sensitive to long-term moisture exposure.
• Avoid storing near vibration sources, corrosive gases, or battery charging areas.
• Record the serial number, hardware revision, and production date before placing the module into spare inventory.
• Before installation after extended storage, inspect the capacitor condition, connector surfaces, and cooling path.

Physical Installation Prerequisites

• Install the 5466-1001 only into a compatible Woodward MicroNet Plus chassis.
• Verify AC/DC input wiring before energizing.
• Confirm that protective grounding is connected correctly.
• Maintain adequate cabinet airflow for heat removal.
• Leave approximately 50 mm clearance around ventilation paths where cabinet design allows.
• Check that cooling fans and airflow channels are unobstructed.
• Verify redundant power supply arrangements if multiple modules are installed.
• Use ESD protection during module replacement.
• Confirm output voltage stability before connecting downstream control modules.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for Woodward 5466-1001?

A: Industrial power supply modules are commonly reviewed under HS 8504 classifications for electrical transformers, static converters, and power supply equipment. Final classification depends on customs interpretation and importing-country requirements.

Q: Why does Country of Origin (COO) matter for this Woodward power module?

A: COO affects customs clearance, duty calculation, trade documentation, and asset traceability. The origin declaration should match the commercial invoice, packing list, and certificate of origin when required.

Q: Should shipping insurance be arranged for the 5466-1001?

A: Recommended. Although the module has a metal enclosure, internal power electronics, capacitors, and backplane contacts can be damaged by shock, vibration, or moisture during transportation.

Q: Does the Woodward 5466-1001 include the latest firmware pre-loaded?

A: No firmware loading is normally associated with this power supply module. It is a power conversion unit; compatibility depends on chassis type, input voltage configuration, and MicroNet Plus system architecture rather than application firmware.
