Description
- Woodward 5466-1115 | Original TMR Control Hardware
Unboxing & Physical Snapshot

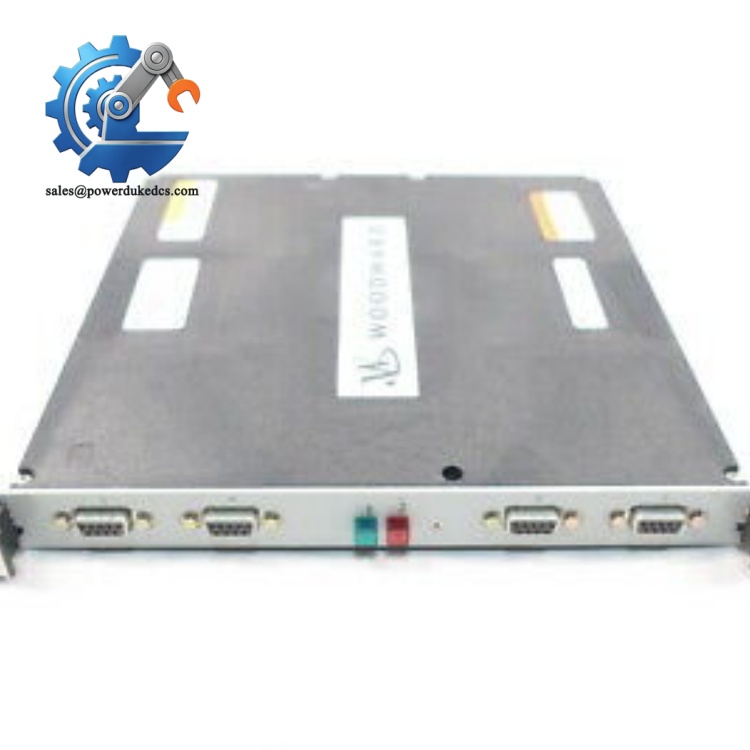

- Model & Brand: Woodward 5466-1115 MicroNet Digital Controller High-Density I/O Combo Module. This module is part of the MicroNet control platform and provides combined speed sensing and analog I/O functions for turbine control applications.
- Product Type: High-Density Speed / Analog I/O Combo Module.
- Series: Woodward MicroNet Digital Control.
- Typical Application: Steam turbine control systems, MicroNet Plus systems, and 5009FT TMR control configurations.
- Accuracy Class: Standard accuracy version, primarily used for steam turbine markets.
- Physical Dimensions (Approximate W × H × D): Approximately 35 × 260 × 160 mm (1.4 × 10.2 × 6.3 in.) as a single rack module.
- Estimated Shipping Weight: Approximately 0.8–1.5 kg (1.8–3.3 lb) including ESD packaging.
- Mounting Type: MicroNet chassis slot installation with field terminal modules (FTMs) and dedicated cables.
- What’s in the Box:
- Woodward 5466-1115 I/O module
- Backplane connector interface
- Module identification label
- Anti-static shielding bag
- Documentation when supplied
Product Introduction
The Woodward 5466-1115 installs inside a MicroNet chassis where signal integrity, connector condition, and cabinet environmental control directly affect turbine control performance. Inspect the card-edge connector before insertion. Check the retaining hardware and FTM connections carefully (poor contact resistance can create intermittent speed or analog signal faults during operation).
This module provides a combination of speed inputs and analog input/output channels for MicroNet control systems. The 5466-1115 is a standard-accuracy Speed/Analog I/O Combo module and is commonly associated with steam turbine applications, while the 5466-1105 is the high-accuracy alternative used in applications requiring tighter performance. Verify GAP software compatibility and terminal module requirements before replacement.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Woodward |
| Model Number | 5466-1115 |
| Product Family | MicroNet Digital Control |
| Product Type | High-Density Speed/Analog I/O Combo Module |
| Accuracy Class | Standard Accuracy |
| Typical Market | Steam Turbine Control |
| Speed Inputs | 4 MPU speed inputs |
| Analog Inputs | 12 channels |
| Analog Input Range | 0–5 VDC or 0–25 mA selectable |
| Analog Input Resolution | 16-bit |
| Analog Input Isolation | 500 Vrms galvanic isolation to earth/control common |
| Analog Outputs | 4 channels |
| Analog Output Range | 4–20 mA / 0–25 mA |
| Analog Output Resolution | 14-bit |
| Output Accuracy | Approximately 0.2% of full scale |
| Update Time | 5 ms |
| Communication | MicroNet backplane communication |
| Operating Temperature | Approximately -15°C to +65°C |
| Humidity | Up to 95% RH non-condensing |
| Installation | MicroNet chassis slot |
| Weight | Approx. 0.8–1.5 kg |
- Woodward 5466-1115
Global Compliance & Industry Certifications
Expected compliance considerations for the Woodward 5466-1115 include:
- CE Mark / EMC Compliance — applicable for approved MicroNet system installations.
- CSA Certification — referenced within the MicroNet product family compliance information.
- ATEX/IECEx — verify the complete installed control system. The module itself should not be considered a standalone hazardous-area device.
- Marine Approvals (DNV GL / LRS) — possible for specific MicroNet configurations; confirm the exact system certification package.
- RoHS Compliance — verify by manufacturing revision and OEM documentation.
For turbine control I/O modules, certification depends on the complete chassis, power supply, wiring, enclosure, and application design.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Store the 5466-1115 inside the original anti-static (ESD) shielding bag. The edge connector fingers and analog circuitry are sensitive to contamination and electrostatic discharge.
Maintain warehouse humidity below 60% RH whenever possible. Moisture exposure can accelerate oxidation on connector contacts and degrade PCB protection layers.
Before installation after long storage:
- Inspect the card edge connector under proper lighting.
- Check PCB surfaces for dust, corrosion, or contamination.
- Confirm FTM type and cable compatibility.
- Verify GAP/Coder software compatibility.
- Perform a controlled power-up test before connecting turbine signals.
Do not stack modules directly on top of each other without ESD protection.
Physical Installation Prerequisites
- Install only in the compatible Woodward MicroNet chassis.
- Confirm the correct slot assignment before insertion.
- Remove chassis power before replacing the module.
- Verify FTM model and cable part numbers before commissioning.
- Maintain cabinet grounding and shielding practices.
- Keep analog signal wiring separated from high-current switching circuits.
- Provide adequate cabinet airflow.
- Leave approximately 50 mm clearance around ventilation paths where practical.
- Secure module retaining hardware after installation.
- Confirm signal scaling and channel assignments before startup.
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the Woodward 5466-1115?
A: Industrial control I/O modules are commonly reviewed under HS 8537 or HS 8538, depending on customs interpretation of whether the item is a complete control apparatus or a component.
Q: Does Country of Origin (COO) affect importing the 5466-1115?
A: Yes. COO affects customs clearance, duty assessment, supplier qualification, and maintenance traceability. Keep COO information consistent across the invoice, packing list, and asset records.
Q: Is shipping insurance recommended for this MicroNet module?
A: Recommended. The module contains precision analog circuits and edge connectors. Shock, moisture, or ESD exposure during transportation may create failures that appear only after installation.
Q: Does the Woodward 5466-1115 include the latest firmware pre-loaded?
A: The module does not function as a standalone programmable controller. Compatibility depends on MicroNet system software, GAP application configuration, and connected FTMs. Confirm software revision and hardware compatibility before replacement.
Lifecycle Note: Manage the Woodward 5466-1115 as a controlled turbine spare. Store the module together with its FTM references, cable information, GAP software version, and chassis slot assignment. The hardware alone is only one part of a successful MicroNet restoration process.
