- Woodward 5466-409 | Original MicroNet Digital Control Unit
2. Unboxing & Physical Snapshot
- Model & Brand: Woodward 5466-409 MicroNet Pentium CPU Module. This module is part of the Woodward MicroNet Digital Control platform and functions as a CPU processing module for industrial turbine and prime mover control systems.
- Product Type: CPU Processor Module.
- Series: Woodward MicroNet Digital Control.
- Processor: Pentium-class CPU, 233 MHz.
- Memory: 64 MB RAM.
- System Configuration: Simplex operation; installed in the expansion rack with required transceiver hardware for MicroNet systems.
- Physical Dimensions (Approximate W × H × D): Approximately 130 × 260 × 35 mm (5.1 × 10.2 × 1.4 in.) including board and mounting bracket (verify against installed chassis revision).
- Estimated Shipping Weight: Approximately 0.5–1.0 kg (1.1–2.2 lb) including ESD packaging.
- Communication Interfaces: Ethernet and RS-232 serial ports.
- What’s in the Box:

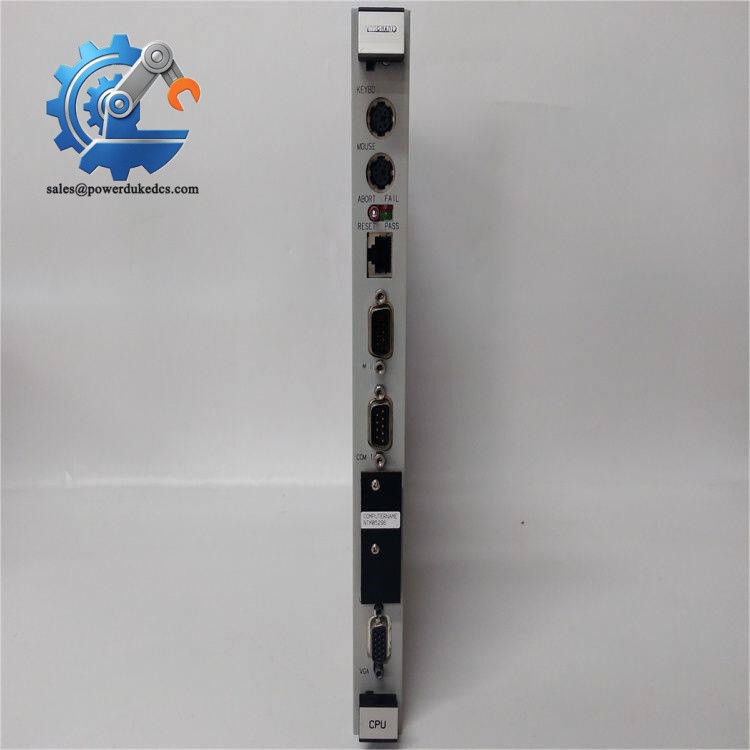

- Woodward 5466-409 CPU module

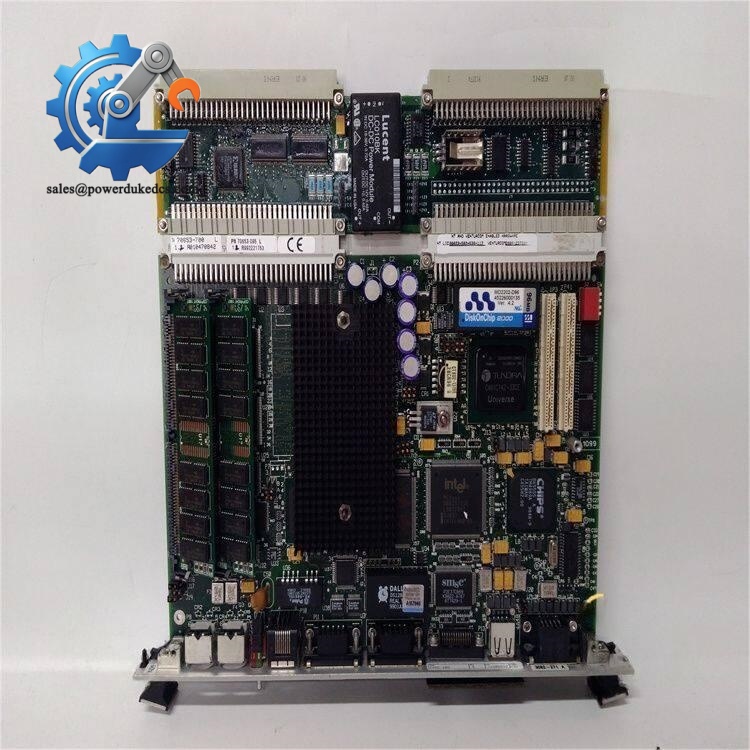

- PCB assembly with connector interface
- Protective anti-static packaging
- Module identification label
- Documentation when supplied
3. Product Introduction
The Woodward 5466-409 mounts inside a MicroNet control chassis where processor stability, connector integrity, and cabinet conditions directly affect turbine control availability. Keep the edge connectors clean. Inspect retaining hardware before installation because vibration and contamination can interrupt communication between the CPU and the MicroNet backplane (a common concern in rotating equipment environments).
This Pentium CPU module provides the computing platform for MicroNet digital control applications, typically running Woodward AppManager-based application software. The 5466-409 is designed for simplex systems rather than redundant CPU operation, so replacing it with a visually similar processor module without checking system architecture can create configuration problems.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Woodward |
| Model Number | 5466-409 |
| Product Family | MicroNet Digital Control |
| Product Type | Pentium CPU Module |
| Processor Speed | 233 MHz |
| RAM Capacity | 64 MB |
| System Configuration | Simplex |
| Application Software | Woodward AppManager compatible |
| Chassis Installation | Expansion rack |
| Communication Ports | Ethernet, RS-232 |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | Verify by installation manual |
| Standards | CE EMC, LRS, DNV referenced |
| Cooling Method | Cabinet forced/natural airflow depending on chassis |
| Weight | Approx. 0.5–1.0 kg |
Woodward 5466-409
5. Global Compliance & Industry Certifications
Expected compliance considerations for the Woodward 5466-409 include:
- CE Mark / EMC Compliance — referenced for MicroNet CPU module applications. This confirms electromagnetic compatibility requirements when installed in the approved system configuration.
- DNV / LRS Marine Recognition — referenced for applicable MicroNet system configurations.
- UL/cUL — verify for the exact hardware revision and installed system configuration.
- ATEX/IECEx — not considered a standalone hazardous-area certified processor module. Hazardous-area suitability depends on the complete certified control installation.
- Marine Approvals — verify exact cabinet/system certification before marine deployment.
For turbine control processors, certification depends heavily on the complete MicroNet chassis, power supply, I/O modules, and enclosure design.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
Store the 5466-409 in its original anti-static (ESD) shielding bag. The processor board and edge connectors are sensitive to electrostatic discharge and airborne contamination.
Maintain warehouse humidity below 60% RH. Moisture exposure can accelerate connector oxidation and degrade long-term PCB reliability.
Before installation after extended storage:
- Inspect edge connectors for oxidation.
- Check PCB surfaces for dust or contamination.
- Verify CPU module part number and revision.
- Confirm application software compatibility.
- Perform controlled power-up testing before connecting the turbine control system.
Avoid storing near battery charging rooms, chemical storage areas, or locations with frequent temperature cycling.
Woodward 5466-409
7. Physical Installation Prerequisites
- Install only in the compatible Woodward MicroNet chassis.
- Confirm simplex system architecture before replacement.
- Remove system power before inserting or removing the CPU module.
- Ensure correct backplane alignment before applying pressure.
- Verify Ethernet and RS-232 communication connections.
- Maintain cabinet airflow for processor cooling.
- Leave approximately 50 mm clearance around ventilation paths where practical.
- Ensure proper cabinet grounding and shielding practices.
- Confirm application software and configuration files are backed up.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the Woodward 5466-409?
A: Industrial CPU/control modules are commonly reviewed under HS 8537 or HS 8538 depending on customs interpretation of the complete control function versus component classification.
Q: Does Country of Origin (COO) affect importing the 5466-409?
A: Yes. COO affects customs clearance, duty treatment, warranty traceability, and asset records. Keep the invoice, packing list, COO document, and module label information consistent.
Q: Is shipping insurance recommended for this CPU module?
A: Recommended. The module contains processor electronics, memory devices, and connector contacts that can be damaged by impact, moisture, or ESD exposure during transportation.
Q: Does the Woodward 5466-409 include the latest firmware pre-loaded?
A: The module contains embedded CPU hardware, but application software and configuration depend on the installed MicroNet system. Verify software revision, application files, and system compatibility before commissioning.
Lifecycle Note: The Woodward 5466-409 should be stored with its MicroNet chassis information, application software records, and hardware revision details. CPU replacement without matching system documentation can significantly extend turbine control recovery time.
