Woodward 9907-838 | Traceable Power Generation Asset

1. Woodward 9907-838 | Traceable Power Generation Asset

Unboxing & Physical Snapshot

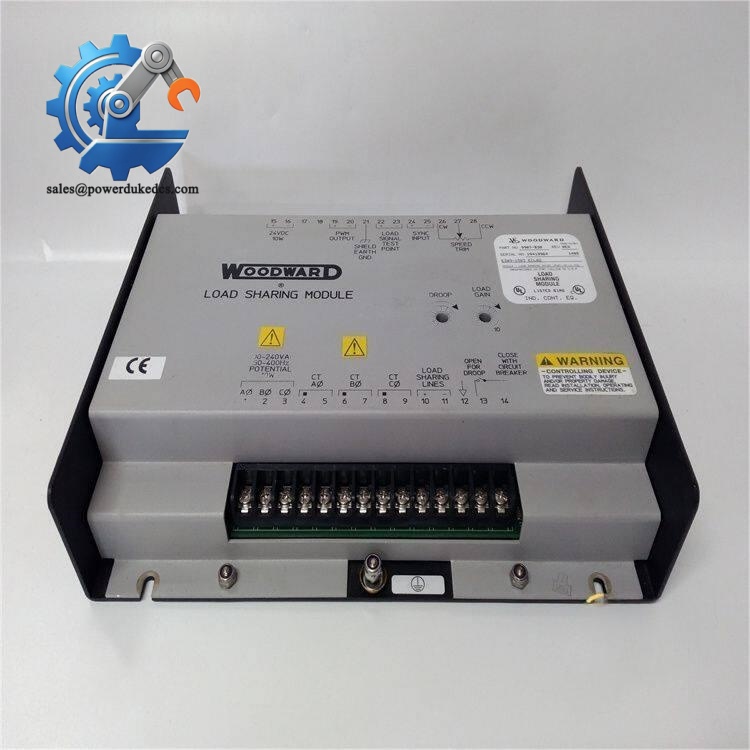

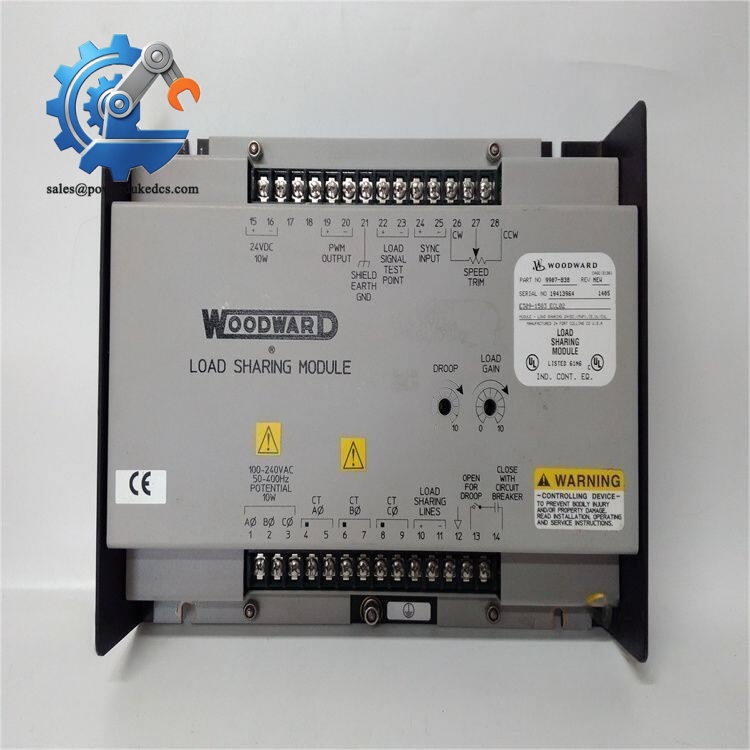

• Model & Brand: Woodward 9907-838
• Product Type: Load Sharing Module (LSM)
• Series: Woodward 9907 Series
• Application: Generator set load-sharing accessory used with engine speed controls. The module provides isochronous and droop load-sharing capability for generator applications, including systems using Caterpillar digital controls and Woodward-compatible governor equipment.
• Power Supply: 18–32 VDC nominal 24 VDC supply.
• Input Type: PWM/Caterpillar compatible load-sharing configuration.
• Approximate Physical Dimensions (W × H × D):
  • 273.6 × 59.2 × 214.1 mm
  • Approximate enclosure size based on Woodward LSM documentation.
• Estimated Shipping Weight: Approximately 1.4 kg unit weight; export packaging typically increases freight weight.
• What’s in the Box:
  • Woodward 9907-838 Load Sharing Module
  • Terminal connection interface
  • Mounting hardware (if supplied)
  • Product identification label
  • Anti-static protective packaging
  • Documentation when supplied with controlled inventory

Product Introduction

The 9907-838 is installed inside generator control panels where multiple prime movers must share electrical load accurately. It measures generator power conditions and produces control signals that allow compatible speed controls to maintain balanced load distribution. Both isochronous and droop load-sharing modes are supported, which makes the module suitable for parallel generator operation.

Treat this module as a power-generation control component, not a simple signal converter. Inspect the terminal block, enclosure mounting points, adjustment controls, and internal connectors before installation. Incorrect CT/PT wiring or mismatched governor settings can create unstable load sharing that may be misdiagnosed as hardware failure.

Core Technical Specifications

Woodward 9907-838

Global Compliance & Industry Certifications

Expected compliance considerations for the Woodward 9907-838 include:

• CE Mark
• UL/cUL Listed Industrial Control Equipment (UL508)
• EMC compliance according to applicable industrial standards
• ATEX/IECEx: Not typically applicable for the standalone module unless installed within a certified hazardous-area control package.
• Marine approvals: May apply only when included in an approved marine generator control system.

The UL/cUL listing is significant because generator control equipment operates near high-energy electrical systems. Certification confirms evaluation against industrial control equipment safety requirements when installed according to manufacturer instructions.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Keep the 9907-838 inside its original anti-static ESD shielding bag until installation. Protect terminal pins and adjustment components from contamination.
• Maintain warehouse humidity below 60% RH to minimize oxidation of connectors and internal circuit surfaces.
• Store the module away from vibration sources and corrosive atmospheres that may affect PCB assemblies.

Check the adjustment settings.

For long-term generator spares, record the original wiring configuration, connected governor model, and load-sharing settings. A physically identical replacement may require application verification before returning a generator set to service.

Physical Installation Prerequisites

• Install the 9907-838 inside a protected generator control cabinet.
• Mount on a rigid panel surface with sufficient mechanical support.
• Connect protective earth according to the generator control panel design.
• Verify CT polarity and PT voltage inputs before startup.
• Keep power wiring separated from low-level analog and synchronization signals.
• Maintain cabinet airflow and leave approximately 50 mm clearance around ventilation areas where practical.
• Confirm 18–32 VDC supply polarity before energizing.
• Verify governor compatibility and load-sharing adjustment settings.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the Woodward 9907-838?
A: Generator control modules are commonly reviewed under HS 8537.10 for electrical control apparatus. Final classification depends on the exact function, voltage rating, and customs interpretation.

Q: Why does Country of Origin (COO) documentation matter for this module?
A: COO supports customs clearance, generator maintenance records, and industrial asset traceability. The COO should match the commercial invoice, packing list, and product identification records.

Q: Is shipping insurance recommended for the 9907-838?
A: Yes. The module contains electronic circuitry, connectors, and precision adjustment components. Use ESD protection, moisture control packaging, and impact-resistant freight packing.

Q: Does the Woodward 9907-838 include the latest firmware pre-loaded?
A: No. The 9907-838 is an analog load-sharing module and does not contain application firmware. Configuration is performed through hardware adjustments and the connected generator control system.
