Description

• Brand: ABB
• Full Model Number: DSTS106 / 3BSE007287R1
• System/Series Family: ABB Advant OCS / Advant Controller 110
• One-Sentence Core Function: Trigger pulse generator card with an integrated backup regulator for Advant control-system applications
• Top 3 Hardcore Specs: 24 VDC rated voltage; trigger pulse generation; integrated backup regulator
• Stock Status: New Surplus / Fully Tested Refurbished — exact part number and physical condition verified before shipment

Module 3: Commercial-Technical Deep Dive

A failed trigger-pulse card can interrupt a control function even when the main Advant controller and surrounding I/O remain operational. ABB identifies DSTS 106, part number 3BSE007287R1, as a trigger pulse generator card with backup regulator, with a rated voltage of 24 VDC. ABB’s own spare-parts material lists the exact part number under Advant MOD, and ABB identifies DSTS 106 within its legacy Advant control-system spare-parts portfolio.

The useful engineering distinction is that this is a dedicated pulse-generation module rather than a generic digital output card. The integrated backup regulator is part of the specified design, so a replacement should preserve both the trigger-generation function and the regulator arrangement. Public specifications also identify dimensions of approximately 252 × 153 × 36 mm and a net weight of about 0.3 kg. Exact pulse timing, output levels, connector assignment, and application-specific limits should be taken from the installed Advant documentation rather than inferred from the generic product family.

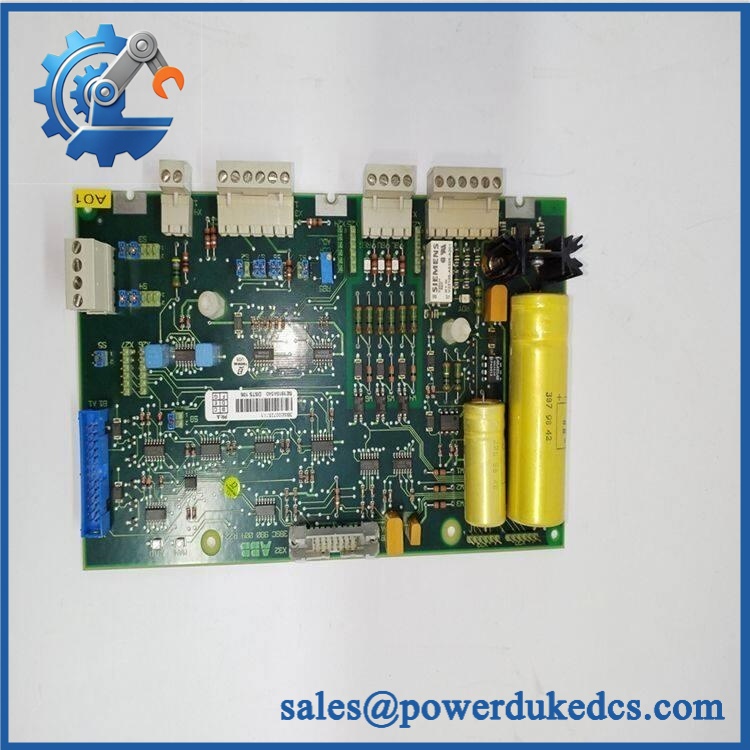

ABB DSTS106 3BSE007287R1

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: Configuration-specific replacement for the ABB Advant control-system family.
• Functional category: Trigger pulse generator card with integrated backup regulation, not a standard digital output module.
• Firmware requirement: No dedicated firmware flash is normally associated with the card itself. Record the controller and application revision before replacement.
• Logic rewrite: A verified like-for-like replacement should not normally require application-logic changes; validate the pulse-generating function after installation.
• System context: Current references associate DSTS 106 with the Advant Controller 110 family. Confirm the exact rack, node, and companion hardware before ordering.

⚠️ Field Traps (Watch Out)

• 24 VDC verification: The published rating is 24 VDC. Do not apply an assumed voltage simply because another Advant module uses a similar connector or rack position.
• Pulse-output validation: A successful power-up does not prove that the trigger outputs are correctly timed or switching at the required level. Test the actual pulse path with appropriate instrumentation.
• Backup-regulator inspection: Because the backup regulator is part of the specified card function, inspect the associated regulation circuitry for overheating, capacitor deterioration, or previous overvoltage damage.
• Connector and backplane handling: Photograph all connections and card orientation before removal. Use ESD-safe handling throughout extraction, bench inspection, and installation.

Module 5: Quality Assurance SOP

Our pre-shipment inspection for an ABB DSTS106 3BSE007287R1 focuses on exact identity, regulator condition, and trigger-pulse performance:

1. OEM anti-counterfeit visual inspection — verify ABB identification, DSTS 106 designation, complete 3BSE007287R1 part number, revision markings, labels, PCB artwork, and connector population.
2. Part-number capture — photograph the front, rear, labels, and secondary identification markings.
3. Revision verification — compare the physical revision with the customer’s removed module or supplied photographs.
4. PCB condition inspection — check solder joints, connectors, board contamination, corrosion, damaged components, and evidence of thermal stress.
5. Backup-regulator inspection — examine the regulator section and associated components for visible deterioration or overheating.
6. Power-on self-test (POST) — apply a controlled 24 VDC supply and monitor startup current, status behavior, and abnormal heating.
7. Supply-rail verification — measure the relevant regulator outputs under controlled test conditions and compare them with applicable ABB service documentation.
8. Trigger-pulse verification — use an oscilloscope or equivalent calibrated instrument to confirm pulse presence, repetition behavior, amplitude, and stability for the supported test configuration.
9. Load test — where the approved test fixture supports it, test the trigger outputs against a representative load without exceeding specified electrical limits.
10. Controller handshake verification — install the card in a compatible Advant test environment where available and verify expected controller-side recognition and functional operation.
11. Extended observation — operate the module for a controlled period while monitoring regulator temperature and pulse stability.
12. Final QC record — document part number, revision, supply measurements, waveform observations, test equipment, and inspection photographs.
13. ESD packaging — use antistatic protection, connector guards, mechanical cushioning, and moisture protection before shipment.

ABB’s own spare-parts listings identify 3BSE007287R1 as DSTS 106 TRIGGER PLS GEN, while other technical references specify the 24 VDC rating and integrated backup regulator.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB DSTS106 3BSE007287R1 obsolete, and how do I verify authenticity?

DSTS 106 is a legacy ABB Advant-series spare part. ABB itself has listed 3BSE007287R1 as a DSTS 106 trigger pulse generator in its Advant spare-parts material. Authenticity should be checked from the complete ABB part number, board markings, revision identifiers, serial information, and physical PCB construction.

2. Can the DSTS106 be hot-swapped?

Do not assume live removal is permissible. The card operates from a 24 VDC supply and performs a timing-critical control function. Follow the applicable ABB maintenance instructions and the site’s approved LOTO procedure before removing the module unless the installed system documentation explicitly authorizes energized replacement.

3. What is the rated voltage of 3BSE007287R1?

The published specification identifies a 24 VDC rated voltage. Verify the actual rack wiring and module label before energization; do not infer the supply solely from the family name.

4. What does the backup regulator do?

The backup regulator is an integral part of the DSTS 106 card specification. It supports the card’s intended control-system operation, but the exact regulator topology and alarm behavior should be verified from the applicable ABB schematic or service documentation rather than assumed from a generic description.

5. What warranty and technical support should I expect?

Warranty duration should be stated on the quotation for the exact physical unit supplied. Technical support should cover part-number verification, revision matching, 24 VDC supply checks, trigger-pulse testing, installation guidance, and documented pre-shipment results. It should not substitute for Advant control-system engineering or site commissioning.
