ABB LDMTR-01 Genuine OEM Measuring Transducer Fast Shipping

Description

Module 2: The 10-Second Procurement Snapshot

• Brand: ABB
• Full Model Number: LDMTR-01
• Part Number: 63940135 / 63940135F
• Lifecycle Status: Legacy / availability subject to stock
• Core Function: Electrical measurement and signal conversion in ABB drive systems
• Top Technical Specs: Measuring transducer board; isolated measurement signals; industrial drive application
• Related Reference: 3BHB007445P0001
• Stock & Condition: New / used stock may be available; condition confirmed before shipment
• Typical Dispatch: Stock-dependent; confirm before PO release

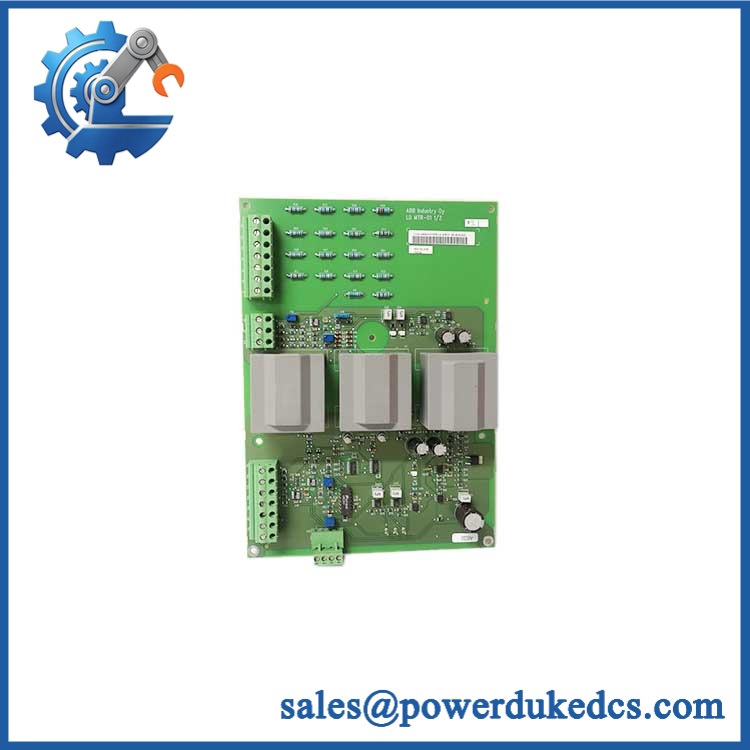

Available technical records identify LDMTR-01 as an ABB Measuring Transducer Board (MTR) and associate it with references including 63940135F and 3BHB007445P0001.

Module 3: Supply Chain & Technical Deep Dive

A failed measuring-transducer board can stop an ABB drive even when the main power section remains healthy. That creates an awkward procurement problem: the required board may be an older drive component with limited current production support. LDMTR-01 is identified as a measurement interface board for ABB industrial drive equipment, handling electrical measurement signals between the power circuit and control electronics.

The investment case is mainly about downtime avoidance, not component cost alone. A direct replacement board can preserve the existing drive architecture and avoid an unnecessary migration project (although exact equipment compatibility must be checked against the installed drive BOM). Available records associate the board with 63940135F, 63940135, and 3BHB007445P0001. Because published specifications from different sources conflict, unverified figures such as supply voltage, temperature range, or communication protocol should not be used for engineering approval.

Module 4: Migration, Compatibility & Field Traps

Replacement Matrix

⚠️ Field Traps

Part-number revision mismatch.
Do not treat 63940135 and 63940135F as automatically interchangeable. The suffix can identify a hardware revision or manufacturing variant. Photograph the existing board label before ordering.

Measurement circuit mismatch.
This board sits in a measurement path. Incorrect wiring can produce false current or voltage feedback and may prevent the drive from starting correctly. Mark every connector before removal.

ESD handling.
Use an ESD wrist strap and grounded work surface. Do not touch exposed PCB contacts with bare fingers.

One more practical check: inspect the mating connector before installing the replacement. Oxidized or damaged contacts can make a good spare look defective after startup.

ABB LDMTR-01

Module 5: Quality Assurance & Testing SOP

Our pre-shipment process should treat this component as a measurement board, not simply as a boxed spare.

1. Identity and Visual Inspection

• Verify ABB manufacturer marking.
• Match LDMTR-01 against the purchase order.
• Record the complete part number and revision.
• Compare serial or batch information where available.
• Inspect PCB condition under magnification.
• Check connectors for bent or oxidized contacts.
• Check for corrosion, heat marks, cracked solder joints, or repair traces.
• Perform an OEM marking and anti-counterfeit visual inspection.

2. Electrical Inspection

• Check connector continuity where applicable.
• Inspect isolated measurement circuits.
• Check for obvious short circuits between relevant power and signal paths.
• Compare board configuration against the supplied reference unit.
• Record all measured values in the inspection report.

No guessed acceptance limits. Test limits should follow the applicable ABB equipment manual or engineering test procedure.

3. Power-On Functional Test

When a compatible ABB test system is available:

• Install the board into the correct test assembly.
• Apply the specified control power.
• Observe startup behavior.
• Check RUN/ERR/diagnostic indications, where provided.
• Confirm that the measurement channel is recognized.
• Verify signal response against the approved test setup.

4. Signal and Load Testing

For a measuring transducer board, the important question is whether the measurement chain behaves correctly.

The test record should cover:

• Input signal response
• Output signal response
• Isolation behavior
• Zero/reference condition
• Response under simulated operating conditions
• Fault indication, where supported

Actual I/O load testing is performed only where the board and test rack provide applicable I/O functions.

5. Final QA

• Record test date.
• Record technician.
• Attach inspection photographs.
• Record serial number or board revision.
• Apply QC status label.
• Seal the board in ESD packaging.
• Use impact-resistant outer packaging.

A customer can request the available inspection photos and test report before shipment.

Module 6: Procurement-Driven FAQ

1. Is ABB LDMTR-01 actually in stock, and what is the cutoff for overnight shipping?

Stock status changes by condition and warehouse. Current supplier records show inventory listings, including new and used options, but an exact quantity should be confirmed before the PO is released.

For overnight dispatch, confirm three points:

1. Physical stock location
2. Payment/PO cutoff time
3. Carrier collection time

Do not rely on a generic “in stock” label.

2. How do you verify the condition of an obsolete or surplus ?

Every unit should be checked against its physical ABB identification before shipment.

The inspection covers the board label, part number, connectors, PCB condition, corrosion, repair marks, and electrical condition. For tested units, the inspection record should also show the test date and results.

New, surplus, used, and refurbished are separate commercial conditions. The quotation should state the actual condition.

3. What warranty and return terms apply if the board is defective?

Warranty coverage should be stated on the quotation or sales order before payment. A typical industrial spare-parts process includes a defined warranty period, serial-number traceability, and an inspection procedure for reported failures.

For a defective unit, retain the packaging, product label, and installation records. Do not open or modify the board before contacting the supplier, since unauthorized modification can affect the warranty assessment.

4. Could firmware compatibility cause problems with this replacement?

Firmware is not the main documented characteristic of this board, but hardware revision compatibility still matters.

Before replacement, photograph the old board and record:

• Complete part number
• Revision suffix
• Serial/batch number
• Host drive model
• Existing drive configuration

If the replacement has a different hardware revision, obtain engineering confirmation before installation.

5. Can I use another ABB board as a substitute?

Not without verification.

is associated with specific ABB drive measurement functions. A visually similar board may have different signal scaling, isolation, connector assignment, or circuit behavior.

For a critical production drive, an exact documented cross-reference is preferable to a “looks compatible” substitution.
