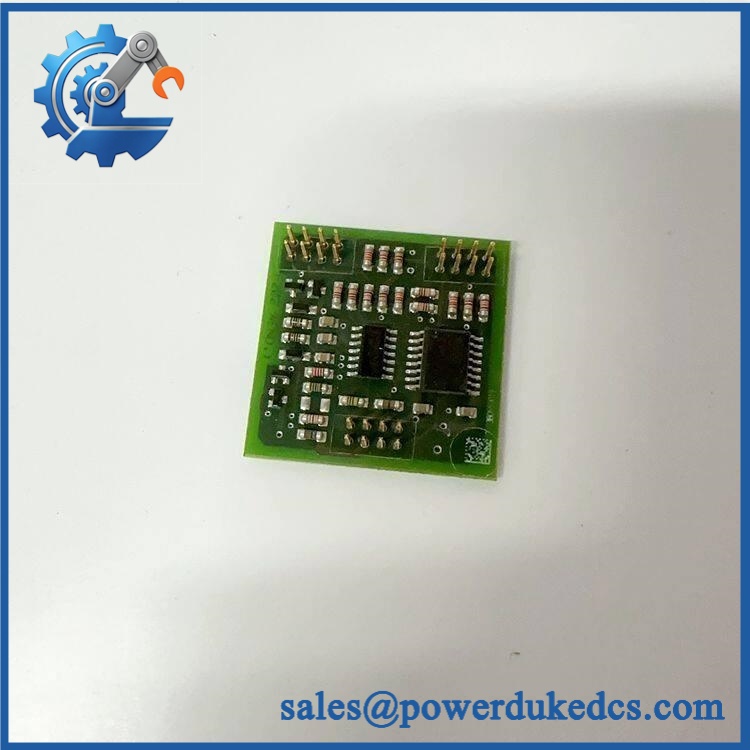

ABB XVC767AE105 3BHB007209R0105 | Genuine OEM Power Board

Description

Module 2: The 10-Second Procurement Snapshot

• Brand: ABB
• Full Model Number: XVC767AE105 3BHB007209R0105
• Lifecycle Status: Legacy / stock-dependent
• Core Function: IGCT gate-drive control for high-power converters
• Top 3 Technical Specs: IGCT gate driver; fiber-optic control interface; high-voltage power-electronics application
• Product Type: IGCT Gate Drive Unit / Power Electronics Board
• Stock & Condition: New or tested stock subject to availability
• Reported Weight: Approx. 1,000 g in one current supplier record
• Related Application: ABB medium-voltage drives and power-conversion equipment

Current technical listings identify this reference as an ABB IGCT gate-drive unit board, while another supplier describes it more generally as an ABB frequency-converter spare part. The fiber-optic interface and IGCT drive function are reported by the more detailed technical listing.

Module 3: Supply Chain & Technical Deep Dive

When an ABB high-power converter loses its gate-drive board, the problem is rarely solved by replacing an ordinary control card. The gate-drive circuit directly controls the switching behavior of the associated IGCT power semiconductor. XVC767AE105 3BHB007209R0105 is identified as an IGCT gate-drive board, with fiber-optic control signaling used for electrical isolation between control and high-power sections.

The TCO case is straightforward: preserving an existing power-converter platform can avoid a much larger migration cost when the rest of the system remains serviceable. Published supplier data mentions control power such as ±15 V and +5 V and a typical temperature range of -25°C to +70°C, but these figures are application-dependent and must not be treated as universal ratings for every installation. For a critical drive, verify the exact IGCT assembly and board revision before releasing the purchase order.

Module 4: Migration, Compatibility & Field Traps

Replacement Matrix

⚠️ Field Traps

IGCT pairing mismatch.
A gate-drive board is not a generic driver. Its gate-current characteristics and protection behavior must match the specific semiconductor assembly. The available technical description explicitly states that the board is designed for specific ABB IGCT series and specifications.

Fiber-optic connection errors.
Before removal, photograph every optical connection. Keep transmitter and receiver paths correctly identified. A reversed or poorly seated fiber can prevent the power stage from responding even when the replacement board itself is functional.

Auxiliary power verification.
Do not apply a guessed control voltage. Published supplier information gives example auxiliary supplies, but also states that the actual requirement depends on the application.

ESD protection matters.
Use an ESD wrist strap and grounded work surface. Handle the PCB by its edges.

ABB XVC767AE105 3BHB007209R0105

Module 5: Quality Assurance & Testing SOP

1. Incoming Identity Check

• Verify ABB marking.
• Confirm XVC767AE105.
• Confirm 3BHB007209R0105.
• Record revision and serial information where available.
• Compare the board against approved reference photographs.
• Inspect connectors and fiber-optic interfaces.
• Check for corrosion, contamination, cracked components, or repair marks.
• Perform an OEM anti-counterfeit visual inspection.

2. PCB and Electrical Inspection

• Inspect solder joints and accessible components.
• Check connector condition.
• Verify relevant continuity points.
• Check for unintended shorts.
• Inspect auxiliary power input circuitry.
• Document all findings.

No arbitrary acceptance limits should be invented. Test values must follow the applicable ABB equipment documentation.

3. Power-On Test

Using a compatible ABB power-electronics test assembly:

1. Install the board correctly.
2. Apply the specified auxiliary supply.
3. Observe startup behavior.
4. Check available RUN/ERR/diagnostic indicators.
5. Confirm the board initializes correctly.
6. Verify controller feedback.
7. Check the fiber-optic signal path.

4. Gate-Drive Functional Test

Where the approved test system permits:

• Verify gate-drive command reception.
• Check optical transmit/receive paths.
• Verify gate-drive response.
• Check protection feedback.
• Simulate applicable fault conditions.
• Confirm normal status feedback.

Do not perform a live high-voltage IGCT switching test without the correct ABB test fixture and qualified personnel.

5. Final QA

• Record board part number.
• Record revision.
• Record serial number.
• Attach inspection photographs.
• Record test results.
• Apply QC status.
• Seal in ESD-safe packaging.
• Use shock-resistant outer packaging.

For customer approval, the supplier can provide available product photographs and the applicable test record before shipment.

Module 6: Procurement-Driven FAQ

1. Is ABB XVC767AE105 3BHB007209R0105 actually in stock, and what is the overnight shipping cutoff?

Current supplier records show this reference as available from certain inventory sources, with one listing stating “in stock” and ready for shipment. Availability changes by warehouse and condition, so physical stock should be confirmed before the PO is released.

For overnight dispatch, confirm:

1. Physical stock location
2. Payment or PO cutoff
3. Carrier pickup time
4. Destination service availability

2. How do you verify the condition of a legacy or surplus gate-drive board?

The inspection should start with the physical ABB identification.

We verify the complete part number, revision, serial or batch information where available, PCB condition, connectors, optical interfaces, and signs of previous repair. For tested stock, the test record should identify what was actually checked.

New surplus, used, and refurbished units should never be quoted as the same condition.

3. What warranty applies if the board fails after installation?

Warranty terms should be stated on the quotation and sales order before purchase. A current supplier listing advertises a 12-month warranty, but that is a supplier warranty rather than evidence of an ABB factory warranty.

If a failure occurs, retain the original packaging, label, serial information, installation records, and fault codes. Do not modify the PCB before the supplier completes its inspection.

4. Are there firmware compatibility issues engineers should check?

For this particular component, the more important concern is hardware and power-stack compatibility, rather than treating it like a conventional PLC communication module.

Before replacement, record:

• Existing board part number
• Revision
• IGCT device/module reference
• Host converter model
• Fiber-optic connection arrangement
• Auxiliary supply configuration

If any of these differ, obtain engineering confirmation before installation.

5. Can I substitute another ABB XVC-series board?

Not automatically.

The available product data describes XVC767AE105 as a specific IGCT gate-drive unit. Another XVC-series board may serve a different semiconductor assembly or converter architecture.

For a production-critical converter, use the complete ABB part number and installed equipment BOM as the primary replacement criteria. A similar-looking board is not sufficient evidence of compatibility.
