ALSTOM 42011-106-00 A01 | ITC_VIOM_VIOC Control Board

Description

• Brand: ALSTOM
• Full Model Number: 42011-106-00 A01
• Board Designation: ITC_VIOM_VIOC VER.A01
• Lifecycle Status: Legacy / current OEM status not publicly confirmed
• Core Function: CASCO onboard I/O processor and control interface
• Top 3 Technical Specs: VIOC processor board | A01 hardware revision | VIOC_FCT_J1_V1.1.0 and VIOC_FCT_J2_V1.1.0 references reported
• System Category: Rail control and onboard electronics
• Stock & Condition: New surplus subject to physical verification; tested units available by request

A documented spare-parts procurement list identifies the 42011-106-00 A01 as a CASCO onboard I/O processor (VIOC) and associates it with VIOC_FCT_J1_V1.1.0 and VIOC_FCT_J2_V1.1.0. Other indexed listings identify the same part as an ALSTOM ITC_VIOM_VIOC industrial control circuit board.

Supply Chain & Technical Deep Dive

When a legacy rail control system loses a VIOC board, identifying the exact hardware revision becomes more important than simply matching the base part number. ALSTOM 42011-106-00 A01 is documented as a VIOC board for CASCO onboard I/O processing. The A01 revision and the associated VIOC software references should therefore be treated as part of the purchasing specification. A visually similar board with another revision can create commissioning delays or configuration conflicts.

The strongest TCO argument is continuity of the installed architecture. Replacing a failed processor board can preserve the existing cabinet, wiring, application configuration, and engineering documentation instead of forcing a wider control-system change. Public records support the VIOC identification and software references, but they do not provide enough authoritative engineering data to state processor speed, supply voltage, I/O count, or environmental ratings for this exact revision. Those values should be taken from the applicable ALSTOM or CASCO documentation before technical approval.

Migration, Compatibility & Field Traps

Replacement Matrix

Field Traps — Watch Out

Firmware and application mismatch: The 42011-106-00 A01 has been documented with VIOC_FCT_J1_V1.1.0 and VIOC_FCT_J2_V1.1.0 references. Confirm the installed software package before fitting a replacement.

Part-number truncation: Procurement records may show only 42011-106-00, while the physical board is marked A01 and ITC_VIOM_VIOC VER.A01. Require photographs of the nameplate and board labels before approving an equivalent.

ESD handling: Remove and install the board under the site’s approved ESD procedure. Do not handle exposed circuitry unnecessarily.

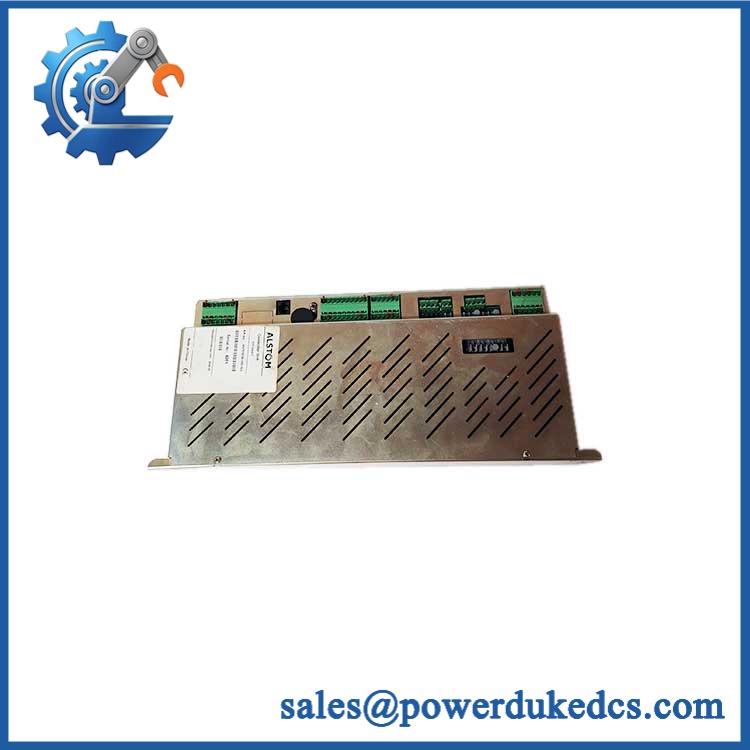

ALSTOM 42011-106-00 A01

Quality Assurance & Testing SOP

For a unit sold as tested stock, the pre-shipment procedure should include the following controls:

• OEM identification inspection: Verify ALSTOM marking, 42011-106-00, A01 revision, board designation, labels, connectors, and PCB construction.
• Anti-counterfeit visual inspection: Check label consistency, component placement, PCB finish, connector quality, fasteners, and signs of unauthorized rework.
• Physical condition inspection: Reject boards with corrosion, cracked connectors, damaged edge contacts, contamination, lifted components, or visible board damage.
• Firmware and revision record: Photograph and document all visible firmware, revision, and identification markings.
• Power-on self-test: Apply power through an approved test fixture and check startup behavior and available status indicators.
• I/O processor verification: Confirm processor startup and supported onboard I/O functions where the correct CASCO test environment is available.
• Communication testing: Verify the applicable backplane or system communication path using an approved test setup.
• I/O load testing: Exercise applicable input and output channels under controlled conditions where the test fixture supports the required loads.
• Extended run test: Monitor the unit during sustained operation for resets, abnormal heating, intermittent faults, or communication loss.
• Final QA record: Record part number, revision, serial data where present, test results, inspection findings, and shipping condition.

A full system-level test cannot be represented as complete unless the correct CASCO or ALSTOM test environment is available. The inspection report should clearly distinguish visual inspection, bench testing, and live system testing.

Procurement-Driven FAQ

Is ALSTOM 42011-106-00 A01 genuinely in stock, and what is the cutoff for overnight shipping?
Physical stock should be confirmed before the purchase order is released. Same-day dispatch depends on confirmed inventory and the destination carrier cutoff. Overnight transit is destination dependent and should be quoted separately.

How do you verify the condition of an obsolete or surplus 42011-106-00 A01?
Each unit should first pass identity and physical inspection. A tested unit should then receive power-up and functional checks using an appropriate test setup. Serial markings, revision data, and test results should be documented before shipment.

What warranty applies to a defective unit?
The quotation should state the warranty period, defect qualification process, RMA requirements, and available remedy before order acceptance. Warranty coverage should apply to verified hardware defects within the agreed terms.

Are there firmware compatibility issues engineers should check?
Yes. Confirm the board revision and installed VIOC software environment before replacement. The A01 unit has been documented with VIOC_FCT_J1_V1.1.0 and VIOC_FCT_J2_V1.1.0 references, so software matching should be treated as part of the replacement check.

What information should procurement provide for an exact replacement?
Provide the complete part number, A01 revision, board label, cabinet or vehicle system designation, connector details, quantity, and required delivery date. A clear nameplate photograph is especially useful for legacy ALSTOM boards.
