ALSTOM 029.148.924 | Surplus Industrial Control PCB

Description

• Brand: ALSTOM
• Full Model Number: 029.148.924
• System / Series Family: HMP industrial automation hardware
• Core Function: Industrial printed circuit board assembly with application-specific control circuitry
• Top 3 Hardcore Specs: PCB assembly / Part number 029148924 / HMP designation
• Part Type: Industrial PCB
• Model Reference: HMP 029.148.924
• Electrical Rating: Not reliably established from the part number alone
• Communication Protocol: Not reliably established from available documentation
• Stock Status: New Surplus / Factory Sealed — exact physical condition to be confirmed before quotation

A current industrial repair reference identifies 029.148.924 as an HMP PCB, with the model recorded as 029148924. The available public listing does not provide a detailed functional description beyond identifying it as an undescribed PCB.

Module 3: Technical Product Introduction

For an obsolete control cabinet, an unidentified PCB can be harder to replace than a clearly documented PLC module. The ALSTOM 029.148.924 is referenced as an HMP industrial PCB assembly, but available public technical evidence does not establish a sufficiently reliable application description, I/O count, voltage rating, processor type, or communication protocol. The part should therefore be identified by its complete number rather than assigned generic specifications that may belong to another HMP assembly.

The practical value of an exact replacement is preservation of the existing cabinet architecture. If the original equipment BOM, PCB label, and connector arrangement all identify 029.148.924, an identical assembly can potentially avoid redesigning the surrounding control hardware. However, the `/variant or revision information, firmware, connector pinout, and equipment-specific function should be verified from the installed system documentation before installation. —For this part number, documented identification takes priority over speculative technical data.

Module 4: Application Scenarios & Field Realities

• During maintenance of an HMP-based control cabinet, photograph the complete PCB marking before removal. Include secondary labels, revision codes, connector references, and the board’s physical rack position.
• When an existing controller has intermittent faults, inspect the 029.148.924 board together with its power supply and connected field wiring. A failed PCB may be the consequence of an upstream voltage transient, grounding issue, or external circuit fault.
• For older ALSTOM equipment with limited documentation, compare the physical assembly against the cabinet BOM and wiring drawings rather than identifying the board solely from its dimensions. Similar industrial PCBs can have completely different signal assignments.
• During an emergency replacement, preserve the original board’s jumpers, switches, connector arrangement, and configuration components. A visually identical replacement may still require the same hardware configuration as the removed unit.

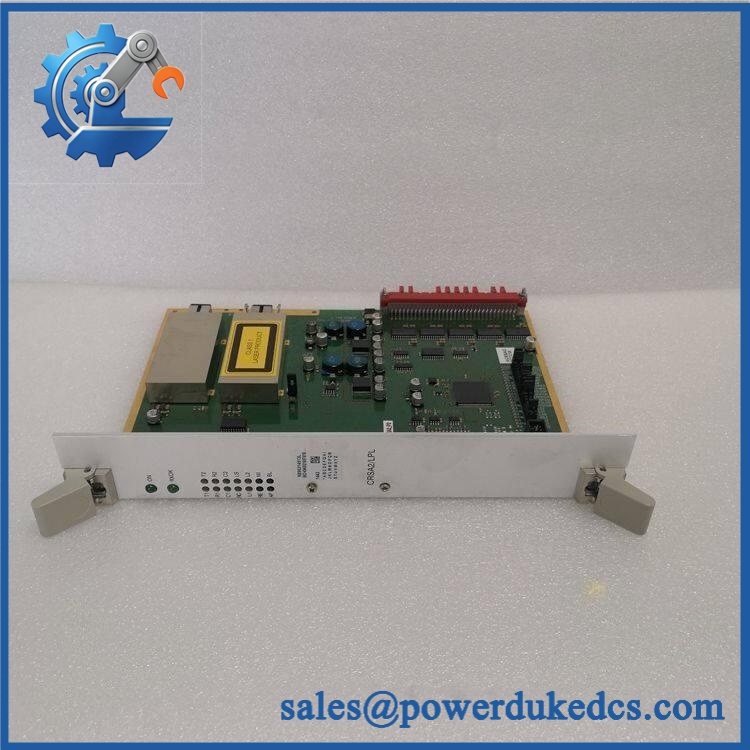

ALSTOM 029.148.924

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Traps — Watch Out

Do not shorten the part number: Maintain the exact procurement identifier 029.148.924. The available reference records the same model without punctuation as 029148924; both forms should be cross-referenced when searching documentation or inventory.

Unknown electrical limits: Publicly available information located for this exact part does not establish a reliable supply voltage or I/O specification. Do not energize the board based on assumptions from another ALSTOM or HMP PCB.

Connector mapping: Record every cable and connector position before removal. Physical connector compatibility does not prove identical pin assignments.

Revision control: Check all PCB revision markings in addition to 029.148.924. If the replacement has a different hardware revision, confirm equivalence from the applicable equipment documentation.

Failure-cause investigation: Before commissioning the replacement, check the associated power supply, grounding, cabinet temperature, and connected circuits. Replacing the PCB without addressing the initiating fault can result in another failure.

Module 6: Quality Assurance SOP

The pre-shipment inspection for an ALSTOM 029.148.924 should focus on exact identification, PCB condition, and controlled functional verification:

1. Part-number verification — Confirm the physical marking as 029.148.924 and record all visible ALSTOM/HMP identifiers, serial number, revision markings, and PCB assembly codes.
2. OEM anti-counterfeit visual inspection — Examine labels, PCB artwork, component markings, connectors, solder joints, manufacturing identifiers, and assembly markings for inconsistencies or unauthorized modification.
3. Mechanical inspection — Check the PCB substrate, mounting holes, edge contacts, connectors, terminal interfaces, and accessible components for cracks, deformation, corrosion, contamination, or impact damage.
4. Connector inspection — Examine each connector for bent contacts, damaged housings, oxidation, loose pins, contamination, or evidence of arcing.
5. PCB component inspection — Check capacitors, resistors, ICs, relays, transformers, and other visible components for swelling, discoloration, cracked packages, overheating, or previous repair work.
6. Power-on self-test (POST) — Where the correct HMP/ALSTOM test fixture and verified electrical specification are available, power the board under controlled conditions and inspect applicable RUN, fault, diagnostic, or status indications.
7. Circuit-level verification — Test applicable board functions against the equipment-specific test procedure. Do not apply assumed input or output levels when the exact electrical specification has not been established.
8. Communication handshake verification — If the installed system uses a communication interface on this PCB, verify the actual protocol and interface from the corresponding equipment documentation before performing the handshake test.
9. System-interface screening — Where a compatible test rack or simulator is available, verify the board’s expected interaction with the associated HMP control architecture.
10. Configuration cross-check — Compare the tested board against the customer’s supplied nameplate photograph, BOM, wiring information, and original PCB before dispatch.
11. Final inspection and packaging — Photograph the exact 029.148.924 identification, record inspection and test results, protect connectors and exposed contacts, apply appropriate ESD precautions, and package the board against mechanical shock and moisture.

The final QA record should connect the 029.148.924 identification, revision information, PCB condition, connector inspection, applicable functional testing, configuration verification, and packing record to the exact unit shipped. Public documentation for this specific number is limited, so the customer’s equipment documentation should be treated as the primary source for final application compatibility.
