- Bently Nevada 330130-080-00-CN | Hazard Area Approved Cable
2. Unboxing & Physical Snapshot

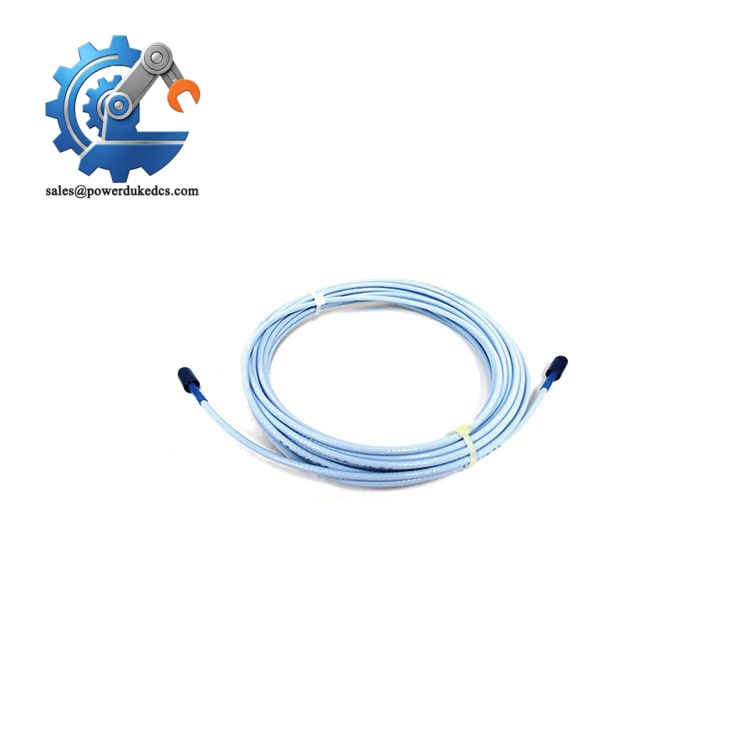

- Model & Brand: Bently Nevada 330130-080-00-CN 3300 XL Standard Extension Cable for proximity monitoring systems. This configuration specifies an 8.0 m cable length, standard cable construction, and CN approval option.
- Approximate Physical Dimensions:
- Cable length: 8.0 m (26.2 ft)
- Cable outside diameter: approximately 3.8 mm (0.15 in.)
- Minimum bend radius: approximately 25.4 mm (1.0 in.)
- Estimated Shipping Weight: Approximately 0.9–3.0 kg (2.0–6.6 lb) depending on packaging method and included protective materials.
- What’s in the Box:
- Bently Nevada 330130-080-00-CN extension cable
- Standard ClickLoc connector assembly
- Protective connector cap (when supplied)
- ESD-safe packaging
- Product identification label
- Certificate of Origin documentation when requested
3. Product Introduction
The 330130-080-00-CN installs between a compatible Bently Nevada proximity probe and Proximitor sensor as part of the 3300 XL proximity measurement chain. The 8-meter cable provides the required electrical length for accurate shaft displacement measurement while maintaining the calibrated characteristics of the complete transducer system (which is critical because probe, cable, and sensor lengths must match).
This is a precision signal cable, not a standard instrumentation lead. The triaxial construction, FEP insulation, and connector interface protect low-level displacement signals from interference in turbine, compressor, and rotating equipment environments. Inspect the gold-plated connector surfaces and cable jacket before installation. A small nick or contamination point can become a difficult-to-trace vibration monitoring issue.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330130-080-00-CN |
| Product Type | 3300 XL Standard Extension Cable |
| Application | Proximity vibration and displacement monitoring |
| Compatible System | Bently Nevada 3300 XL proximity transducer system |
| Cable Length | 8.0 m (26.2 ft) |
| Cable Construction | 75 Ω triaxial cable |
| Insulation Material | FEP (Fluorinated Ethylene Propylene) |
| Characteristic Impedance | 75 Ω ±2% |
| Typical Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Cable Diameter | Approximately 3.8 mm |
| Connector Type | Miniature coaxial ClickLoc connector |
| Connector Material | Gold-plated contacts |
| Pull Strength | Approximately 330 N (75 lbf) at connector interface |
| Power Supply Range | Approximately -17.5 to -26 VDC system supply |
| Operating Temperature | Approximately -51°C to +177°C |
| Mounting Method | Probe-to-Proximitor interconnection |
Bently Nevada 330130-080-00-CN
5. Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the Bently Nevada 330130-080-00-CN include:
- CE Mark compliance where applicable to the installed monitoring system
- ATEX/IECEx hazardous-area approvals depending on the complete approved configuration
- CN-specific approval option associated with this model designation
- CSA approvals where applicable to approved system configurations
- RoHS compliance depending on manufacturing revision
- Marine approvals such as DNV GL only when included in a qualified marine package
The hazardous-area certification is significant because proximity monitoring cables may be installed near turbines, compressors, and process equipment where explosive atmospheres can exist. The complete probe, cable, and Proximitor combination must match the approved certification requirements.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
Keep the extension cable sealed in its original packaging until installation. The ClickLoc connector and gold-plated contact surfaces should remain protected from dust, moisture, and mechanical impact.
Store below 60% relative humidity and avoid prolonged exposure to direct sunlight or chemical vapors. FEP insulation is durable, but contamination around the connector area can compromise signal integrity.
Inspect the cable before issuing it from inventory. Check the connector threads, protective caps, cable jacket, and bend points. Do not coil the cable tighter than the recommended bend radius (tight storage loops can create hidden conductor stress).
7. Physical Installation Prerequisites
- Install only with compatible Bently Nevada 3300 XL probes and Proximitor sensors.
- Maintain the required total system length specified by the monitoring application.
- Avoid sharp bends near the connector termination points.
- Keep the cable away from high-current power conductors where possible.
- Secure the cable route to prevent vibration-related fatigue.
- Verify connector engagement and locking condition before commissioning.
- Maintain cabinet grounding and shielding practices according to the monitoring system installation documentation.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the Bently Nevada 330130-080-00-CN?
A: This extension cable is generally evaluated under HS categories related to electrical cables, instrument wiring, or measuring equipment accessories. Classification varies by country because the cable is part of a specialized monitoring system. Confirm the final Harmonized System code with your customs broker before export.
Q: Does Country of Origin affect acceptance for machinery protection projects?
A: Yes. COO documentation affects customs clearance, supplier qualification, and project records. Some listings identify this cable family as manufactured in the USA, but the actual lot documentation should be verified against the shipping documents.
Q: Should shipping insurance be added for this cable assembly?
A: Recommended. Although the cable is lightweight, replacement delays can affect critical machinery monitoring systems. Use protective packaging around the connector ends because impact damage is usually concentrated at termination points.
Q: Does the 330130-080-00-CN include firmware pre-loaded?
A: No. This is a passive extension cable and contains no firmware or programmable electronics. Compatibility depends on the connected proximity probe, Proximitor sensor, and 3300 monitoring system configuration.
