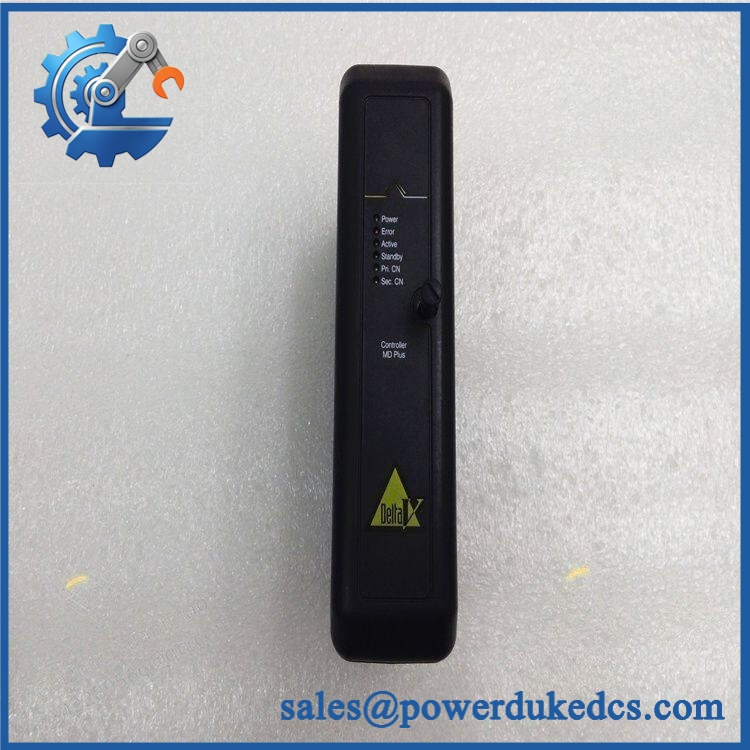

Emerson KJ2003X1-BB1 DeltaV MD Plus Controller

Description

• Brand: Emerson
• Full Model Number: KJ2003X1-BB1
• Related Ordering Numbers: 12P3439X012 / 12P3439X022 / 12P3439X032
• Lifecycle Status: Legacy DeltaV MD Plus
• Core Function: MD Plus controller for DeltaV process control systems
• Top 3 Technical Specs: +5 VDC local-bus supply; 1.4 A maximum local-bus rating; -40 to +70°C ambient temperature
• Environmental Rating: 5–95% relative humidity, non-condensing; ISA-S71.04-1985 Class G3 airborne contaminants
• Stock & Condition: New Surplus / New Original depending on available unit; serial number, label, revision, and packaging to be verified before shipment

Supply Chain & Technical Deep Dive

The is an MD Plus Controller used within the DeltaV process control architecture. It is a controller component rather than a conventional field I/O termination device. The controller interfaces with the DeltaV system and executes the control functions assigned to its installed configuration. Available technical documentation identifies the local-bus power requirement as +5 VDC at up to 1.4 A, making the exact controller and carrier arrangement important when planning a replacement.

For legacy DeltaV maintenance, the ordering-number suffix deserves attention. Market records associate with several 12P3439X-series ordering numbers, so purchasing by the KJ model alone can create a revision or assembly mismatch. The physical controller should therefore be checked against the installed unit’s complete label before shipment. The documented environmental range of -40 to +70°C and Class G3 contamination specification can also matter for cabinets located in process areas rather than controlled equipment rooms.

Migration, Compatibility & Field Traps

Field Trap — Ordering Number Mismatch

Do not treat every listing as automatically identical. Available records associate the model with multiple 12P3439X-series ordering numbers. Before procurement, compare the complete part label, revision information, and existing controller configuration.

Field Trap — Powered Removal

The available Emerson ATEX instruction documentation specifically states that the unit cannot be removed or inserted with system power energized. Plan the maintenance window and follow the applicable DeltaV installation procedure rather than performing a live controller swap.

Field Trap — Configuration and Firmware

A physically matching controller does not by itself guarantee immediate system operation. Verify the DeltaV controller configuration, system software version, stored configuration, and any applicable firmware requirements before replacing a controller in a production system.

Emerson KJ2003X1-BB1

Quality Assurance & Testing SOP

OEM Identification Check

• Verify Emerson branding and model marking.
• Record the complete 12P3439X-series ordering number where present.
• Photograph serial number, revision, manufacturing information, and nameplate.
• Compare connector layout and mechanical features against the customer’s existing controller.

Mechanical Inspection

• Inspect housing, connectors, mounting surfaces, and edge contacts.
• Check for corrosion, impact damage, contamination, cracked housing, or evidence of unauthorized repair.
• Verify that protective covers and connectors are intact.

Power-Up Test

• Use a compatible DeltaV test carrier and controlled power source.
• Verify the required +5 VDC local-bus supply within the permitted test limits.
• Monitor startup behavior and controller diagnostic indicators.
• Confirm that no abnormal fault condition is generated during POST or initialization.

Communication Verification

• Install the controller in an appropriate test configuration.
• Establish communication with the applicable DeltaV engineering or diagnostic environment.
• Verify controller recognition and expected diagnostic status.
• Check communication stability during an extended test period.

Configuration / Control Test

• Load or use an appropriate test configuration.
• Verify controller initialization and configuration recognition.
• Exercise representative control logic under controlled conditions.
• Monitor diagnostics for communication, configuration, or controller faults.

Environmental and Final QC

• Confirm the unit is suitable for the specified installation environment.
• Record model, ordering number, serial number, test results, and inspection photographs.
• Apply ESD protection during handling and packaging.
• Perform a final label and quantity check before dispatch.

Procurement-Driven FAQ

is an Emerson DeltaV MD Plus Controller used as a controller component within DeltaV process-control systems.

What is the local-bus power requirement?

The available Emerson instruction documentation specifies +5 VDC at 1.4 A for the local bus. This should be checked against the actual controller/carrier installation before replacement.

What temperature range is specified?

The documented ambient operating range is -40 to +70°C. Relative humidity is specified as 5–95% non-condensing, with ISA-S71.04-1985 Class G3 airborne-contaminant conditions.

Can any unit replace the existing controller?

Not without verification. Different 12P3439X-series ordering numbers are associated with in available records. Confirm the complete ordering number, revision, system configuration, and installed DeltaV architecture before purchase.

Can the controller be removed while the system is energized?

The available Emerson hazardous-area instruction specifically states that this unit cannot be removed or inserted with system power energized. Follow the applicable DeltaV maintenance and installation procedure.
