Description
- Brand: Emerson
- Full Model Number: KJ4001X1-NA1
- Ordering Number: 12P3373X012
- System/Series Family: DeltaV M-Series
- Core Function: Horizontal 1-wide right-side LocalBus carrier extension
- Top 3 Hardcore Specs: 12 VDC LocalBus / 8 A / -40°C to +70°C
- Maximum LocalBus Length: 6.5 m total carrier and extender length
- Environmental Rating: 5–95% RH non-condensing
- Hazardous Area Rating: Class I Division 2 and Zone 2 variants documented
- Stock Status: New Surplus — availability confirmation required
Commercial-Technical Deep Dive
When a DeltaV M-Series I/O row needs to extend beyond its local cabinet position, the KJ4001X1-NA1 provides the right-side LocalBus interface. It is identified as a 1-wide I/O carrier extender and is used with DeltaV carrier arrangements that require LocalBus expansion. The assembly interfaces with the carrier through its side connection and supports LocalBus interconnection through the associated extender cabling. This is an architectural component, not an I/O signal-conditioning module.
The electrical rating is 12 VDC at 8 A for LocalBus power. Its documented ambient range is -40°C to +70°C, with 5–95% relative humidity, non-condensing, plus 10 g half-sine shock for 11 ms. The critical installation limit is the total LocalBus length: all carriers, extender assemblies, and cabling must remain within 6.5 m. That restriction matters more than the extender’s physical dimensions because excessive bus length can invalidate an otherwise correct cabinet arrangement (especially during multi-cabinet expansions).
Compatibility & Installation Traps
Migration/Compatibility
The KJ4001X1-NA1 is a DeltaV M-Series right-side carrier extender. It is normally selected as part of a compatible M-Series carrier and LocalBus arrangement rather than as a software-configured replacement for an I/O module. No control-logic rewrite is inherently associated with replacing the same extender position.
Do not treat every KJ4001X1 variant as interchangeable. The DeltaV hardware documentation distinguishes right and left carrier extenders, with KJ4001X1-NA1 used on the right side and KJ4001X1-NB1 on the left. Cable selection also affects the allowable cabinet configuration.
⚠️ Field Traps (Watch Out)
- No energized insertion: Emerson documentation specifies that this unit must not be removed or inserted with system power energized. De-energize the system before disconnecting carriers or LocalBus extender cables.
- Bus-length limit: Keep the combined I/O carrier and LocalBus extender length at or below 6.5 m. For inter-enclosure installations, the interconnecting cable must be routed in conduit.
- Cable pairing: When two D-shell cables are used, the DeltaV installation documentation specifies routing both from the same source to the same destination.

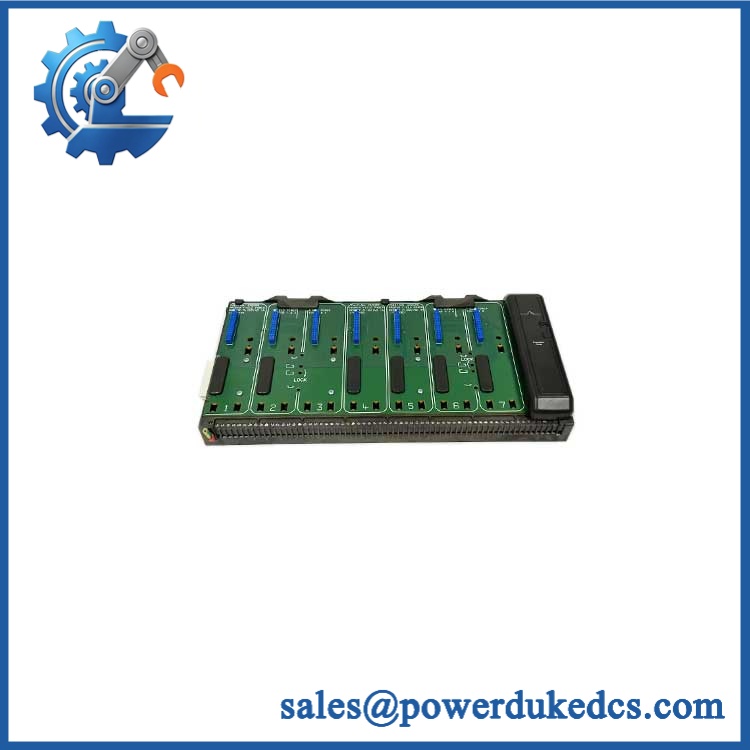

Emerson KJ4001X1-NA1
Quality Assurance SOP
Every supplied -NA1 should pass a documented incoming and pre-shipment inspection sequence:
- Part-number verification: -NA1 and 12P3373X012 checked against the unit label.
- Revision verification: Physical revision marking recorded before shipment.
- OEM anti-counterfeit visual inspection: Housing, label typography, connector construction, markings, and manufacturing identifiers checked for abnormalities.
- Mechanical inspection: Carrier-side connector, LocalBus connector, mounting points, and housing examined for cracks, deformation, corrosion, or impact damage.
- Power-on self-test (POST): Where the installed test configuration supports it, power application and system diagnostic indications are checked for expected status.
- LocalBus communication handshake verification: Installed test configuration checked for proper LocalBus recognition and carrier communication.
- Electrical inspection: LocalBus power path and connector continuity checked according to the applicable test procedure.
- Packaging inspection: Anti-static protection, cushioning, labeling, and shipment identification verified before dispatch.
The unit contains no user-serviceable parts, and the applicable installation sheet states that calibration is not required.
CRO-Driven Buyer FAQ
Is still suitable for an existing DeltaV M-Series system?
Yes, provided the existing architecture uses the corresponding M-Series carrier and LocalBus arrangement. Confirm the exact carrier configuration, extender orientation, cable type, and revision before purchase. The part number 12P3373X012 is associat.
be hot-swapped?
No. The documented installation requirement is to de-energize system power before removing or inserting the extender or disconnecting the associated LocalBus cables. Hazardous-area work also requires compliance with the applicable DeltaV installation procedure.
What is the maximum LocalBus extension length?
The combined length of I/O carriers and LocalBus extenders must not exceed 6.5 meters. This includes the associated LocalBus cabling.
What warranty is provided with the supplied unit?
A 12-month warranty can be provided for supplied inventory, covering defects attributable to the supplied hardware under the agreed warranty terms. Technical support covers product identification, documentation, installation guidance, and basic integration checks. Control strategy changes, site wiring faults, and unrelated system failures remain outside normal hardware warranty coverage.
How should I verify authenticity before ordering?
Request clear photographs of the actual unit label, full model number, ordering number, revision, and visible manufacturing markings. For critical shutdown applications, match those identifiers against your existing DeltaV hardware records before release of the purchase order.
