- Foxboro P0916FJ | CE Industrial DCS Connection Harness
2. Unboxing & Physical Snapshot
- Brand & Model: Foxboro P0916FJ
- Product Family: Foxboro I/A Series / Foxboro Evo DCS Fieldbus Accessories.
- Product Type: Type 4 Terminal Cable Assembly for FBM I/O modules.
- Primary Function: Provides the connection between Foxboro FBM2XX series I/O modules and field termination assemblies, transferring field wiring signals through the DCS termination architecture.
- Cable Length: 3 meters.
- Cable Type: Type 4 P/PVC cable assembly.
- Connector Interface: 37-pin male D-sub connector.
- Termination Side: 32 screw terminal connections.
- Mounting Compatibility: DIN rail mounted termination assemblies, including Phoenix Contact UMK-SE 11.25-1 style bases.
- Approximate Physical Dimensions (W × H × D):
- Cable assembly length: 3000 mm
- Packaged dimensions vary depending on coiling method.
- Estimated Shipping Weight: Approximately 0.6 kg in standard packaging; some listings indicate approximately 0.99 lb for the cable assembly only.
- Mechanical Features:
- Molded connector housing
- 37-pin D-sub interface
- Flexible industrial cable jacket
- Identification labeling
- Field termination connection points
- Operating Temperature: Approximately -40°C to +105°C depending on cable construction and revision.
- What’s in the Box:
- Foxboro P0916FJ terminal cable assembly
- Protective packaging
- Connector protection cover when supplied
- Documentation if included
3. Product Introduction
The Foxboro P0916FJ is installed within the Foxboro I/A Series field termination architecture, creating the physical link between FBM I/O modules and field wiring termination assemblies. The cable is a passive connection component, but its reliability directly affects signal availability because a damaged conductor or contaminated connector can interrupt multiple process points simultaneously (which is critical in continuous-process facilities).
This cable assembly should be managed as a controlled DCS spare, not general electrical inventory. Inspect the D-sub connector shell, pin condition, cable jacket, and identification label before installation. Check the storage date. Polymer insulation and connector contacts can degrade after years of uncontrolled storage, especially in humid or chemically active environments.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Foxboro / Invensys |
| Model Number | P0916FJ |
| Product Type | Terminal Cable Assembly |
| System Platform | Foxboro I/A Series / Foxboro Evo |
| Compatible Modules | FBM2XX Series |
| Cable Type | Type 4 P/PVC |
| Cable Length | 3 m |
| Connector Type | 37-pin male D-sub |
| Termination Interface | 32 screw terminals |
| Mounting Compatibility | DIN rail termination assembly |
| Cable Jacket Material | P/PVC polyurethane outer jacket |
| Temperature Rating | Approx. -40°C to +105°C (configuration dependent) |
| Weight | Approx. 0.6 kg |
| Application | Industrial DCS field wiring interface |

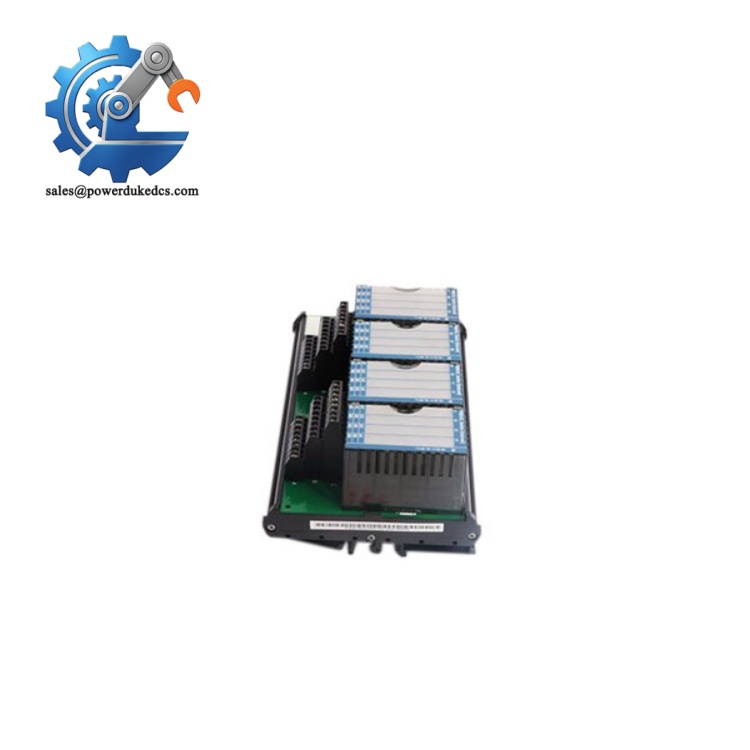

Foxboro P0916FJ
5. Global Compliance & Industry Certifications
Expected compliance considerations for the Foxboro P0916FJ include:
- CE Mark — applicable as part of the certified Foxboro DCS installation environment.
- UL/cUL Recognition — may apply when used with approved Foxboro FBM termination assemblies.
- ATEX/IECEx Considerations — hazardous-area suitability depends on the complete field circuit design, termination assembly, and certified associated equipment.
- Marine Approvals (DNV GL) — require verification for specific vessel or offshore control system applications.
- RoHS Compliance — depends on manufacturing revision and production period.
Cable certification matters because field wiring components may be installed in environments where insulation integrity, flame behavior, and signal reliability directly affect plant safety.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
- Store the P0916FJ in a dry indoor environment with humidity maintained below 60% RH. Moisture can affect connector plating and cable insulation over long storage periods.
- Keep the cable coiled with a controlled bend radius. Do not place heavy equipment on the cable drum or packaging.
- Protect the 37-pin connector with the original protective cover or sealed packaging to prevent oxidation and contamination.
- Avoid direct sunlight exposure. UV degradation can weaken external cable jacket materials.
- Record cable length, revision level, and compatibility information with the spare inventory record.
7. Physical Installation Prerequisites
- Confirm the P0916FJ cable length matches the cabinet layout before installation.
- Connect only with compatible Foxboro FBM2XX termination assemblies.
- Inspect the D-sub connector pins before mating.
- Ensure the cable routing avoids sharp edges, excessive bending, and high-temperature surfaces.
- Maintain separation from high-current power cables to reduce electrical interference.
- Secure the cable using appropriate cabinet routing hardware.
- Verify termination screw connections are properly tightened before system startup.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for Foxboro P0916FJ?
A: Cable assemblies for industrial control systems are commonly reviewed under HS 8544 categories for insulated electrical conductors and cable assemblies. The final classification depends on connector type and customs interpretation.
Q: Why does Country of Origin (COO) matter for this Foxboro cable assembly?
A: COO affects customs clearance, duty assessment, supplier documentation, and asset traceability. The declared origin should match the commercial invoice, packing list, and certificate of origin when required.
Q: Should shipping insurance be arranged for the P0916FJ?
A: Recommended. The cable is not electronically complex, but damaged connectors, bent pins, or crushed cable insulation may not be discovered until field installation.
Q: Does the P0916FJ include the latest firmware pre-loaded?
A: No firmware applies to this product. It is a passive terminal cable assembly. Compatibility depends on the correct Foxboro FBM module type, termination assembly, cable revision, and physical installation requirements.
