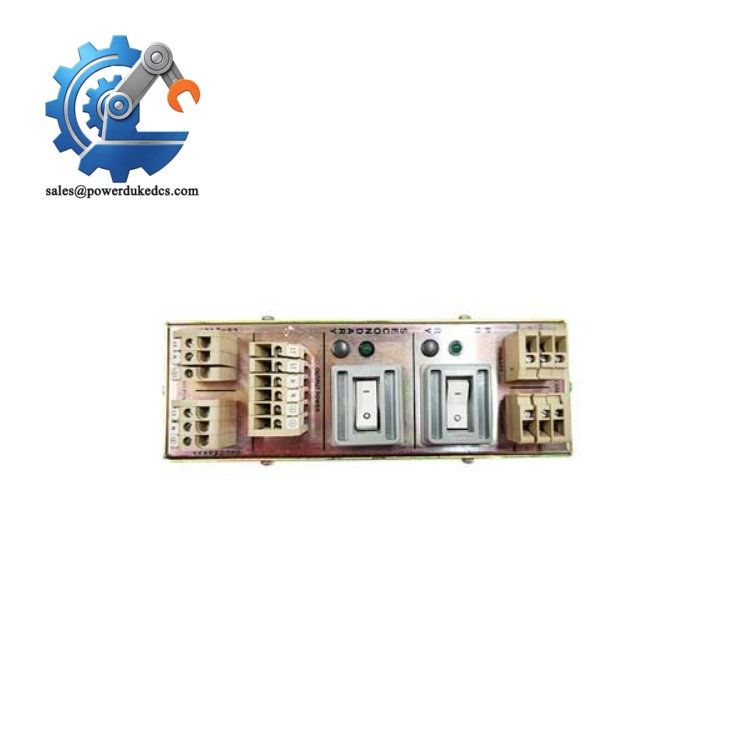

Foxboro P0912XX | Foxboro DCS Cabinet Power Component

1. Foxboro P0912XX | Foxboro DCS Cabinet Power Component

Unboxing & Physical Snapshot

• Brand & Model: Foxboro P0912XX
• Product Family: Foxboro I/A Series Distributed Control System.
• Product Type: AC Power Transfer / Power Supply Interface Module.
• Primary Function: Provides AC power distribution or transfer functions within Foxboro I/A Series DCS cabinet architectures.
• System Application: Foxboro process control cabinets, controller racks, and associated field control equipment.
• Input Voltage: Typically associated with 120 VAC applications (verify exact hardware revision).
• Approximate Physical Dimensions (W × H × D): Approximately 100 × 140 × 60 mm.
• Estimated Shipping Weight: Approximately 2.0 kg depending on packaging configuration.
• Mounting Style: Cabinet-mounted Foxboro I/A Series hardware assembly.
• Mechanical Features:
  • Metal or molded equipment housing
  • Power connection terminals
  • Internal switching components
  • Mounting points for cabinet installation
  • Identification label area
• Cooling Method: Passive convection cooling.
• Handling Requirements:
  • Inspect terminal areas before installation.
  • Protect electrical contacts from oxidation.
  • Keep the module dry during storage.
• What’s in the Box:
  • Foxboro P0912XX module
  • Protective packaging
  • Terminal protection accessories when supplied
  • Documentation if included

Product Introduction

The Foxboro P0912XX is installed as part of the I/A Series DCS cabinet power infrastructure, where controlled AC distribution and transfer functions support critical automation hardware. This type of module is positioned within the power architecture rather than the signal-processing layer (which is important when maintaining uninterrupted control system availability).

Treat this component as a controlled electrical spare. Inspect the enclosure, terminal connections, mounting hardware, and identification markings before installation. Check the storage condition. Long-term exposure to humidity or contamination can affect insulation materials and electrical contact reliability.

Core Technical Specifications

Foxboro P0912XX

Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the Foxboro P0912XX include:

• CE Mark — indicates compliance with applicable European EMC and electrical safety requirements when installed within an approved system configuration.
• UL/cUL Recognition — may apply when installed as part of a certified Foxboro I/A Series control cabinet.
• ATEX/IECEx Considerations — hazardous-area applications require a complete certified cabinet design, including enclosure and associated protection methods.
• Marine Approvals (DNV GL) — require verification for offshore or marine control applications.
• RoHS Compliance — depends on production revision and manufacturing period.

Electrical safety certification is important for power modules because insulation failure or incorrect installation can create hazards affecting both personnel and control system availability.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Store the in a dry indoor environment with humidity maintained below 60% RH. Moisture can degrade insulation materials and terminal contact surfaces.
• Keep the module inside protective packaging until installation. Avoid dust contamination on power terminals and switching components.
• Inspect terminal screws, connectors, and enclosure surfaces before commissioning after extended storage.
• Maintain inventory records including serial number, production date code, and previous service history.

Physical Installation Prerequisites

• Install the only within a compatible Foxboro I/A Series cabinet design.
• Verify AC voltage rating before energizing.
• Provide adequate cabinet airflow for natural convection cooling.
• Maintain approximately 50 mm clearance around heat-producing cabinet components where required by enclosure design.
• Ensure protective grounding is connected according to site electrical standards.
• Inspect all terminal connections for correct torque values.
• Confirm upstream protection devices match the module electrical requirements.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for Foxboro ?

A: Power distribution and control modules are commonly reviewed under HS 8537 or related electrical control apparatus classifications. The final classification depends on the declared function and customs interpretation.

Q: Why does Country of Origin (COO) matter for this Foxboro module?

A: COO affects customs clearance, duty assessment, supplier documentation, and lifecycle traceability. The origin should match the commercial invoice, packing list, and certificate of origin when required.

Q: Should shipping insurance be arranged for the ?

A: Recommended. Although the module is compact, internal power components, terminals, and insulation structures can be damaged by impact, moisture, or improper handling during transportation.

Q: Does the include the latest firmware pre-loaded?

A: No firmware applies to this hardware type. It is an electrical power module; compatibility depends on the correct hardware revision and Foxboro I/A Series cabinet configuration.
