Description
- Foxboro P0926GH | Original I/A Series Field Connection Spare
2. Unboxing & Physical Snapshot

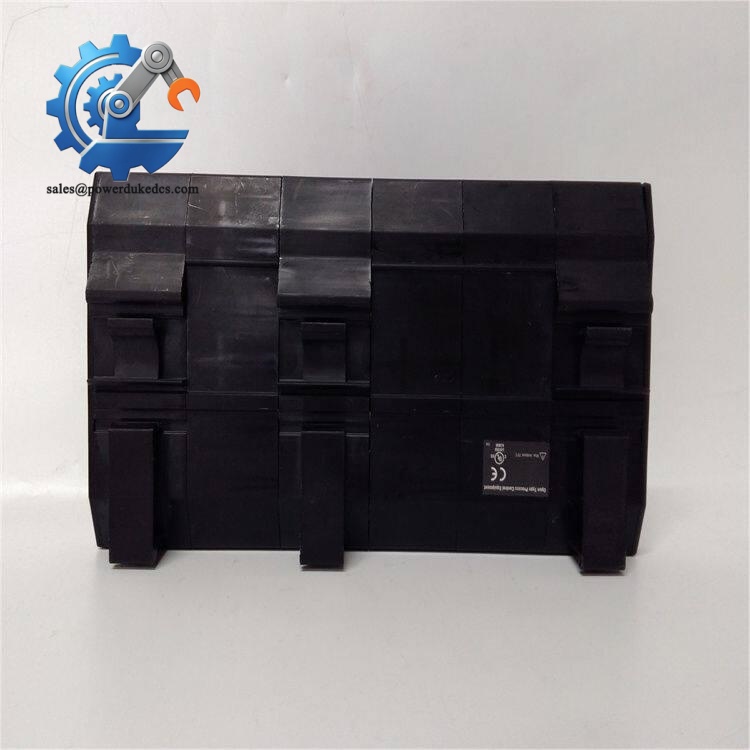

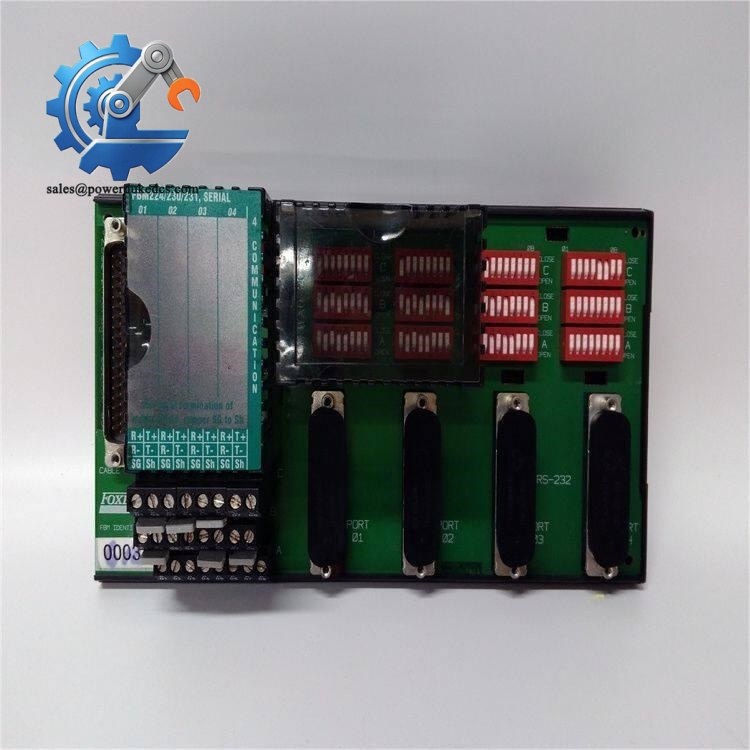

- Model & Brand: Foxboro P0926GH Compression Screw Termination Assembly for the I/A Series Distributed Control System. This termination assembly provides the field wiring interface for compatible Foxboro FBM communication modules, including FBM224, FBM230, and FBM231 configurations.
- Product Type: External Termination Assembly (TA) / Field Wiring Interface.
- Compatible Modules: Foxboro I/A Series FBM224 Modbus Interface, FBM230 Serial Interface, FBM231 Field Device System Integrator.
- Physical Dimensions (Approximate W × H × D): Approximately 125 × 216 × 80 mm (4.93 × 8.51 × 3.15 in.) for the compression screw termination assembly.
- Estimated Shipping Weight: Approximately 0.27 kg (0.6 lb) for the termination assembly; allow approximately 0.5 kg with protective packaging.
- What’s in the Box:
- Foxboro P0926GH compression screw termination assembly
- Terminal block assembly
- Mounting hardware (configuration dependent)
- Identification label
- Protective packaging
- Installation documentation when supplied
3. Product Introduction
The Foxboro P0926GH installs as the physical termination point between field wiring and Foxboro I/A Series communication modules. The assembly mounts separately from the FBM module and provides organized screw-terminal connections for field signals. Check the terminal clamp condition before installation. Loose compression points can introduce intermittent communication faults, especially in older process plants exposed to vibration and thermal cycling (which is critical for continuous process operations).
This component is not a controller or signal-processing module. It is a passive wiring interface designed to support the connection architecture of compatible FBM communication modules. The P0926GH uses compression screw terminals and is associated with serial communication applications including RS-232, RS-422, and RS-485 interfaces depending on the installed FBM hardware. Verify the exact FBM model and termination wiring diagram before replacement because similar Foxboro terminal assemblies are not always interchangeable.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Foxboro (Schneider Electric) |
| Model Number | P0926GH |
| Product Type | Compression Screw Termination Assembly |
| System Family | Foxboro I/A Series DCS |
| Compatible Modules | FBM224 / FBM230 / FBM231 |
| Function | Field wiring termination interface |
| Terminal Type | Compression screw terminal |
| Material | Polyamide terminal assembly |
| Communication Interfaces Supported | RS-232 / RS-422 / RS-485 (module dependent) |
| Mounting Method | DIN rail or panel mounting |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5–95% RH non-condensing |
| Environmental Rating | ISA S71.04 Class G3 harsh environment suitability |
| Approximate Weight | 272 g |
| Dimensions | Approx. 125 × 216 × 80 mm |
Foxboro P0926GH
5. Global Compliance & Industry Certifications
Expected compliance considerations for the Foxboro P0926GH include:
- CE Mark — applicable when installed as part of a compliant Foxboro I/A Series control system.
- UL/cUL Recognition — may apply when used within approved Foxboro system configurations.
- ATEX/IECEx — not a standalone hazardous-area certified device; hazardous-area suitability depends on the complete certified system design.
- Marine approvals (DNV GL) — only applicable when included in a certified marine automation installation.
- ISA S71.04 Class G3 Environmental Compatibility — suitable for harsh industrial environments when installed according to system requirements.
For process automation systems, termination assemblies directly affect signal integrity. Incorrect shielding, grounding, or terminal installation can create communication instability even when the electronic module is functioning correctly.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
Keep the P0926GH sealed in its original protective packaging during warehouse storage. The terminal screws, contact surfaces, and insulation body should remain free from dust and chemical contamination.
Maintain storage humidity below 60% RH. High humidity can accelerate oxidation on metal terminals and reduce connection reliability after installation.
Before deployment:
- Inspect terminal screws for corrosion.
- Check the plastic housing for cracks or deformation.
- Confirm compatibility with the installed FBM module.
- Verify wiring documentation before connecting field cables.
Avoid storing near corrosive chemicals, salt-air environments, or areas with frequent condensation.
Foxboro P0926GH
7. Physical Installation Prerequisites
- Install only with compatible Foxboro I/A Series FBM communication modules.
- Mount on approved DIN rail or panel hardware.
- Confirm terminal assignment before field wiring.
- Tighten compression screws according to approved torque specifications.
- Maintain clean cable routing and proper shield termination.
- Separate communication wiring from high-voltage power conductors.
- Provide cabinet clearance for wiring access and maintenance.
- Leave approximately 50 mm clearance around ventilation and service areas where practical.
- Verify protective grounding according to the control cabinet design.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the Foxboro P0926GH?
A: Industrial control system termination assemblies are commonly reviewed under HS 8538 as parts for electrical control equipment. Final classification depends on customs interpretation in the destination country.
Q: Does Country of Origin (COO) affect importing the P0926GH?
A: Yes. COO affects customs declarations, duty treatment, supplier qualification records, and maintenance traceability. Ensure invoice, packing list, and product identification records remain consistent.
Q: Is shipping insurance recommended for this termination assembly?
A: Recommended. Although the unit contains no active electronics, damage to the terminal housing, screw clamps, or mounting structure can prevent proper field installation.
Q: Does the P0926GH include firmware or configuration data?
A: No. The P0926GH is a passive termination assembly and does not contain firmware, memory, or programmable configuration. The connected Foxboro FBM module and DCS database control system behavior.
Lifecycle Note: The P0926GH should be stored together with the compatible FBM module reference and wiring documentation. In legacy Foxboro I/A Series installations, maintaining the correct termination assembly is essential because field wiring compatibility depends on the exact hardware combination.
