Foxboro FBM216 P0917XQ | Traceable I/A Series Module

Description

1. Foxboro FBM216 P0917XQ | Traceable I/A Series Module

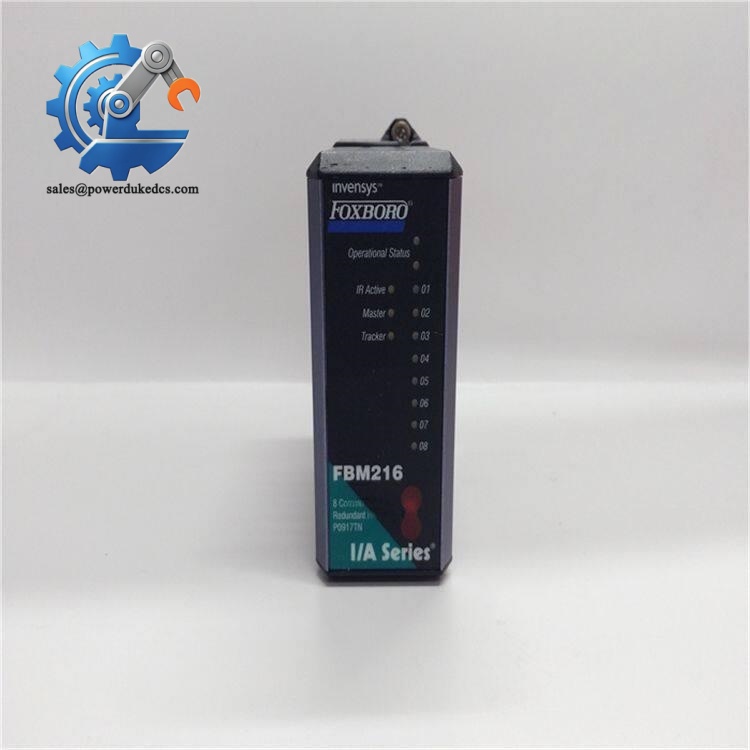

Unboxing & Physical Snapshot

• Model & Brand: Foxboro FBM216 P0917XQ (Schneider Electric Foxboro)
• Product Type: HART Communication Redundant Input Interface Module
• Application: Foxboro I/A Series Fieldbus Module (FBM) used for redundant acquisition of 4–20 mA analog signals with HART communication capability from smart field devices.
• Channel Configuration: 8-channel analog input module with HART communication support.
• Redundancy Function: Used with redundant adapter P0917XQ to support FBM-level redundancy arrangements.
• Mounting Style: Modular baseplate mounting; baseplate supports DIN rail or rack installation.
• Approximate Physical Dimensions (W × H × D):
  • 45 × 102 × 104 mm
  • Including mounting lugs: approximately 45 × 114 × 104 mm
• Estimated Shipping Weight: Approximately 0.3–0.5 kg including ESD packaging. The module mass is approximately 284 g.
• What’s in the Box:
  • Foxboro FBM216 P0917XQ module
  • Module identification label
  • Protective anti-static ESD packaging
  • Connector protection accessories (configuration dependent)
  • Documentation when supplied with controlled inventory

Product Introduction

The FBM216 P0917XQ installs into the Foxboro I/A Series fieldbus architecture as a precision analog input interface between field transmitters and the distributed control system. It receives 4–20 mA signals, processes HART communication data, and transfers validated process information through the redundant fieldbus network. (This arrangement is commonly maintained in process plants where transmitter availability directly affects production continuity.)

Treat this module as a controlled DCS spare. Inspect the aluminum housing, retaining clips, backplane connector, and termination interface before installation. The module does not simply provide signal conversion; it also participates in diagnostics and HART device communication, so incorrect termination assemblies or wiring faults can mimic electronic failure.

Core Technical Specifications

Foxboro FBM216 P0917XQ

Global Compliance & Industry Certifications

Expected compliance considerations for the Foxboro FBM216 include:

• CE Mark
• UL/cUL industrial control system compliance
• Class I Division 2 hazardous location suitability when installed with approved system components
• ATEX / IECEx Zone 2 consideration through certified system configuration
• Industrial EMC compliance
• Marine approvals such as DNV GL only when included within an approved marine automation package

The Class I Division 2 rating is important in process industries because it addresses equipment suitability in locations where flammable gases may occasionally exist under abnormal operating conditions. Certification applies to the complete approved installation arrangement, including termination assemblies and field wiring requirements.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Keep the sealed in its original anti-static ESD shielding bag until installation. Protect the rear connector pins from oxidation.
• Maintain warehouse humidity below 60% RH to reduce corrosion risk on PCB surfaces and contact plating.
• Store the module in a clean cabinet away from vibration, chemical vapors, and temperature cycling.

Check the connector condition.

For long-term DCS spare inventory, record the serial number, hardware revision, firmware revision, and associated termination assembly compatibility. FBM modules may remain in storage longer than active production equipment, making documentation essential for future replacement work.

Physical Installation Prerequisites

• Install the only on an approved Foxboro modular baseplate.
• Confirm the correct termination assembly and cable type before field wiring.
• Verify the redundant adapter arrangement when using dual modules.
• Inspect the backplane connector before insertion.
• Secure retaining clips after mounting.
• Connect cabinet grounding according to Foxboro installation requirements.
• Maintain cabinet airflow and leave approximately 50 mm clearance around installed module assemblies where practical.
• Separate field signal wiring from high-voltage power conductors.
• Confirm 24 VDC supply stability before commissioning.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the Foxboro ?
A: Industrial DCS input modules are commonly evaluated under HS 8537.10 for electrical control apparatus or related automation equipment classifications. Final classification depends on customs interpretation and destination-country regulations.

Q: Why does Country of Origin (COO) documentation matter for this module?
A: COO supports customs clearance, regulated industry records, and DCS asset traceability. The COO should match the commercial invoice, packing list, and product identification information.

Q: Is shipping insurance recommended for the ?
A: Yes. The module contains electronic circuits, communication components, and precision connectors. Use ESD protection, moisture control packaging, and declared-value freight coverage.

Q: Does the include the latest firmware pre-loaded?
A: The module includes factory firmware, but the installed revision depends on production history. Verify firmware compatibility with the Foxboro I/A Series system revision before commissioning. Configuration data and control database information are maintained at the system level.
