GE 12A0-0103-A3 | Original Mark V ARCNET Terminal

Description

• Model & Brand: GE 12A0-0103-A3, General Electric
• System Family: Speedtronic Mark V
• Part Type: ARCNET communication terminal module / terminal module
• Application: Mark V turbine-control communications infrastructure
• Physical dimensions: An authoritative GE dimensional drawing for the exact 12A0-0103-A3 was not located in the public technical material reviewed. Use the actual packed unit for freight booking rather than borrowing dimensions from unrelated Mark V boards.
• Estimated unit weight: Approximately 1.0–1.5 kg as a logistics estimate; this is not an OEM-certified weight.
• Estimated shipping weight: Approximately 1.5–2.5 kg with ESD protection, cushioning, carton, and documentation.
• What’s in the box: 12A0-0103-A3 module/terminal assembly and protective packaging when supplied as unused stock. Do not assume communication cables, connectors, mounting hardware, or technical manuals are included.
• Identification requirement: Preserve the complete 12A0-0103-A3 number and all assembly/revision markings. Public records identify this exact number as a Speedtronic Mark V ARCNET communication terminal module.

Product Introduction

The Mark V architecture predates modern PACSystems networking, and the 12A0-0103-A3 belongs to that earlier turbine-control communications environment. Public parts records specifically identify the device as a Speedtronic Mark V ARCNET communication terminal module, which makes the system family and network technology important compatibility fields during replacement.

Do not classify this part as a generic Ethernet module simply because some secondary catalogs do so. Other web listings inconsistently describe the same number as a generic control module or even a 100 Mbps Ethernet item, while the more specific exact-part description identifies Mark V ARCNET. That conflict is material for procurement and should be resolved against the physical nameplate and the original Mark V drawing before installation.

Core Technical Specifications

The limited public evidence for this exact catalog number does not support filling in electrical ratings with specifications from unrelated Mark V terminal boards. For an engineering asset database, “not verified” is preferable to assigning an incorrect voltage, current, or communications specification.

The exact-part identification as a Mark V ARCNET communications terminal is supported by the available catalog evidence.

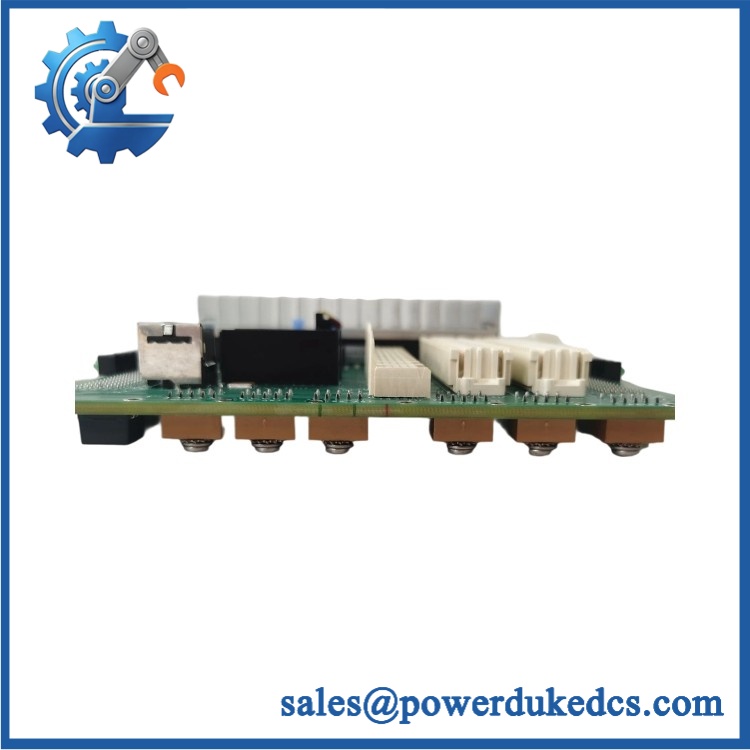

GE 12A0-0103-A3

🚨 Global Compliance & Industry Certifications

Certification evidence for 12A0-0103-A3 is substantially less complete than for current GE industrial products.

• CE Mark: Not independently verified for this exact part number from authoritative documentation.
• UL/cUL: No exact-part certificate was established from the technical sources reviewed.
• ATEX / IECEx: No evidence was found establishing ATEX or IECEx certification for this exact terminal module.
• Marine approvals: No reliable evidence was identified for DNV, ABS, or another marine certification applicable specifically to 12A0-0103-A3.
• System-level approvals: Mark V turbine installations can have certification controlled at the equipment or cabinet level rather than by each individual communication card.

Do not copy generic CE, UL, ATEX, or RoHS claims from unrelated secondary product pages into an audit record. Several current web listings attach broad compliance claims to this catalog number without supplying a corresponding GE certificate.

Verify specific lot certifications with OEM.

For controlled inventory, retain a photograph of the complete label, assembly markings, serial/date information where available, supplier documentation, COO evidence, and any surviving Mark V system certification documents.

🚨 Long-Term Storage & Asset Preservation Guide

Keep the assembly inside an ESD shielding bag. Mark V communication hardware contains exposed electrical interfaces that should not be handled repeatedly without static-control precautions.

Protect every communication connector. Use the original connector covers or suitable clean protective caps when available. Dust or oxidation on an ARCNET interface can produce intermittent communication problems that may only appear after the card is returned to service.

Control warehouse humidity. A dry indoor environment around 30–60% RH, without condensation, is a sensible preservation target for multi-year storage. Avoid direct contact with concrete floors, exterior walls, and locations subject to repeated temperature cycling.

Keep the original packaging label with the part. For obsolete turbine hardware, that label can be the only practical evidence linking the physical assembly to its original part identity years later.

No verified battery-maintenance requirement was identified for the 12A0-0103-A3 itself. Do not apply a CPU battery-replacement interval to this communication terminal unless the actual assembly contains a documented battery.

Physical Installation Prerequisites

The 12A0-0103-A3 should be treated as Mark V-specific communication hardware, not as a universal Ethernet terminal. Confirm the original Mark V cabinet drawing, card/rack position, mating connectors, cable type, and network topology before installation.

Allow enough cabinet space for connector engagement, cable routing, maintenance access, and heat dissipation. A practical 50 mm free-air allowance around major ventilation areas is useful where the cabinet design permits it, but the original Mark V enclosure drawing takes precedence.

Grounding should follow the original turbine-control cabinet design. Pay particular attention to communication cable shielding and cabinet bonding; an improvised shield termination can introduce noise or ground-current problems into an older communication network.

Before energization:

• Verify the exact 12A0-0103-A3 identity.
• Inspect connector pins and mating surfaces.
• Confirm the intended Mark V rack or terminal location.
• Check communication cable type and termination against the system drawing.
• Verify cabinet protective earth and chassis bonding.
• Confirm that the replacement assembly matches the installed network architecture.

Do not substitute an Ethernet interface merely because a supplier database describes the catalog number as “100 Mbps Ethernet.” The available exact-part description identifies ARCNET communication hardware, and that distinction must be resolved before procurement or installation.

Buyer’s FAQ

What HS tariff code should be used for 12A0-0103-A3?

A standalone industrial communication/interface module may fall within HS Chapter 85, but the correct heading depends on its physical construction, principal function, and how the importing country’s customs authority treats turbine-control communication apparatus.

Possible classifications can involve 8517 for communications apparatus or 8538 for parts used principally with electrical control equipment. Neither should be entered as a confirmed tariff code without reviewing the actual shipment and destination-country tariff schedule.

What should be declared as Country of Origin?

The COO must reflect the actual manufacturing origin of the physical assembly, not the seller’s current location and not merely the GE brand nationality.

For this legacy Mark V component, request supplier-supported COO evidence for the actual unit. Keep the invoice, packing list, COO statement, and physical identification consistent.

Is shipping insurance necessary for this terminal module?

For turbine-control spares, the economic exposure is normally much greater than the module’s shipping weight suggests. Use rigid cushioning, ESD protection, moisture protection, and accurate declared value.

Photograph the terminal connectors, label, enclosure, and packaging before sealing the export carton. Those records are particularly useful if connector damage or enclosure deformation is discovered after delivery.

Does 12A0-0103-A3 include the latest firmware?

No separate user-loadable firmware version could be verified for this exact terminal assembly from the public documentation reviewed. Treat it primarily as Mark V communication/interface hardware rather than a modern firmware-managed controller.

For a replacement purchase, request the exact assembly number, board or hardware revision, serial/date code, connector configuration, and actual nameplate photographs. That provides more useful compatibility evidence than a generic statement that the unit contains the “latest firmware.”

For a controlled asset record, retain 12A0-0103-A3 + hardware revision + serial/date code + COO + certification evidence + packaging condition + installation compatibility reference as one record.
