GE 531X303MCPBBG1 | MCPB Power Supply Board | OEM

Description

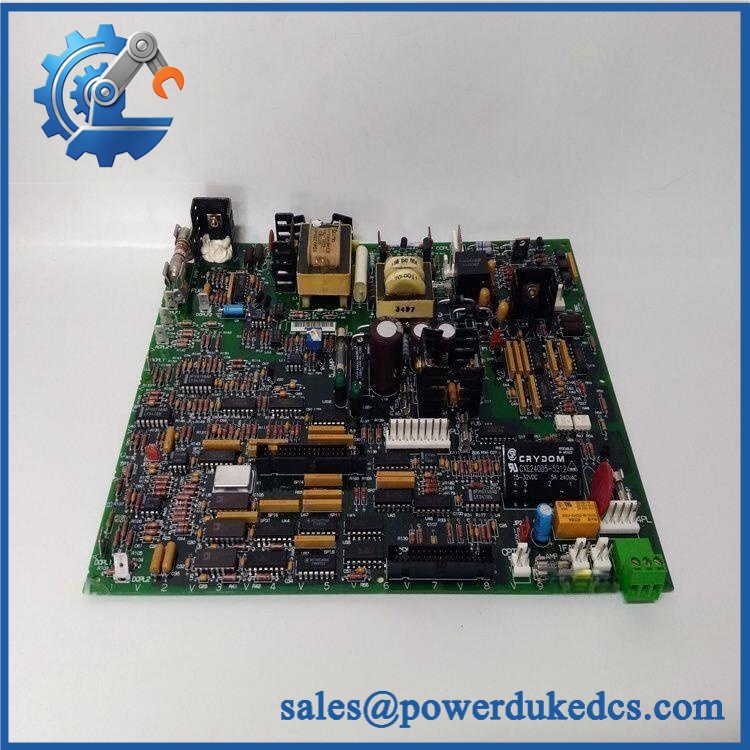

• Model & Brand: GE General Electric 531X303MCPBBG1
• Series: 531X / DC300
• Part Type: MCPB Power Supply Board, commonly identified as Supply Board 4463
• Physical Dimensions: Approximately 144 × 144 × 72 mm (W × H × D); verify the actual assembly before final cabinet or freight documentation.
• Estimated Shipping Weight: Approximately 1.5–1.6 kg for a protected board assembly; actual packed weight should control freight calculations.
• What’s in the Box: 531X303MCPBBG1 board, ESD shielding protection, rigid PCB protection, and applicable QC documentation. External cables, mounting hardware, and other DC300 assemblies are not assumed unless specifically listed.

Product Introduction

The GE 531X303MCPBBG1 is a power-supply PCB used within the legacy GE 531X/DC300 control and drive hardware family. Its large transformer, fuse positions, rectification circuitry, capacitors, and terminal connections distinguish it from the lower-energy signal boards used elsewhere in the same equipment family.

From an asset-management perspective, this is a high-consequence spare because the board’s electrical role is fundamental to the associated control hardware. The exact input and output ratings should be taken from the original GE schematic and the installed board identification (aftermarket records for this part are not sufficiently consistent to establish one universal electrical rating).

Core Technical Specifications

Power and thermal considerations

Do not calculate this board’s thermal output from an assumed wattage copied from a reseller listing. The transformer, switching/rectifier components, and load-dependent losses mean that the actual cabinet heat contribution varies with the specific application.

The board also contains multiple energy-storage capacitors. Before testing, establish the correct discharge procedure and use the original GE electrical documentation for the relevant circuit.

Configuration control

The visible fuse population and potentiometer settings should be treated as part of the asset’s configuration record. A visually similar MCPB board with different protection or adjustment settings is not automatically equivalent.

GE 531X303MCPBBG1

🚨 Global Compliance & Industry Certifications

The 531X303MCPBBG1 is legacy industrial power electronics. Regulatory status should therefore be evaluated against the complete GE 531X/ installation, not claimed independently for the replacement PCB.

• CE Mark: Verify applicability from the relevant historical GE equipment documentation.
• UL/cUL: Confirm the complete /531X equipment configuration and applicable certification record.
• ATEX / IECEx: Do not assume hazardous-area approval for the standalone MCPB board.
• Marine / DNV GL: No standalone marine approval should be assumed without project-specific documentation.
• Electrical safety: The board contains a transformer and energy-storage components, so isolation, grounding, and discharge procedures are part of safe maintenance.
• Country of Origin: Establish from manufacturing traceability or supplier documentation.
• HS Tariff Classification: Confirm the final tariff heading with the importing-country customs broker.

A standard industrial-control approval should not be confused with hazardous-location certification. The latter depends on the exact certified equipment configuration and installation conditions.

Verify specific lot certifications with OEM.

🚨 Long-Term Storage & Asset Preservation Guide

Keep the 531X303MCPBBG1 in an ESD shielding bag and protect the transformer, terminal connections, and fuse area from impact. Do not stack heavy boards directly on top of the assembly.

Store the board in a dry, stable environment without condensation. A practical long-term warehouse target is below approximately 60% RH; avoid corrosive vapors and repeated temperature cycling.

Before release to maintenance, inspect the electrolytic capacitors, transformer, fuse holders, solder joints, connectors, and PCB surfaces for leakage, corrosion, discoloration, or thermal damage. Do not perform capacitor reforming from an assumed voltage or time interval; use the approved GE/ procedure for the exact board.

Record the 531X303MCPBBG1 identifier, visible date code, fuse population, and potentiometer positions in the inventory record. That information can be valuable when a legacy board is required years later and the original cabinet documentation is incomplete.

Physical Installation Prerequisites

Install the board only in the specified GE 531X/ equipment assembly and preserve its original mounting position and connector arrangement.

Before applying power, verify every supply rail from the original schematic. Public records do not establish one sufficiently reliable universal input/output rating for this exact MCPBBG1 variant, so an unverified bench supply should not be used for commissioning.

Check the original fuse ratings before installation. Never increase fuse size to prevent nuisance blowing; repeated fuse operation should trigger investigation of the downstream load, rectifier circuitry, transformer, or capacitor bank.

Maintain the cabinet’s designed airflow and service clearance. There is no sound basis for assigning a universal 50 mm spacing requirement to this board; the original GE cabinet drawing should control.

Provide protective grounding and appropriate lockout/tagout. Allow stored energy to discharge through the approved circuit before touching the transformer, rectifier, or large capacitor area.

Buyer’s FAQ — Logistics & Compliance Focus

Q: What HS Tariff Code should be used for 531X303MCPBBG1?
A: The item is an industrial power-supply PCB, but the final Harmonized System classification depends on the importing country’s tariff schedule and customs interpretation. Have the importer or customs broker confirm the code before the commercial invoice is finalized.

Q: Does the country where the board ships from establish COO?
A: No. Country of Origin should be supported by manufacturing or traceability documentation for the actual 531X303MCPBBG1 or its production lot. Seller location and export port do not independently establish manufacturing origin.

Q: Does this board include the latest firmware pre-loaded?
A: No. The MCPBBG1 is a power-supply board, not a programmable controller. There is no conventional application firmware to load; electrical configuration, fuse arrangement, adjustment settings, and the associated system determine operation.

Q: How should shipping insurance and physical handling be managed?
A: Insure the board for its documented commercial replacement value and photograph the part number, transformer, fuse area, terminal connections, and packaging before dispatch. Use an ESD shielding bag, rigid support around the PCB, cushioning beneath the transformer area, and moisture protection so the approximately 1.5–1.6 kg assembly cannot shift or flex during transportation.
