GE 8724-CA-PS | IS Module Power Supply Carrier

Description

• Model: 8724-CA-PS
• Brand: GE Fanuc Intelligent Platforms / MTL 8000 Process I/O
• Series: 8000 Process I/O / MTL8000
• Part Type: Intrinsically Safe Module Power Supply Carrier
• Core Function: Provides the mechanical mounting and electrical carrier interface for one 8920-PS-DC module within an intrinsically safe MTL8000 I/O node.
• Key Specs: 93 × 168 × 35 mm, approximately 195 g, DIN-rail or four-point panel mounting, compatible with 32- or 64-slot address nodes, and environmental operation from -40°C to +70°C.
• Important Identity Note: 8724-CA-PS is a carrier, not the power-supply electronics themselves. The carrier is designed to accommodate one 8920-PS-DC power-supply module.

Product Introduction

In the MTL8000 / GE 8000 Process I/O architecture, the 8724-CA-PS provides the physical position and electrical interconnection for an 8920-PS-DC system power-supply module. It also passes the relevant Railbus and system control connections between adjacent carrier hardware. The carrier itself is therefore infrastructure hardware rather than a stand-alone DC converter.

For warehouse control, that distinction is critical. A replacement 8724-CA-PS does not substitute for an 8920-PS-DC. The 8724 carrier uses a printed wiring board and molded construction, and its specification explicitly identifies male-in/female-out Railbus connectors for 32- and 64-slot address nodes. This is the sort of small component that is easy to misclassify in an ERP system (and surprisingly difficult to replace correctly after a long outage).

Core Technical Specifications

The manufacturer’s legacy carrier specification identifies the 8724-CA-PS dimensions as 93 mm wide × 168 mm deep × 35 mm high and the weight as approximately 195 g. It also specifies DIN-rail or four-point panel mounting and an operating range of -40°C to +70°C.

The carrier has no independent CPU, firmware, or application memory. Power conversion is performed by the separately installed 8920-PS-DC module, which means the carrier’s own electrical inspection should focus on the PCB traces, connectors, mounting integrity, and interconnection paths.

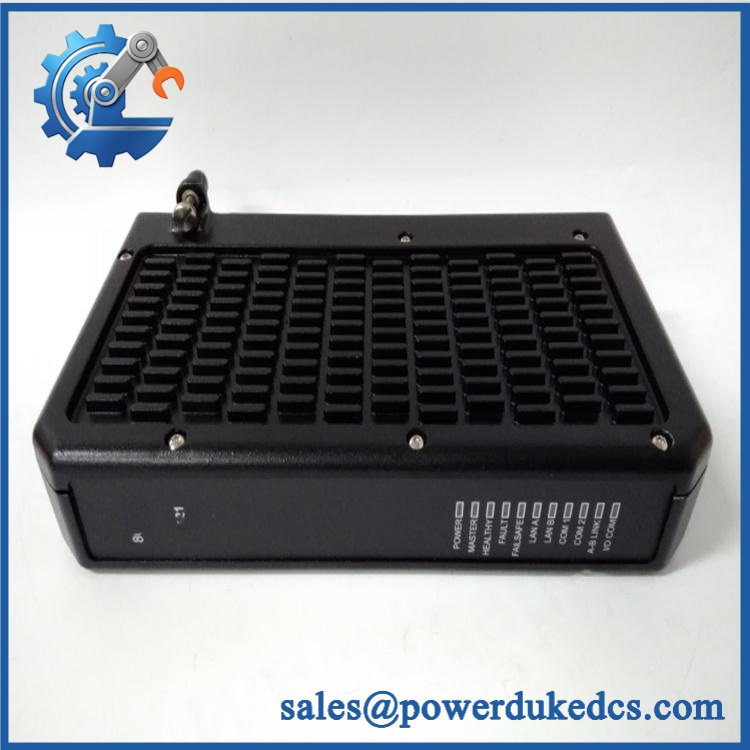

GE 8724-CA-PS

🚨 Global Compliance & Industry Certifications

The legacy GE/MTL carrier documentation specifically identifies the 8724-CA-PS node application for:

• Class I, Division 2, Groups A, B, C, D, T4 hazardous locations
• Zone 2, IIC, T4 hazardous areas

A separate MTL certification document describes the 8920-PS-DC together with its 8724-CA-PS carrier as a certified component arrangement. The certificate states that the assembly provides a galvanically isolated, voltage-clamped 18 V source for MTL8000 I/O modules and identifies the 8724-CA-PS as the mounting arrangement for the 8920-PS-DC.

This distinction matters for compliance work: the carrier and power-supply module form part of a defined certified arrangement. Substituting a visually similar carrier, power module, or wiring configuration can invalidate the assumptions used for the original hazardous-area approval.

The Class I Division 2 / Zone 2 designation is relevant because it addresses equipment use in specified hazardous environments where combustible gases or vapors may occur. It does not independently certify every cabinet, field circuit, or installation method.

Verify specific lot certifications with OEM. Check the physical markings, applicable certificate, revision status, installed 8920-PS-DC module, and project-specific installation requirements before releasing the assembly to a hazardous-area application.

🚨 Long-Term Storage & Asset Preservation Guide

Protect the Railbus connectors. The 8724-CA-PS has male-in/female-out interconnection points, so exposed contacts should remain protected against dust, moisture, and mechanical impact. Do not stack heavy components directly on the connector faces.

Keep the carrier dry and ESD-protected. The published storage range is -40°C to +85°C with 5–95% non-condensing humidity, but a stable warehouse environment with low condensation risk is preferable for multi-year preservation.

Store the carrier with the correct power-supply identity. The 8724-CA-PS is designed to accommodate one 8920-PS-DC. Keep related documentation and, where supplied as a kit, the carrier and power module together in the asset record. Mixing carriers and power supplies from different architectures can create certification and configuration problems.

Before releasing old stock, inspect the PCB, connector surfaces, DIN-rail latch, mounting points, and any corrosion around exposed metal hardware.

Physical Installation Prerequisites

The 8724-CA-PS is designed for DIN-rail or flat-panel installation and provides the mounting interface for one 8920-PS-DC power supply.

• Mounting: Use the specified top-hat or G-section DIN rail, or the four-point panel arrangement shown in the applicable installation documentation.
• Power module: Install only the specified 8920-PS-DC in this carrier.
• Railbus: Maintain the correct male-in/female-out orientation when connecting adjacent carriers.
• Node architecture: Confirm whether the target node uses the 32-slot or 64-slot address capability supported by this carrier.
• Hazardous-area installation: Verify the exact Class I Division 2 or Zone 2 conditions before installation.
• Grounding: Follow the MTL8000 system grounding and shield arrangement. Do not add an improvised bonding path through the carrier PCB.
• Thermal environment: The carrier is rated for -40°C to +70°C operation. Cabinet temperature should be measured at the installed node, not inferred solely from room temperature.
• Humidity: Prevent condensation. The published limit is 5–95% RH non-condensing.
• Clearance: Provide sufficient space for installation, Railbus connections, and removal of the 8920-PS-DC. Do not replace the approved mechanical drawing with a generic 50 mm clearance rule.
• ESD: Use grounded ESD handling procedures whenever the carrier or associated electronics are removed from protective packaging.

Buyer’s FAQ

What HS tariff code should be used for 8724-CA-PS?

The final HS/HTS classification depends on the importing country’s tariff schedule and the customs treatment of an industrial power-supply carrier. Because 8724-CA-PS is a carrier rather than the power converter itself, do not automatically classify it under the tariff heading used for the 8920-PS-DC.

Describe the product clearly on the commercial invoice as an intrinsically safe module power supply carrier for MTL8000 process I/O, then have the customs broker confirm the applicable national tariff code.

What is the Country of Origin?

Country of Origin must be supported by supplier or manufacturer documentation. Do not infer COO from the current GE/Emerson ownership of the product line.

For customs-controlled shipments, keep the COO consistent across the commercial invoice, packing list, and Certificate of Origin where required.

Should I insure a 195 g carrier?

Weight is not the deciding factor. This carrier is part of an intrinsically safe process-I/O power architecture, and the operational impact of losing the correct replacement can be much greater than the carrier’s physical mass. Photograph the part label, connector condition, mounting hardware, and packaging before shipment.

Does 8724-CA-PS contain the latest firmware?

No. The 8724-CA-PS is a passive carrier. It has no CPU, application memory, or independent firmware. The associated 8920-PS-DC contains the power-supply electronics, while the carrier provides mounting and system interconnection.

For a controlled replacement, verify the carrier’s exact part number, connector configuration, mounting arrangement, and compatibility with the specified 8920-PS-DC.

What warranty should I expect?

Warranty depends on the supplier’s written terms and the condition category of the carrier. For legacy hardware, obtain the warranty period, physical inspection scope, actual-part photographs, certification evidence, and return conditions before purchasing. A supplier warranty should not be represented as an OEM factory warranty unless separately documented.
