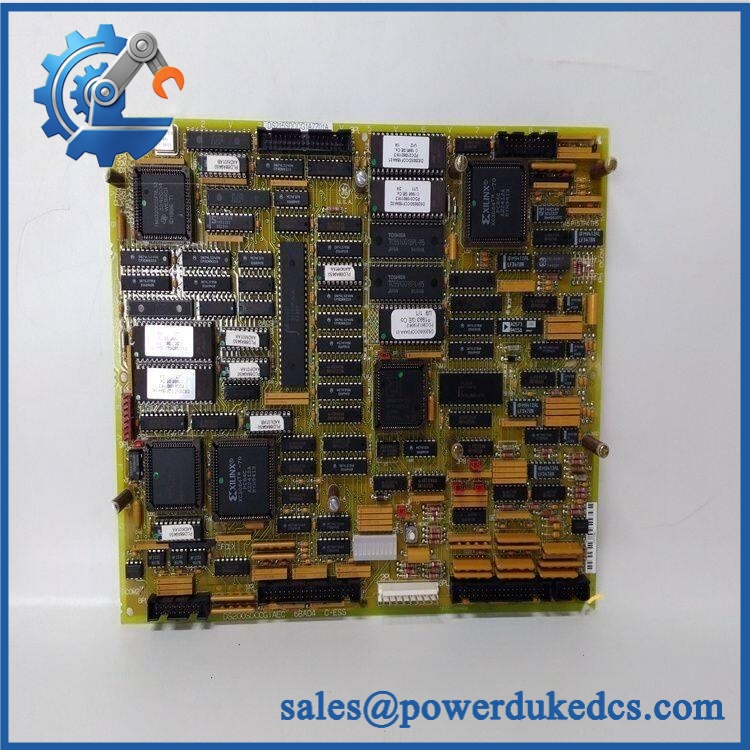

GE DS200SDCCG5AHD | Original Mark V Drive Control Board

Description

• Model & Brand: GE DS200SDCCG5AHD
• Product Family: GE Mark V Speedtronic / DS200
• Functional Abbreviation: SDCC
• Part Type: Drive Control Board / Processor and Interface PCB
• Physical Dimensions: Approximately 280 × 230 × 30 mm according to current supplier data; dimensional records vary by measurement convention, so verify the actual packed unit before freight planning.
• Estimated Net Weight: Approximately 0.55 kg based on current supplier specifications.
• Estimated Shipping Weight: Approximately 0.9–1.3 kg, depending on ESD shielding, cushioning, and export carton.
• Processor Architecture: 3 microprocessors working through dual-port RAM.
• Memory: RAM plus multiple EPROM devices for stored control software/configuration.
• Hardware: Xilinx logic devices, processor circuitry, jumper switches, DIP switches, reset button, resistor networks, capacitors, diodes, vertical pin connectors, and daughterboard mounting standoffs.
• Mounting: Four-corner drilled PCB mounting.
• What’s in the Box: DS200SDCCG5AHD board unless the purchase order explicitly includes daughterboards, mounting hardware, or documentation.
• Condition Control: For factory-sealed inventory, preserve the original packaging and photograph the full board label before opening.

Current technical listings identify the board as a Mark V SDCC drive control card and report a weight around 0.55 kg.

Product Introduction

The GE DS200SDCCG5AHD installs as a principal control PCB within the Mark V Speedtronic architecture, where it provides processor resources and interface circuitry for a drive or exciter application. Three microprocessors share information through dual-port RAM, with dedicated processing roles for drive control, motor control, and co-motor functions. That architecture makes the board materially different from a simple terminal or I/O card (the exact application configuration remains essential during replacement).

The final AHD designation should remain intact in the asset register. Current technical references identify G1, G3, G4, and G5 versions, with no G2 production version, while the documented successor DS215SDCC introduced additional components and is not backward compatible on that basis. For a legacy turbine, exact artwork, hardware revision, installed application, and auxiliary-board configuration should therefore be checked before release from stores.

Core Technical Specifications

The three-processor architecture and major board functions are documented in current technical references. One supplier lists the board at approximately 0.55 kg and 280 × 230 × 30 mm; another reports different dimensional conventions, so the physical values should be treated as approximate for logistics.;

GE DS200SDCCG5AHD

Global Compliance & Industry Certifications

The DS200SDCCG5AHD is a legacy Mark V PCB, so compliance should be established from the applicable Mark V system documentation and the exact hardware revision.

• CE Mark: Do not assume standalone CE conformity for the loose board. CE documentation, where applicable, normally relates to the complete equipment and installation.
• UL/cUL: A standalone UL/cUL listing for DS200SDCCG5AHD was not verified from reliable primary documentation. Record certification as unverified unless the applicable GE certificate confirms it.
• ATEX / IECEx: The SDCC board should not be represented as an intrinsically safe component. Hazardous-area suitability depends on the complete turbine-control equipment, enclosure, barriers, wiring, and installation approval.
• Marine / DNV: No standalone DNV certification was established for this specific PCB.
• EMC: EMC conformity should be evaluated against the Mark V cabinet/system documentation and original installation requirements.
• Functional Safety: The board performs important turbine/drive control functions, but the existence of multiple processors does not by itself establish an independent SIL certification for the loose PCB.

For compliance audits, preserve the board identification label, hardware revision, system-level declaration/certificates, and installation approval as separate controlled records.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

Keep the in an ESD shielding bag. This board has numerous exposed integrated circuits, vertical connectors, switches, and component leads. Never store an unprotected PCB directly against another board, conductive packaging, or metal shelving.

Use controlled humidity for long-term inventory. A warehouse target below 60% RH is preferable for multi-year storage, even where the operating environment permits higher non-condensing humidity. Place desiccant inside sealed packaging when appropriate, but prevent the desiccant from contacting the PCB.

Photograph every configuration element before test work. The SDCC contains DIP switches, jumpers, and a reset switch, and moving one position can change the installed system behavior. Record switch and jumper positions before any energized bench testing (especially on a turbine spare that may have application-specific settings).

Protect the connector field. Use rigid foam around the perimeter of the PCB rather than directly loading the vertical connectors or daughterboard standoffs during storage and transport.

Physical Installation Prerequisites

The is a board-level Mark V assembly, not a DIN-rail module. Its drilled corners and vertical connector arrangement are intended for mounting within compatible GE control equipment.

Cabinet clearance: Preserve the original Mark V mechanical spacing and airflow path. Do not impose an arbitrary 50 mm clearance if the existing cabinet design specifies a different board-to-board arrangement.

Power: The public documentation reviewed does not provide a reliable standalone supply specification for the bare SDCC PCB. Do not apply external power directly from a generic bench supply unless the exact Mark V test procedure defines the required source, connector, and current limits.

Grounding: Follow the Mark V cabinet grounding and board-mounting arrangement. The mounting hardware and chassis form part of the intended electrical/mechanical system.

Connector handling: Align every vertical pin connector squarely before insertion. Never use the PCB edge or component bodies as a lever when seating the board.

Configuration control: The DCP/MCP/CMP processing architecture means that this card is application-specific. Preserve the installed board’s DIP/jumper settings and any attached daughterboards before replacement.

Buyer’s FAQ — Logistics & Compliance Focus

Q: What HS Tariff Code should be used for ?
A: A classification under HS 8538.90 may be considered for a control-system PCB used as part of electrical control equipment, but the exact national tariff classification depends on the importing country’s tariff schedule and the board’s declared function. Provide the broker with the complete description: GE Mark V SDCC Drive Control Board, processor/interface PCB for turbine drive or exciter control. Do not treat another supplier’s code as authoritative.

Q: What Country of Origin should appear on the commercial invoice?
A: Use the actual manufacturing origin supported by the board label or traceable GE documentation. Several secondary listings report USA, but that should be confirmed for the specific physical unit or lot before making a formal COO declaration.

Q: Do I need shipping insurance for one SDCC board?
A: For an operating Mark V turbine, insurance is prudent. The board is relatively light—roughly 0.55 kg in one published specification—but scarcity and turbine downtime can make the commercial replacement exposure much higher than the freight cost. Use ESD shielding, rigid cushioning, moisture protection, tracking, and cargo insurance based on the declared replacement value.

Q: Does the arrive with the latest firmware pre-loaded?
A: This is not a modern PLC CPU with a user-managed firmware package. The SDCC contains processor circuitry and EPROM-based program storage, so the installed hardware/software revision must be checked against the turbine application. Do not assume a different SDCC revision or the DS215SDCC successor will be compatible merely because the board family is similar. Current technical references specifically state that DS215SDCC is not backward compatible because of added components.
