GE IS200AEPAH1ACB | Mark VI AEPA Excitation Control Board

• Brand: GE
• Full Model Number: IS200AEPAH1ACB
• Lifecycle Status: Legacy / Obsolete
• Core Function: AEPA control and interface assembly for GE turbine/alternative-energy control applications
• Top 3 Technical Specs: IS200 Mark VI hardware; AEPA board designation; Auxiliary board with FPGA and multiple field/interface connectors
• Stock & Condition: Physical stock verification required; New Surplus / Tested Refurbished; Emergency dispatch subject to QA release

Module 3: Obsolescence & Supply Chain Deep Dive

A failed GE IS200AEPAH1ACB can create a difficult sourcing problem when a facility is maintaining an installed Mark VI control system and the original PCB is no longer part of routine production. Available technical records identify the IS200AEPAH1ACB as an AEPA board used within GE control equipment, with a main PCB carrying an auxiliary card, FPGA, terminal blocks, fuses, and multiple connectors. Industry inventory references also associate the AEPA family with GE Energy alternative-energy pitch assemblies, so the exact application and board configuration must be established before procurement.

Replacing the failed board instead of redesigning the complete control architecture can materially reduce TCO. The avoided costs can include cabinet engineering, field rewiring, application redevelopment, commissioning, operator intervention, outage labor, and a new spare-parts strategy. For a legacy installation that remains technically serviceable, a verified IS200AEPAH1ACB can preserve the installed hardware base while postponing a larger migration decision. —Though surplus inventory can bypass extended factory lead times, the buyer should still verify the exact revision, connector arrangement, application, and associated hardware before issuing the PO.

Module 4: Compatibility & Replacement Matrix

Estimated switch cost/time: For a tested replacement already staged on-site, plan approximately 2–6 hours for controlled removal, installation, wiring verification, configuration review, and functional checkout. A newly sourced unit may require 1–5 business days for inspection and expedited transportation, depending on location and carrier cutoff. These are planning estimates rather than guaranteed outage durations.

Field Traps — Watch Out

• Application ambiguity: AEPA references appear across GE alternative-energy pitch and other control applications. Confirm the actual cabinet function and drawing reference rather than identifying the replacement solely from the model number.
• Revision mismatch: The IS200AEPAH1ACB contains an auxiliary PCB with an FPGA and multiple connectors. A visually similar AEPA board with a different revision may not have an identical hardware configuration.
• Connector configuration: Verify every mating connector and terminal interface against the installed board before installation. Do not assume a neighboring IS200 board is electrically interchangeable.
• Configuration retention: Record existing hardware settings, jumper/switch positions where applicable, and associated controller configuration before removing the failed board.

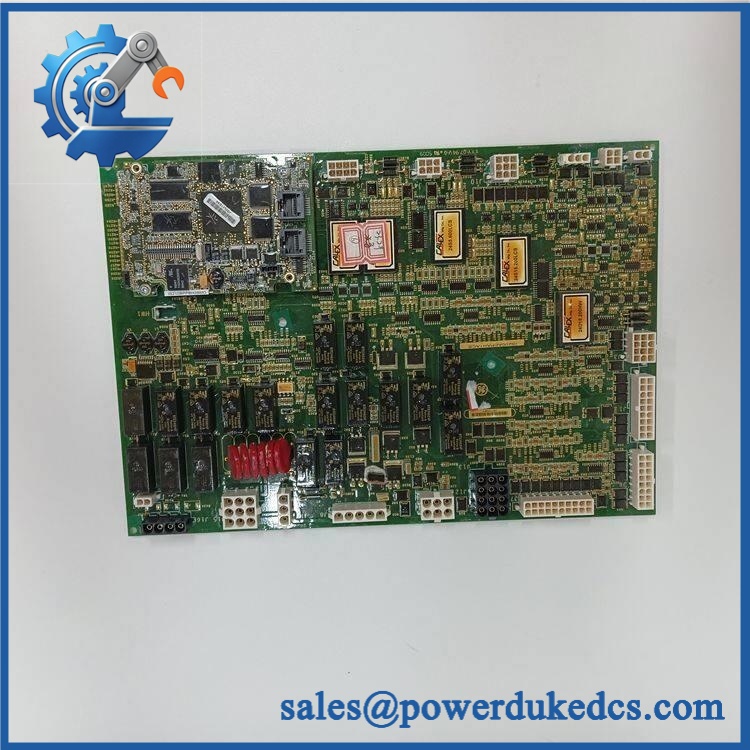

  GE IS200AEPAH1ACB

Module 5: Quality Assurance & Testing SOP

A legacy GE PCB should be qualified as a complete hardware assembly rather than accepted on appearance alone.

• Part-number verification: Confirm IS200AEPAH1ACB, revision markings, serial/traceability information, and all GE identification labels.
• OEM anti-counterfeit visual inspection: Examine GE markings, PCB identifiers, component placement, connectors, terminal blocks, mounting features, solder quality, and evidence of unauthorized rework.
• Auxiliary-board inspection: Verify the auxiliary card is correctly mounted and inspect its FPGA, connectors, capacitors, resistors, diodes, and transistors for physical or thermal damage.
• PCB condition inspection: Check for corrosion, cracked components, damaged connectors, lifted pads, contamination, and discoloration.
• Fuse and protection check: Inspect the three documented fuses and associated protection components for physical damage and continuity where appropriate.
• Continuity testing: Verify applicable power, ground, and accessible signal paths before functional energization.
• Power-on self-test (POST): Where the appropriate GE test environment is available, energize the assembly and verify expected startup behavior and status indications.
• Interface testing: Confirm expected communication and signal behavior through the applicable Mark VI test configuration.
• I/O functional testing: Exercise supported signal paths using controlled test inputs and verify corresponding responses.
• I/O load testing: Apply representative simulated loads where supported by the fixture while monitoring signal stability and board temperature.
• Extended observation: Operate the assembly under controlled conditions to identify intermittent faults that might not appear during initial startup.
• Configuration verification: Photograph and document relevant jumpers, switches, connectors, board revision, and associated configuration information.
• Final QC release: Record serial number, revision, measured results, photographs, condition grade, test date, and QC approval.

The supplier’s condition statement should distinguish clearly between new surplus, used-tested, and refurbished inventory. That distinction matters when calculating the remaining lifecycle value of a discontinued board.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the GE IS200AEPAH1ACB genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact IS200AEPAH1ACB nameplate and revision before the PO is accepted. Emergency dispatch depends on QA completion, warehouse location, carrier pickup time, and destination. Same-day shipment should only be confirmed after the actual unit has been identified and released.

Q2. How do you guarantee the condition and authenticity of an obsolete IS200AEPAH1ACB?
The qualification process should include exact part-number verification, OEM visual inspection, PCB and auxiliary-board examination, electrical screening, functional testing, and documented QC results. Actual photographs of the board identification and physical condition should accompany the procurement record.

Q3. Are firmware compatibility issues something engineers should check before issuing the PO?
Yes. The board itself should not be assumed to be universally interchangeable across every GE application simply because the base IS200 number matches. Record the installed control-system configuration, board revision, associated hardware, and relevant firmware before replacement.

Q4. Can another IS200AEPA variant replace the IS200AEPAH1ACB?
Not without engineering verification. GE inventory references show multiple AEPA variants, including different suffix configurations. Connector arrangement, auxiliary-board construction, revision, and application must be matched before substitution.

Q5. What warranty and return terms should be written into the PO?
Specify warranty duration, DOA coverage, functional-failure coverage, return authorization procedure, inspection period, and serial-number traceability. For refurbished inventory, require the actual test record and clearly define whether failures discovered during commissioning are covered.
