GE IS200DSPXH1DBC | Mark VI DSPX Digital Signal Processor Board

• Brand: GE Industrial Systems
• Full Model Number: IS200DSPXH1DBC
• Lifecycle Status: Legacy / Obsolescence-risk
• Core Function: Digital Signal Processor Control Board for Innovation Series drives and EX2100 excitation control
• Top 3 Technical Specs: 60 MHz DSP | DSPX ASIC | ISBus/backplane interface
• Stock & Condition: Physical stock confirmation required | New Surplus / Tested Refurbished by lot | Emergency dispatch subject to inventory and carrier cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

A failed DSPX board can interrupt excitation regulation or drive control, and an exact legacy replacement is often preferable to redesigning the surrounding control system. GE documentation identifies the IS200DSPX as the primary controller for bridge, motor-regulator, and gating functions in Innovation Series drives, while it also handles generator-field control functions in the EX2100 Excitation Control system. The board combines a high-performance DSP, memory, and a dedicated ASIC for control and interface processing. The IS200DSPXH1DBC is specifically identified with a 60 MHz DSP and conformal coating.

Replacing the board at the component level can preserve the installed drive or excitation architecture and avoid a much larger engineering project. That means less application redevelopment, fewer cabinet modifications, and a smaller commissioning scope. The board’s exact revision matters: GE documentation states that several DSPX variations exist, while replacement guidance specifically warns that the complete alphanumeric catalog number must match. (For older EX2100 or Innovation Series equipment, verified surplus inventory may shorten the sourcing cycle substantially.) The TCO calculation should therefore include outage exposure, field engineering, reconfiguration, testing, and generator or drive recommissioning—not just the replacement board price.

Module 4: Compatibility & Replacement Matrix

The GE technical description identifies the DSPX as a controller with P1/P2 backplane plugs, an ISBus interface, a P5 emulator connection, a P6 engineering monitor port, board ID PROM, and dedicated control logic.

Field Traps — Watch Out

• Full catalog-number mismatch: Do not substitute a board based only on the DSPX designation or the shorter IS200DSPXH1D family reference. Published replacement guidance explicitly states that all catalog-number characters are important.
• Application configuration: The same DSPX family serves different control applications. Verify whether the installed board is serving an Innovation Series drive or EX2100 excitation system, then match the application code and configuration before energization.

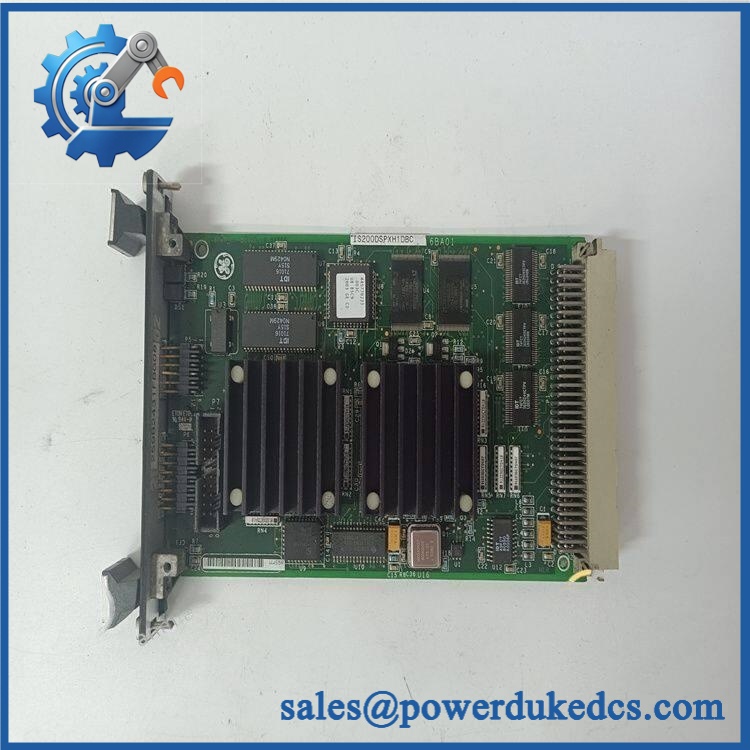

GE IS200DSPXH1DBC

Module 5: Quality Assurance & Testing SOP

A strict pre-shipment inspection for IS200DSPXH1DBC should include:

• Identity verification: Confirm the complete IS200DSPXH1DBC catalog number, functional revision, artwork revision, serial information, and board markings.
• OEM anti-counterfeit visual inspection: Examine GE identification labels, PCB markings, component placement, connectors, solder work, conformal coating, and signs of unauthorized repair.
• Mechanical inspection: Check the PCB, card edges, P1/P2 backplane connectors, P5 emulator port, P6 monitor port, mounting hardware, and faceplate for damage or contamination.
• Power-on self-test (POST): Install the board in an approved GE test environment and verify initialization, status indications, and fault indications.
• DSP processor test: Confirm normal processor startup and execution using the appropriate GE diagnostic/test environment.
• Memory test: Verify accessible Flash, SRAM, and nonvolatile memory functions under controlled conditions.
• ISBus/backplane communication test: Confirm stable communication through the applicable backplane and serial interfaces.
• Engineering monitor test: Verify the P6 engineering monitor interface and applicable diagnostic communication.
• Application functional test: For EX2100 applications, test representative excitation-control functions; for Innovation Series drive applications, test applicable regulator and gating interfaces.
• Thermal/load test: Run the board under representative operating conditions while monitoring diagnostics, temperature behavior, and communication stability.
• Final QC: Record serial number, revision information, test results, condition grade, photographs, and packaging approval before release.

GE documentation identifies the DSPX as containing a 60 MHz processor, ASIC, memory, ISBus interfaces, and dedicated engineering/emulator ports, so testing should cover more than a basic power-up check.

Module 6: Procurement & Lifecycle FAQ

Is the GE IS200DSPXH1DBC genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be confirmed against the complete catalog number before the PO is released. Emergency dispatch depends on stock location, payment clearance, export documentation, and the daily carrier collection cutoff.

How do you verify the condition and authenticity of an obsolete DSPX board?
Require complete catalog-number and serial verification, OEM marking inspection, conformal-coating and PCB examination, power-up diagnostics, DSP execution testing, backplane communication testing, and application-specific functional testing. The condition should be explicitly stated as New Surplus or Tested Refurbished.

Are there firmware or configuration issues my engineers should check before issuing the PO?
Yes. DSPX boards can serve different applications, and GE documentation identifies several DSPX variations. The installed board’s complete catalog number, application code, revision, and system configuration should be documented before replacement.

Can the be used as a direct replacement?
Treat it as a conditional drop-in replacement only when the complete catalog number, hardware revision, application, and system configuration are matched. GE replacement guidance specifically emphasizes matching the full alphanumeric catalog number.

What warranty and return terms should procurement require?
The quotation should specify the exact board number and revision, serial traceability, condition grade, pre-shipment testing scope, warranty duration, DOA coverage, and return authorization procedure. For legacy excitation and drive-control hardware, these details establish the acceptance criteria for the supplied board.
