GE IS410STAIS2A IS400STAIS2AED | Mark VIeS Analog I/O Terminal Board

Description

GE IS410STAIS2A Mark VIeS Analog I/O Terminal Board

The 10-Second Procurement Snapshot

• Brand: GE
• Full Model Number: IS410STAIS2A
• Ordering / Reference Number: IS400STAIS2AED
• Lifecycle Status: Active for IS410STAIS2A in GE Mark VIeS documentation; verify current OEM availability at RFQ stage
• Core Function: Mark VIeS simplex analog I/O terminal board
• Top 3 Technical Specs: 10 analog inputs + 2 analog outputs | 16-bit A/D conversion | 0.1% full-scale analog-input accuracy
• Analog Input Span: Channels 1–8: 1–5 VDC, ±5 VDC, ±10 VDC, 0–20 mA | Channels 9–10: 0–20 mA, ±1 mA
• Analog Output: 0–20 mA | 14-bit D/A conversion | 800 Ω maximum load
• Compatible I/O Pack: IS420YAICS1B, one pack in simplex configuration
• Mounting: DIN rail
• Operating Temperature: -40 to 70°C
• I/O Scan Rates: 10 ms, 40 ms, 80 ms, 160 ms
• Stock & Condition: Physical stock to be confirmed against the requested quantity; New Original or New Surplus subject to available inventory
• Dispatch: Same-day emergency shipment subject to stock verification and carrier cutoff

GE’s Mark VIeS technical documentation identifies IS410STAIS2A as a Mark VIeS Analog I/O terminal board with Active lifecycle status. The documented simplex arrangement uses one IS420YAICS1B I/O pack, and the module provides 10 analog inputs plus 2 analog outputs.

Obsolescence & Supply Chain Deep Dive

When a Mark VIeS analog I/O channel fails, the procurement problem is often much narrower than a complete controls replacement. IS410STAIS2A is the terminal-board portion of a GE Mark VIeS analog I/O assembly, so maintenance teams can target the affected hardware while preserving the installed controller, cabinet, field wiring, and application configuration. GE specifies a 12-channel module with 10 analog inputs and 2 analog outputs, 16-bit analog-input conversion, and 0.1% full-scale analog-input accuracy across the stated operating temperature range.

The TCO argument is mainly about avoiding unnecessary system work. A correctly matched terminal board can eliminate the engineering, panel modification, software validation, commissioning, and outage exposure associated with a wider migration. The technical boundary must remain clear: IS410STAIS2A is not the complete I/O pack. GE specifies the separate IS420YAICS1B pack for this simplex assembly, while supplier records commonly associate IS400STAIS2AED with the ordering reference. Because that latter association is not explicitly identified in the GE technical table, procurement should verify the physical board marking and supplied documentation before releasing the PO.

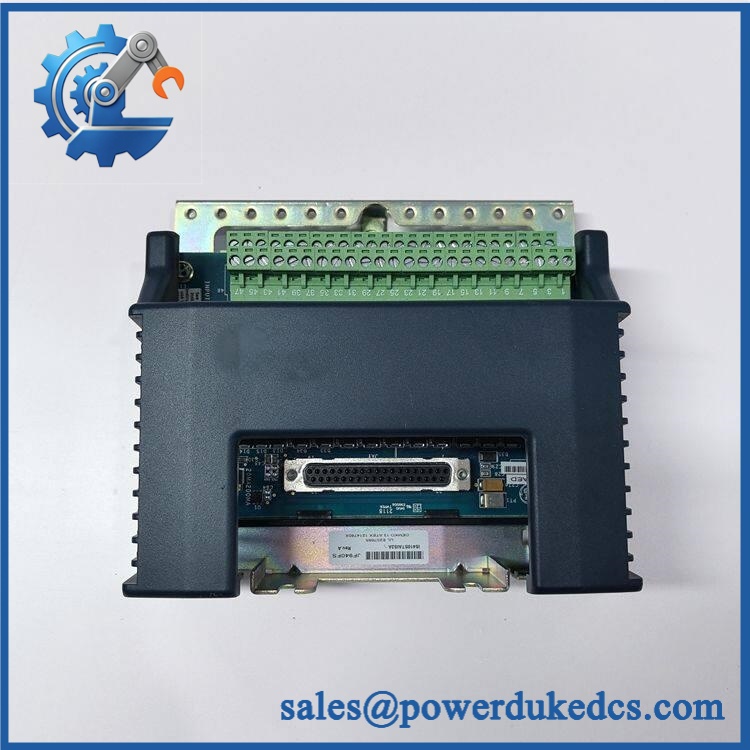

GE IS410STAIS2A IS400STAIS2AED

Compatibility & Replacement Matrix

*These are planning estimates, not fixed quotations. Actual cost depends on site labor rates, outage access, engineering review, field commissioning, and required replacement scope.

Field Traps to Watch Out For

Terminal board versus I/O pack: GE treats the terminal board and analog I/O pack as separate orderable components. uses the IS420YAICS1B in a simplex configuration. Buying the wrong component can leave the maintenance team with a physically correct-looking but incomplete assembly.

Channel capability is not identical across all inputs: GE specifies channels 1–8 for 1–5 VDC, ±5 VDC, ±10 VDC, and 0–20 mA. Channels 9–10 support 0–20 mA and ±1 mA. Confirm the plant’s loop schedule before substituting the board.

IS400STAIS2AED identification: Some supplier records use IS400STAIS2AED as the ordering-information reference associated with . GE’s published technical table itself identifies the terminal-board part number as . Treat the two identifiers as a procurement cross-reference only after the physical unit, label, and revision are checked.

Quality Assurance & Testing SOP

For a surplus or legacy-stock terminal board, acceptance testing should separate identity verification from functional validation. The test record should remain tied to the actual serial or identification markings of the shipped unit.

Incoming identity inspection

• Record as the principal catalog number
• Record IS400STAIS2AED when it appears as the ordering/reference identifier
• Photograph labels, revision markings, terminal blocks, connectors, board surfaces, and mounting hardware
• Compare physical construction and markings with known GE reference documentation
• Perform OEM anti-counterfeit visual inspection
• Inspect terminals and connectors for corrosion, cracking, bent contacts, contamination, or impact damage
• Verify that the board is free from unauthorized component substitution or unexplained rework

Electrical and functional inspection

• Perform preliminary resistance and insulation checks appropriate to the test fixture
• Assemble the board with the specified IS420YAICS1B I/O pack for functional testing where required
• Apply controlled 28 VDC I/O-pack power within the documented operating requirements
• Perform power-on self-test (POST) checking for ERR/RUN LEDs and other available health indications
• Verify incorrect-terminal-board diagnostics where supported by the test environment
• Confirm I/O-pack recognition and communication status
• Simulate representative analog signals across supported voltage and current ranges
• Validate channels 1–8 against applicable 1–5 VDC, ±5 VDC, ±10 VDC, and 0–20 mA configurations
• Validate channels 9–10 against applicable 0–20 mA and ±1 mA configurations
• Exercise both analog outputs across the 0–20 mA range
• Verify output operation using a controlled load up to the documented 800 Ω maximum
• Perform I/O load testing using calibrated measurement equipment
• Record abnormal diagnostic events, measured values, unit identification, and test disposition

GE documents power-up self-test, continuous monitoring of internal power supplies, incorrect-terminal-board detection, analog-output health monitoring, and configurable hardware-limit checking as part of the Mark VIeS analog I/O diagnostic set.

Pre-shipment release

• Match the shipped unit against the PO catalog number
• Confirm physical revision and ordering reference
• Record condition classification
• Complete ESD protection and mechanical packaging
• Retain photographs and test results for traceability
• Include the applicable inspection record with the shipment documentation

Procurement & Lifecycle FAQ

Is the GE genuinely in stock, and what is the cutoff for emergency shipping?

Stock should be confirmed against the physical warehouse unit rather than relying on a website quantity. For emergency orders, the quotation should state the available quantity, dispatch date, destination, and carrier cutoff. Same-day dispatch depends on physical stock confirmation and the carrier’s local acceptance window.

How do you verify the condition and authenticity of an obsolete or surplus ?

The unit should pass catalog-number verification, label and revision inspection, connector inspection, PCB examination, controlled power-up, diagnostic observation, and functional analog I/O testing. A surplus unit should be identified as surplus rather than represented as factory-new unless its condition can be supported by the available documentation.

Are there firmware or configuration issues engineers should check before issuing the PO?

Yes. The engineering review should confirm the Mark VIeS system configuration, installed I/O pack, analog channel assignment, signal type, scaling, and terminal-board revision. GE documents specifically as a simplex terminal board with one I/O pack.

Is the same item as ?

Supplier catalogs frequently present as the ordering/reference identifier associated with . GE’s published technical documentation names as the terminal-board part number. For procurement control, verify both identifiers against the actual nameplate and supplied unit rather than approving the PO from a text-only cross-reference.

What are the warranty and return terms?

The quotation should state the warranty duration and return conditions for the exact unit supplied. A clear industrial spare-parts policy should distinguish confirmed DOA or non-conforming goods from failures caused by incorrect wiring, incompatible system configuration, installation error, or unauthorized modification. The applicable terms should be agreed in writing before shipment.
