Description
- Brand | GE General Electric
- Full Model Number | IS410STCIS2A
- Ordering Reference | IS400STCIS2AFF
- Lifecycle Status | Active per GE technical documentation
- Core Function | Mark VIeS 24 V DC simplex contact input terminal board
- Top 3 Technical Specs | 24 input channels; 24 V DC nominal 20–32 V DC; 1 ms SOE sampling
- I/O Pack | IS420YDIAS1B × 1 ordered separately
- Safety Rating | IEC 61508 compliant
- Mounting | DIN rail
- Stock & Condition | Physical availability verified by lot; New Original or New Surplus condition stated on quotation
- Dispatch | Emergency cutoff confirmed against payment status and warehouse release time
Obsolescence & Supply Chain Deep Dive
A failed STCI terminal board can stop a safety contact-input point from being serviced even when the controller and field devices remain operational. GE specifies the IS410STCIS2A as the 24 V DC STCI terminal board for the Mark VIeS Functional Safety Contact Input module, providing 24 discrete contact inputs and working with one IS420YDIAS1B I/O pack. GE’s technical documentation lists the IS410STCIS2A lifecycle status as Active, so this is not the same procurement problem as sourcing a discontinued legacy board. The important constraint is configuration: this board is the 24 V DC version, while IS410STCIS4A is specified for 48 V DC.
For TCO analysis, replacing the terminal board is materially smaller in scope than redesigning a Mark VIeS contact-input architecture. Existing DIN-rail mounting, field wiring, controller configuration, and safety engineering can remain intact when the failed unit is replaced with the same part number and the paired YDIA I/O pack is suitable. That can reduce outage labor, re-engineering, validation work, and spare-system inventory costs. —Supply-chain planning should still include the separate IS420YDIAS1B requirement, because the terminal board itself is not the complete I/O module. GE identifies the YDIA pack as a separately ordered component.
Compatibility & Replacement Matrix
| Existing Configuration | Replacement Assessment | Engineering Action | Budgetary Switch Time |
|---|---|---|---|
| IS410STCIS2A → IS410STCIS2A | Drop-in Replacement | Match part number, terminal arrangement, field wiring, and safety-system configuration | 30–90 minutes hardware work |
| IS400STCIS2AFF reference → IS410STCIS2A | Drop-in Replacement when ordering reference is confirmed | Verify the procurement reference corresponds to the installed | 30–90 minutes |
| IS410STCIS4A → | Not a direct replacement | Review field voltage and wiring before changing from 48 V DC to 24 V DC architecture | 2–4 hours engineering review plus field work |
| + IS420YDIAS1B → same assembly | Direct component replacement | Verify YDIA pack identity and terminal-board pairing | 30–90 minutes |
| Different GE Mark VI or Mark VIe terminal architecture → | Hardware Modification / architecture review | Confirm controller family, safety configuration, field voltage, I/O pack and certification requirements | Project-specific |
Software Compatibility: The is a terminal board rather than a firmware-bearing processor module. No firmware flash is normally required for the terminal board itself. The paired IS420YDIAS1B is the active I/O pack and should be checked separately for its configuration and firmware requirements. GE identifies the IS420YDIAS1B as the I/O pack used with the STCI terminal board.
Budgetary switching cost: For an exact same-part replacement, an internal planning allowance of approximately 150–600 USD for field labor and engineering review is reasonable before travel, outage charges, and system validation. This is a planning estimate rather than an OEM quotation.
Field Traps to Watch Out For
24 V DC versus 48 V DC: is specified for 24 V DC nominal, with an input wetting range of 20–32 V DC. IS410STCIS4A is the 48 V DC version, specified at 43–53 V DC. Installing the wrong terminal board can create a field-interface mismatch that should be caught before energization.
I/O pack not included: The terminal board and I/O pack are separate orderable parts. GE specifies , for the STCI module. A purchase order for alone does not automatically provide the complete contact-input assembly.

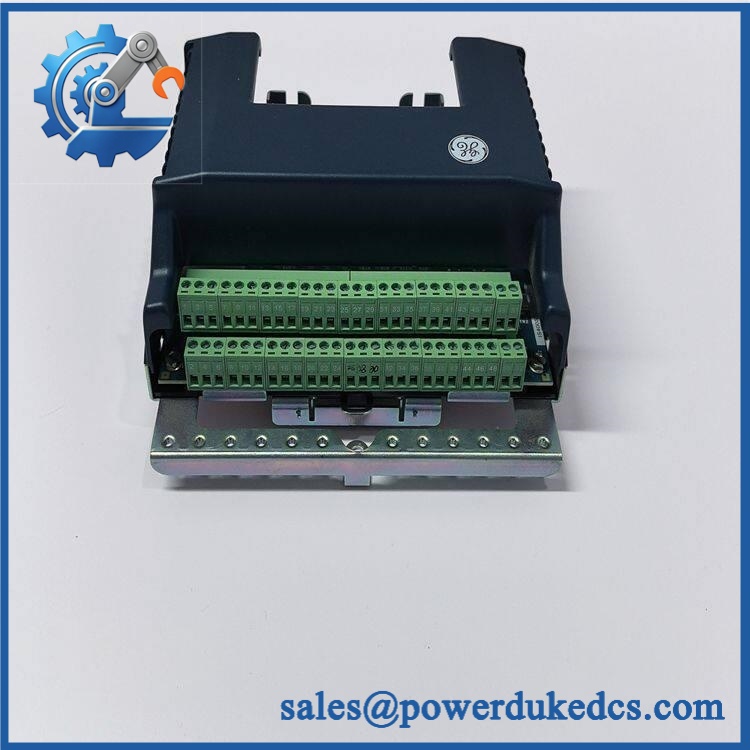

GE IS410STCIS2A
Quality Assurance & Testing SOP
OEM anti-counterfeit visual inspection — Verify the GE nameplate, catalog number, revision markings, terminal-board identification, connector geometry, terminal blocks, DIN-rail mounting features, PCB condition, solder quality, conformal coating, and evidence of unauthorized rework. Any mismatch between quoted and physical identification places the unit on QA hold.
Mechanical inspection — Check all terminal positions, retaining hardware, mating connectors, mounting clips, board supports, and enclosure interfaces. Confirm that no terminal has loosened during storage or transportation.
Electrical continuity test — Measure continuity across the relevant terminal paths against the expected board topology. Verify that there are no unintended shorts, open circuits, damaged traces, or abnormal resistance readings.
24 V DC input simulation — Apply controlled representative contact-input conditions within the specified operating range. Confirm that the terminal board passes the expected signals through the paired I/O architecture without abnormal voltage drop or intermittent contact behavior.
I/O load testing — Use representative resistive or controlled signal loads to exercise the configured contact-input paths. Monitor signal stability during repeated switching cycles rather than accepting a single static measurement.
Power-on self-test verification — When the supplied configuration includes the , perform the pack’s controlled startup test and inspect the expected status indications, including normal RUN/health behavior and absence of fault indications. The POST procedure applies to the I/O pack, not the passive terminal board itself.
SOE verification — Where the complete Mark VIeS input assembly is available for functional testing, verify the configured sequence-of-events behavior against the expected 1 ms sampling specification. GE documents SOE support for the STCI module.
Final traceability record — Record model number, ordering reference, hardware revision, serial information where applicable, inspection date, electrical test results, photographs, packaging condition, and customer-specific acceptance criteria before shipment.
Procurement & Lifecycle FAQ
Is the GE genuinely in stock and what is the emergency shipping cutoff?
Physical inventory should be confirmed against the actual warehouse lot before the PO is released. The commercial quotation should state available quantity, condition, inspection status, payment clearance requirement, and the same-day dispatch cutoff. Stock is not assumed from catalog availability alone.
How do you guarantee the condition and authenticity of the ?
The supplied unit should undergo GE identification and anti-counterfeit visual inspection, mechanical examination, terminal inspection, and electrical continuity testing. For an assembly that includes the , the I/O pack should also undergo controlled power-up and functional testing. The final commercial documents should identify the supplied condition and applicable warranty.
Are there firmware compatibility issues before issuing the PO?
The itself is a terminal board and does not normally require a firmware flash. The associated is the firmware-bearing component, so the engineering team should verify its configuration and site software requirements before installation. GE specifies the YDIA pack as the I/O pack for this STCI arrangement.
Can replace IS410STCIS4A?
No automatic substitution should be approved. is the 24 V DC version, while IS410STCIS4A is specified for 48 V DC contact inputs. Field voltage must be confirmed before changing between these terminal boards.
What are the warranty and return terms?
The quotation and PI should specify the warranty period, DOA reporting window, return authorization procedure, testing scope, and return-freight responsibility. For surplus inventory, the purchase documents should also identify the exact condition supplied and the tested serial or traceability information where available.
