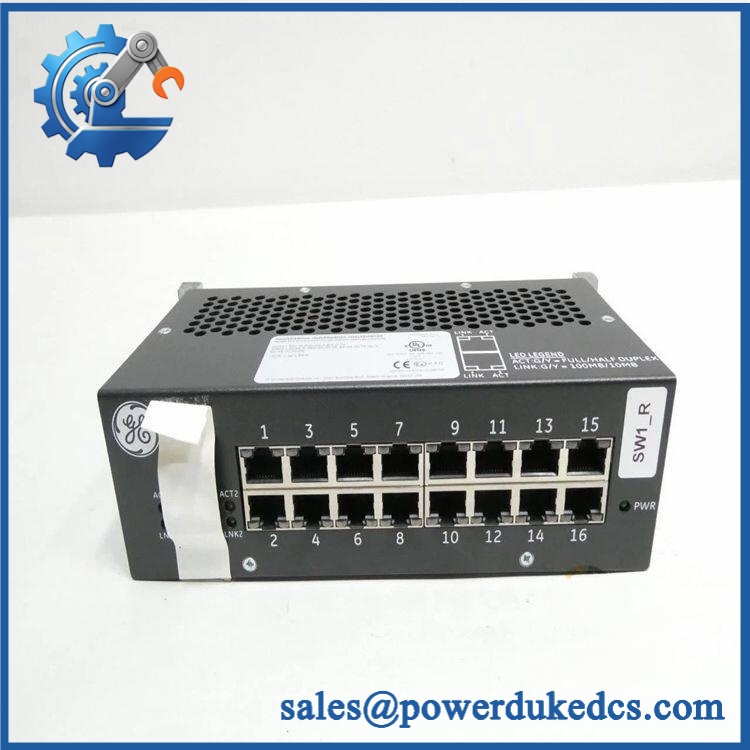

GE IS420ESWBH2A | Mark VIe IONet Industrial Ethernet Switch

Description

• Brand: GE General Electric
• Full Model Number: IS420ESWBH2A
• Lifecycle Status: Active
• Core Function: Mark VIe and Mark VIeS IONet industrial Ethernet switching
• Top 3 Technical Specs: 16 × 10/100Base-TX RJ-45 copper ports; 2 × 100Base-FX multimode fiber ports with LC connections; 24/28 VDC redundant power inputs
• Network Standard: IEEE 802.3 / 802.3u / 802.3x
• Fiber Configuration: Dual 100Base-FX multimode fiber
• Power Requirement: 24/28 VDC 1 A maximum
• Power Architecture: Two independent inputs with diode-OR redundancy
• Dimensions: 18.8 × 8.6 × 5.6 cm
• Cooling: Convection cooled
• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Mounting: DIN rail with qualified mounting clip
• Stock & Condition: New Surplus / unused stock subject to physical inventory confirmation
• Dispatch: Same-day emergency processing subject to QC and carrier cutoff

GE documentation identifies the IS420ESWBH2A as an active Mark VIe IONet switch with 16 copper ports, two 100Base-FX multimode fiber ports, redundant 24/28 VDC power inputs, convection cooling, and DIN-rail mounting.

Obsolescence & Supply Chain Deep Dive

A failed IONet switch can interrupt communications across a group of Mark VIe I/O packs, making a relatively small hardware fault an outage-critical procurement event. IS420ESWBH2A is not listed as obsolete in GE’s current technical documentation; its stated lifecycle status is Active. The specific H2A configuration matters, however. It provides 16 RJ-45 10/100Base-TX copper ports plus two 100Base-FX multimode fiber ports with LC-type connections, so an H1A, H3A, H4A, or H5A unit should not be treated as equivalent simply because the ESWB family name matches.

For an operating Mark VIe installation, replacing the exact failed switch can keep the existing network architecture intact and avoid the engineering review associated with a broader control-system change. TCO should include shutdown labor, troubleshooting time, expedited freight, configuration verification, and the financial effect of lost plant availability. A stocked replacement can remove the material waiting period from that equation (though site acceptance still depends on the approved network topology and the installed fiber arrangement). GE also states that its IONet switches are designed specifically for Mark VIe and Mark VIeS control-system networks, which is why an unapproved commercial Ethernet switch should not be treated as a like-for-like substitute.

GE IS420ESWBH2A

Compatibility & Replacement Matrix

Planning labor estimate: approximately 200–900 depending on plant labor rates, access requirements, shutdown procedures, commissioning scope, and region. These figures are budgeting estimates rather than a quotation.

Field Traps Watch Out

Fiber-Port Mismatch: The H2A version has two 100Base-FX multimode fiber ports with LC-type connections. H1A, H3A, H4A, and H5A use different fiber configurations. Confirm the fiber count, multimode versus single-mode requirement, and LC interface before issuing the PO.

Mounting Orientation: GE specifies separate qualified DIN-rail clips for ESWB installations depending on mounting orientation. The clip may be a separate order item, so verify whether the existing mounting hardware is being reused or replaced during the shutdown.

Redundant Power: TB1 and TB2 accept two independent DC supplies that are diode-OR’d for redundant operation. Check both supply paths before removing the failed unit; a healthy secondary feed can make the failure symptoms less obvious during troubleshooting.

Quality Assurance & Testing SOP

Identification and Traceability

• Record the complete catalog number
• Photograph the nameplate, barcode, revision marking, enclosure and all communication ports
• Record the unit serial or traceability identifier
• Confirm the physical configuration contains 16 RJ-45 copper ports and two LC fiber interfaces
• Match the tested unit to the shipment record

OEM Anti-Counterfeit Visual Inspection

• Inspect GE identification markings and label construction
• Compare enclosure geometry, port arrangement and connector placement against the approved reference
• Check for relabeled, resurfaced, corroded or mechanically altered areas
• Inspect RJ-45 sockets for bent contacts or damaged retention clips
• Inspect both LC fiber interfaces for cracked housings, contamination or damaged alignment components
• Inspect Phoenix power connectors and terminal blocks for deformation

Electrical Pre-Test

• Check continuity of applicable power paths
• Verify there is no unintended short between supply terminals
• Inspect TB1 and TB2 independently
• Confirm connector seating and retention
• Verify the test supply is within the specified 24/28 VDC range

Power-On Functional Test

• Apply controlled DC power to the switch
• Perform a power-on functional check
• Verify the power-status LED
• Verify Link Presence, Activity, Duplex and Speed indications on representative ports
• Test both redundant power inputs independently when the laboratory fixture permits
• Record abnormal LED states, link drops or unexpected restart behavior

This switch does not use a controller-style ERR/RUN LED scheme. Acceptance is based on power indication and the documented per-port status indicators.

IONet Load Testing

• Connect representative Cat 5e UTP links to selected 10/100Base-TX ports
• Connect approved multimode LC fiber test links to both 100Base-FX ports
• Generate representative Ethernet traffic through copper and fiber interfaces
• Exercise multiple ports concurrently
• Monitor link stability, activity indication and unexpected communication loss
• Run sustained traffic long enough to identify thermal or power-related resets
• Verify stable forwarding under representative Mark VIe IONet test conditions

Final Release

• Record all measured test results
• Retain inspection photographs
• Match the tested identifier to the shipping unit
• Protect communication interfaces against mechanical damage and contamination
• Apply ESD protection appropriate to the packaging process
• Release only after catalog-number verification and final functional acceptance

Procurement & Lifecycle FAQ

Is the GE genuinely in stock, and what is the cutoff for emergency shipping?

Physical inventory should be confirmed before the PO is released. For an emergency requirement, request confirmation of the exact catalog number, available quantity, QC status, packing status, and carrier cutoff. Same-day dispatch should only be promised after the unit has cleared final inspection.

How do you verify the condition and authenticity of an ?

The inspection should cover the GE nameplate, catalog number, revision marking, enclosure, RJ-45 ports, LC interfaces and power connectors. Functional acceptance should include controlled power-on testing, redundant power-path checks, copper Ethernet traffic testing, and multimode fiber communication testing. The individual unit’s identification should remain traceable from receiving inspection through shipment.

Are there firmware compatibility issues before issuing the PO?

is an unmanaged industrial Ethernet/IONet switch rather than a programmable Mark VIe controller or I/O pack. Procurement attention should therefore center on the approved hardware topology, port configuration, fiber type, network connections, and Mark VIe system architecture rather than assuming a firmware update is required. GE specifies the ESWB family for Mark VIe and Mark VIeS IONet applications.

Can replace another GE ESWB switch directly?

Only when the electrical, optical and mechanical requirements match. H2A has 16 copper ports plus two 100Base-FX multimode fiber ports; H1A has one multimode fiber port, H3A has no fiber ports, and H4A/H5A use single-mode fiber configurations. Treat these variants as different hardware configurations unless the site’s approved engineering documentation authorizes the substitution.

What are the warranty and return terms?

The commercial quotation should state the warranty duration and RMA conditions for the exact unit supplied. Procurement terms should define the DOA reporting window, return authorization process, inspection requirements, return-freight responsibility, and exclusions for installation damage, incorrect wiring, or application mismatch. The written terms attached to the transaction should govern the claim process.
