Description
- Brand: GE Multilin
- Full Model Number: UR6UH / UR-6UH
- System/Series Family: Multilin Universal Relay Series
- Core Function: Digital I/O module providing six Form-A outputs without monitoring and four digital inputs for auxiliary equipment control and status acquisition
- Top 3 Hardcore Specs: 6 Form-A outputs | 4 digital inputs | Outputs without monitoring
- Stock Status: New Surplus — inventory status to be verified at quotation
The UR6UH is identified as a UR Series Digital I/O module with six Form-A outputs and four digital inputs. GE describes the broader Universal Relay family as a modular protection and control platform with expandable I/O and configurable logic.
Technical Product Introduction
A UR relay can remain powered and communicating while a failed I/O card prevents the external scheme from operating correctly. That is where the GE Multilin UR6UH matters. Installed within a compatible Universal Relay chassis, it provides six Form-A outputs and four digital inputs, giving the relay ten discrete I/O points for command and status functions. Form-A means the output contact is normally open, while the input channels can be used to acquire discrete field states from auxiliary equipment. The module is part of the UR modular hardware architecture rather than a standalone PLC I/O slice.
The useful engineering metric is I/O density: 6 output channels + 4 input channels = 10 discrete points in one module. This is valuable when a maintenance team needs to restore breaker control, alarm contacts, interlocks, or auxiliary status without adding a separate external relay assembly. Published technical references place the physical module at approximately 18 × 15 × 4 cm and about 1.15 kg, though packing dimensions and shipping weight vary by supplier and packaging method. Do not treat those logistics figures as electrical specifications.
Application Scenarios & Field Realities
- At a substation feeder panel, the six Form-A outputs can be assigned to discrete commands or alarm functions while the four digital inputs collect breaker, auxiliary, or interlock status. During replacement, map every terminal before pulling the original module; a single misplaced field wire can create an unexpected control state.
- For transformer and generator protection panels, the UR6UH can provide discrete interface points between the UR relay and external equipment. Trip-related, alarm, lockout, and permissive functions may be distributed across several output channels, while status feedback returns through the four digital inputs.
- When an annunciator or interlock circuit depends on a normally open contact, the Form-A configuration is important. This module should not be substituted casually with a UR I/O variant using a different contact arrangement, even when the front-panel dimensions appear similar.
- During an outage spare replacement, the main benefit is restoring the original I/O architecture rather than changing the protection philosophy. The UR platform uses configurable modular hardware, so the engineer should verify the host relay’s order code, module position, output assignment, and firmware environment before energizing the circuit.
Migration, Compatibility & Installation Traps
Replacement Matrix: Drop-in Replacement — for an existing UR6UH installed in a compatible GE Multilin Universal Relay position with matching hardware and configuration. It should not be treated as a universal substitute for every UR digital I/O module. GE’s UR architecture supports multiple I/O module types, and their channel counts and contact configurations differ.
Field Traps — Watch Out:
- Form-A contact assumption: The six outputs are Form-A and are specified as non-monitored outputs. Verify the actual field circuit and fail-state requirement before transferring wiring from another I/O variant. A contact arrangement mismatch can change the external circuit behavior even when the software logic appears unchanged.
- Module identity and slot configuration: Do not rely on physical fit alone. Check the host relay’s hardware order code and configured I/O position before installation. The UR family supports multiple modular I/O combinations, so an apparently similar card may have a different electrical function.
For a maintenance exchange, record terminal wiring, relay configuration, firmware information, and the original module identification before removal. After installation, confirm input states and exercise each assigned output under a controlled test condition.

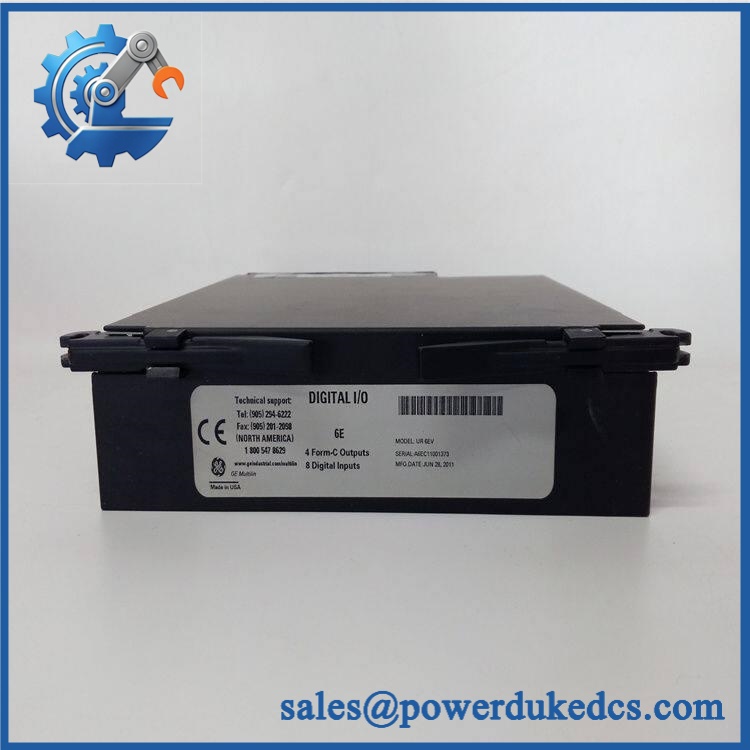

GE UR6UH
Quality Assurance SOP
Incoming Identification
- Verify GE / UR6UH / UR-6UH model markings
- Inspect label quality, serial information, connectors, housing, and board condition
- Compare the physical module against the specified configuration
- Perform an OEM anti-counterfeit visual inspection covering markings, connector construction, PCB workmanship, and identification consistency
Electrical Inspection
- Inspect all accessible terminals and connectors for bent, loose, oxidized, or damaged contacts
- Check continuity where applicable before applying power
- Verify the six Form-A output channels individually
- Confirm common-to-output contact operation against the expected relay state
- Check the four digital input channels with controlled test signals
Power-On Verification
- Install the module in a suitable UR-series test configuration
- Perform a controlled power-on self-test (POST)
- Check the host relay RUN/ERR LEDs and diagnostic indications
- Confirm that the inserted module is recognized without an unexpected hardware fault
- Review available diagnostics through the applicable EnerVista UR interface or relay keypad/display
Communication and Functional Testing
- Perform a communication handshake verification between the host relay and the engineering interface
- Confirm the detected hardware configuration
- Activate each configured digital input and verify the corresponding state change
- Command each assigned output and verify the physical Form-A contact transition
- Repeat selected input/output cycles to detect intermittent contact behavior
- Record module identification, test conditions, observed states, and inspection results
Release Criteria
- Correct identification confirmed
- No visible mechanical or connector damage
- 6 Form-A outputs pass channel-by-channel testing
- 4 digital inputs respond correctly
- Host relay reports expected RUN/ERR status
- Communication and configuration checks completed
- Final test record retained with the shipment file
The ‘s defining electrical arrangement is six non-monitored Form-A outputs plus four digital inputs. Pre-shipment testing should therefore focus on discrete channel behavior and host-relay recognition, not just whether the module powers up.
