GE UR8LH | CT VT Module for Multilin Universal Relays

Description

• Brand: GE Multilin
• Full Model Number: UR8LH
• Lifecycle Status: Legacy / replacement-stock item
• Core Function: CT/VT analog input module for GE Multilin UR Series Universal Relays
• Top 3 Technical Specs: 3 phase CT 1A/5A; 1 ground CT 1A/5A; 3-phase + auxiliary VT 50–240 V
• Input Configuration: 4 CT / 4 VT class configuration
• Frequency: 50/60 Hz
• Application: Protection, measurement, and control signal acquisition
• Stock & Condition: Availability confirmation required; New Surplus / Tested Refurbished options
• Emergency Dispatch: Cutoff and physical stock quantity confirmed at quotation stage

The UR8LH is identified as a CT/VT module for the GE Multilin UR family, with the commonly documented configuration of 4 CT and 4 VT inputs.

Module 3: Obsolescence & Supply Chain Deep Dive

When a UR-series protection relay loses a CT/VT module, the problem is not simply the price of one replacement board. A failed input module can remove an entire protection function from service while the engineering team searches for a compatible legacy assembly. The GE UR8LH addresses this specific maintenance requirement as a modular CT/VT assembly for the UR platform. Its documented configuration supports three phase CT inputs, one ground CT input, and three-phase plus auxiliary voltage inputs.

For an operating substation or industrial power system, replacing one failed module can preserve the installed relay architecture instead of triggering a full protection-system migration. That changes the TCO calculation considerably: engineering review, panel modification, wiring changes, protection-logic validation, commissioning, and outage labor can all exceed the acquisition cost of a replacement module. The key condition is compatibility. UR8LH belongs to the newer CT/VT module generation, so the existing CPU and firmware revision must be checked before the PO is released — particularly where older UR hardware remains installed.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

Firmware / CPU mismatch: UR8LH is associated with the newer UR CT/VT module generation. Documentation indicates that the newer CPU and CT/VT combination requires firmware in the 4.0x or later generation, while older CPU/module combinations use earlier firmware generations. Do not assume that a physically identical module is electrically and logically interchangeable. Verify the installed CPU type, firmware revision, relay order code, and existing module before shipment.

CT/VT configuration mismatch: Confirm the existing wiring against the input arrangement before energization. Phase CT ratios, ground CT configuration, VT secondary voltage, frequency, and protection settings must match the site design. A module replacement is not a substitute for protection-setting verification.

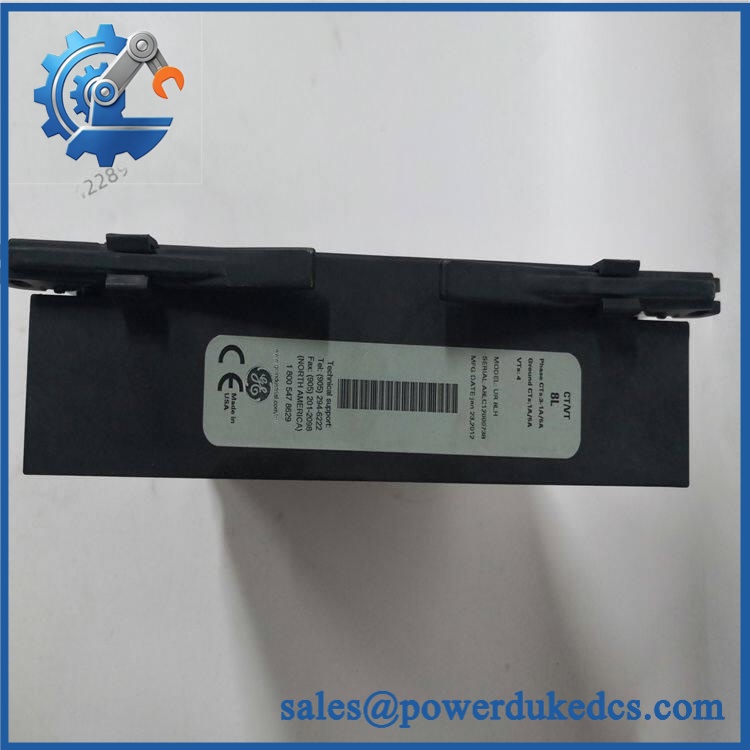

GE UR8LH

Module 5: Quality Assurance & Testing SOP

Every offered as tested inventory should pass a documented inspection sequence before shipment:

1. OEM anti-counterfeit visual inspection — compare GE Multilin markings, module designation, labels, connector layout, board condition, fasteners, and identification markings against known reference documentation.
2. Part-number verification — confirm against the purchase order, module label, and internal inventory record.
3. Physical inspection — check PCB condition, connectors, terminal interfaces, contamination, corrosion, cracked components, bent pins, and evidence of unauthorized rework.
4. Electrical isolation checks — inspect the CT/VT input circuits and verify that no visible short, insulation damage, or abnormal resistance condition exists.
5. Compatible test-chassis installation — install the module in an appropriate GE Multilin UR test configuration and verify mechanical seating and connector engagement.
6. Power-on self-test (POST) — where the module is evaluated as part of a complete relay, confirm the relay startup sequence and check ERR/RUN status indications for abnormal conditions.
7. CT/VT signal simulation — apply controlled representative current and voltage inputs and verify correct acquisition, scaling, phase relationships, and measured values.
8. I/O load testing — perform applicable input/output loading checks within the approved test configuration and record observed values.
9. Firmware and configuration record — document the host CPU firmware revision and relevant module configuration before release.
10. Final QC release — photograph the tested unit, record serial/identification data, apply the QC status label, and package using ESD protection and impact-resistant cushioning.

The GE UR hardware documentation specifies dielectric-strength requirements for CT/VT module hardware, including a 2,000 VAC withstand test for one minute under the stated test conditions. Any hipot or dielectric test must therefore follow the applicable GE procedure and test limits rather than using an improvised voltage level.

Module 6: Procurement & Lifecycle FAQ

1. Is the GE genuinely in stock, and what is the cutoff for emergency shipping?

Physical inventory should be confirmed against the exact part number before the PO is released. For emergency requirements, request same-day stock confirmation together with the warehouse cutoff time, carrier service, destination, and required export documentation. Do not treat an online quantity indicator as confirmation of allocated inventory.

2. How do you verify the condition and authenticity of an obsolete or surplus ?

The unit should undergo part-number verification, label and connector inspection, PCB examination, serial/identification recording, and functional testing where a compatible UR test environment is available. Test evidence should be retained with the shipment record. For refurbished inventory, the inspection and repair history should be disclosed rather than describing the unit simply as “new.”

3. Are there firmware compatibility issues engineers should check before the PO?

Yes. This is one of the most important checks. is associated with the newer CT/VT module generation, and published documentation identifies firmware and CPU-generation dependencies. Confirm the existing relay’s CPU, firmware revision, relay model/order code, and current CT/VT module before approving the replacement.

4. Is a direct replacement for an older CT/VT module?

It can be a direct physical replacement within an appropriate UR configuration, but do not approve it solely on physical fit. The CPU generation, firmware, module configuration, CT/VT ratings, and relay application must all be compatible. If the installed relay uses an older CPU/module generation, engineering review may be required before installation.

5. What warranty and return terms should be included with the purchase?

The quotation should explicitly state the warranty period, coverage for DOA or functional failure, return authorization procedure, inspection window, and responsibility for freight on approved returns. For tested surplus or refurbished equipment, request the actual test scope and condition classification in writing before issuing the PO.
