1. GE VMIVME-5565-110000 | Tested Reflective Memory Hardware

2. Unboxing & Physical Snapshot

• Brand & Model: GE VMIVME-5565-110000
• Product Family: GE Intelligent Platforms / VMIC VME-5565 Reflective Memory Series.
• Product Type: VMEbus Reflective Memory Node Card.
• Primary Function: Provides deterministic real-time shared memory communication between distributed computer systems through a fiber-optic reflective memory network.
• System Role: Installed as a 6U VMEbus board in embedded control, simulation, industrial automation, and data acquisition systems.
• Memory Capacity: 128 MB onboard reflective memory.
• Network Interface: Multimode fiber-optic transmission variant.
• Approximate Physical Dimensions (W × H × D): Standard 6U VME Eurocard format, approximately 160 × 233 mm board size.
• Estimated Shipping Weight: Approximately 1.1–1.5 lb (0.5–0.7 kg) for the board; packaged shipping weight may be higher.
• Mounting Style: Plug-in VMEbus backplane installation.
• Mechanical Features:
  • 6U VME card assembly
  • Front fiber-optic transceiver interface
  • VME P1/P2 backplane connectors
  • Front extraction handles
  • PCB edge guides
  • Status indicators
• Cooling Method: Forced-air cabinet cooling required.
• What’s in the Box:
  • GE VMIVME-5565-110000 Reflective Memory Node Card
  • Anti-static (ESD) shielding bag
  • Protective edge connector cover when supplied
  • Inspection documentation if included

3. Product Introduction

The GE VMIVME-5565-110000 is installed directly into a VMEbus chassis where multiple processors or controllers require synchronized data exchange. Unlike conventional storage memory, this board creates a shared memory network in which updates written by one node are distributed across connected nodes with deterministic timing (which is critical for simulation platforms and high-speed industrial control environments).

This card is a precision communication asset, not a general-purpose memory expansion board. Inspect the fiber-optic port, VME connector fingers, extraction handles, and PCB surface before installation. Check the date code. Long storage periods can affect connector plating and optical interfaces even when the board appears visually clean.

4. Core Technical Specifications

Parameter	Value
Manufacturer	GE Intelligent Platforms / VMIC
Model Number	VMIVME-5565-110000
Product Type	Reflective Memory VME Node Card
Form Factor	6U VMEbus
Memory Capacity	128 MB SDRAM reflective memory
Network Medium	Multimode fiber optic
Fiber Link Speed	2.125 Gbaud serial link
Data Transfer Rate	Up to approximately 170 MB/s non-redundant transfer
Redundant Transfer Rate	Up to approximately 87 MB/s
Network Topology	Ring or star topology
Maximum Network Nodes	Up to 256 nodes
VME Interface	VMEbus P1/P2 connector
Data Width Support	A32/A24 address, D32/D16/D08 data
Interrupt Support	Network interrupt transfers supported
Power Input	+3.3 VDC and +5 VDC VME power rails
Typical Power Consumption	Approx. 0.7 A at +3.3 VDC and 0.7 A at +5 VDC
Maximum Power Draw	Approx. 1.5 A at +3.3 VDC and 1.8 A at +5 VDC
Operating Temperature	0°C to +65°C
Storage Temperature	-40°C to +85°C
Cooling Requirement	Forced airflow
Weight	Approx. 0.5–0.7 kg

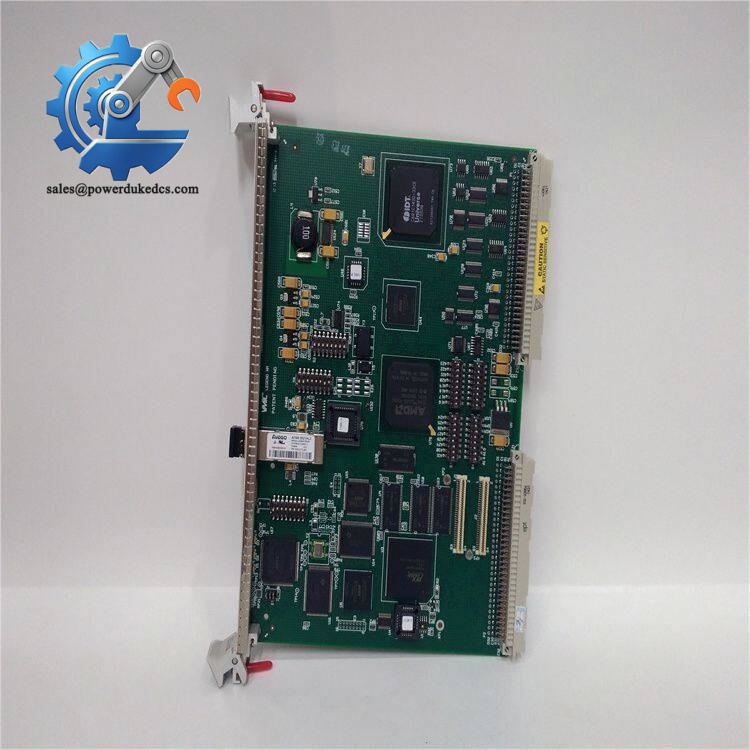

GE VMIVME-5565-110000

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the GE VMIVME-5565-110000 include:

• CE Mark — applies to electromagnetic compatibility requirements for the compliant product configuration.
• FCC Part 15 Class A — applicable for industrial computing environments.
• IEC/CISPR EMC Compliance — addresses emissions and immunity performance in industrial environments.
• UL/cUL Recognition — may apply depending on the complete VME chassis certification.
• ATEX/IECEx Considerations — hazardous-area use requires certified enclosure systems and complete installation evaluation.
• Marine Approvals (DNV GL, ABS) — require verification at the complete equipment level.

EMC certification matters for reflective memory systems because fiber communication does not eliminate all cabinet-level noise concerns. Power supply quality, grounding, and chassis design still affect system reliability.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Keep the VMIVME-5565-110000 inside its original anti-static (ESD) shielding bag. Protect the VME edge connector and fiber-optic transceiver from contamination.
• Maintain warehouse humidity below 60% RH. Connector oxidation can increase contact resistance and create intermittent VME communication faults.
• Store the board in a controlled environment away from vibration, dust, corrosive gases, and strong electromagnetic sources.
• Protect the fiber-optic interface with dust caps when the module is removed from service.
• Before installation, inspect PCB surfaces, connector contacts, fiber ports, and extraction handles.

7. Physical Installation Prerequisites

• Install the VMIVME-5565-110000 only in a compatible 6U VMEbus chassis.
• Confirm backplane compatibility with VME P1/P2 connectors before insertion.
• Ensure forced-air cooling is available. The board requires controlled airflow rather than passive convection.
• Leave sufficient cabinet clearance around the VME rack ventilation path.
• Connect chassis protective earth grounding according to system requirements.
• Handle the board using ESD protection procedures.
• Inspect the fiber-optic cable ends before connection. Contaminated optical surfaces can reduce communication performance.
• Verify VME slot assignment and system addressing configuration before powering the chassis.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the GE VMIVME-5565-110000?

A: VME communication boards are commonly reviewed under HS 8538, HS 8471, or related electronic equipment classifications depending on declared function and customs interpretation. Confirm the final classification with the destination-country customs broker.

Q: Why is Country of Origin (COO) important for this module?

A: COO affects customs clearance, duty calculation, export documentation, and equipment traceability. The VMIVME-5565 family has been associated with GE/VMIC manufacturing origins in the United States.

Q: Should shipping insurance be arranged for this reflective memory card?

A: Yes. The board contains fiber-optic interfaces, precision connectors, and semiconductor components. Shock, static discharge, or moisture exposure can create failures that are not visible during receiving inspection.

Q: Does the VMIVME-5565-110000 include the latest firmware pre-loaded?

A: The module contains onboard hardware firmware appropriate to its production revision. Software drivers, operating system support, and VME system configuration must be verified against the host platform before commissioning.
