Description
- Brand: GE
- Full Model Number: WES13-3 2508-21001
- System/Series Family: WESDAC / Substation Automation
- One-Sentence Core Function: WES13-3 system-associated analog I/O/control module identified in field inventories with GE part number 2508-21001
- Top 3 Hardcore Specs: GE WES13-3 platform; 2508-21001 hardware identifier; WEA13-13 association in available records
- Related Module Designation: WEA13-13
- Application: Electrical substation automation / remote I/O
- Signal Role: Analog output interface according to available product records
- Platform Architecture: WESDAC substation control and data-acquisition architecture
- Procurement Note: Exact nameplate and assembly identification required
- Stock Status: New Surplus / Fully Tested Refurbished subject to availability
Available records create an important identification distinction: WES13-3 is listed as a GE WES13-3 substation-control product, while 2508-21001 is separately identified by multiple sources as WEA13-13, an analog-output module associated with WES13-3. Because these identifiers are not consistently presented as a single formal GE catalog string, the physical nameplate should be treated as the final authority before shipment.
Module 3: Commercial-Technical Deep Dive
The first procurement issue with GE 2508-21001 is identification accuracy. Available records associate 2508-21001 with WEA13-13, described as an isolation analog-output module, while other inventory listings present “ 2508-21001” as a gateway or controller-related item. The name itself appears in GE WESDAC substation-control product inventories, but the accessible evidence does not establish that “” and “2508-21001” are a single OEM catalog designation.
That distinction matters because an analog-output board and a substation controller are not interchangeable service items. The safest maintenance strategy is to match the complete GE label, PCB assembly number, board designation, connector layout, and installed WESDAC chassis position before ordering. Some secondary listings assign generalized specifications such as mixed I/O channels, 4–20 mA output, or digital processing to 2508-21001, but those claims are not sufficiently consistent to use as authoritative design limits. For a critical spare, exact hardware traceability should take priority over a broad product description.

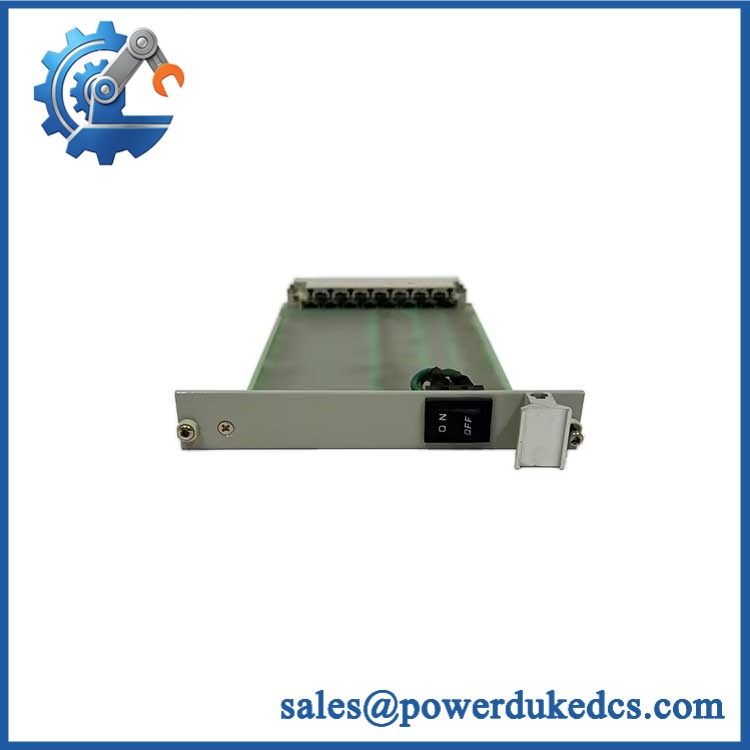

GE WES13-3 2508-21001
Module 4: Compatibility & Installation Traps
Migration/Compatibility
- Primary Platform: GE WESDAC / substation automation architecture
- Requested Identifier: 2508-21001
- Strongly Associated Board Designation: WEA13-13
- Available Functional Description: Isolation analog-output module
- Application: Substation control / remote I/O
- Replacement Type: Exact nameplate and PCB assembly match preferred
- Chassis Compatibility: Verify the original rack/chassis position
- Configuration: Preserve existing channel assignment, output scaling, wiring, and controller configuration
- Logic Rewrite: Normally not expected for a like-for-like I/O replacement; system configuration must still be validated
- Identification Risk: Public sources inconsistently combine and 2508-21001, so the full physical label should be confirmed before procurement
⚠️ Field Traps (Watch Out)
1. Do not assume 2508-21001 is automatically the controller itself.
Multiple records identify 2508-21001 as WEA13-13, while is separately listed as a WESDAC substation-control product. Treat the two identifiers as related but not automatically synonymous until the installed hardware label confirms the relationship.
2. Verify whether the field circuit is analog output before wiring.
The strongest product-specific records describe / 2508-21001 as an isolation analog-output module. Do not connect a field input loop to the board simply because the connector or terminal count appears similar.
3. Record chassis position and termination wiring.
Legacy WESDAC systems depend heavily on board position and associated termination hardware. A module that is electrically healthy can still fail the system if installed in the wrong slot or paired with an incompatible termination assembly.
4. Do not use conflicting third-party specifications as engineering limits.
Available listings give inconsistent descriptions of signal types, channel count, and environmental specifications. Use the GE system documentation and the actual board markings for the final engineering definition.
Module 5: Quality Assurance SOP
Each available GE 2508-21001 should undergo a documented legacy-substation-module inspection before shipment:
- OEM anti-counterfeit visual inspection: Verify GE identification, marking, 2508-21001 number, designation where present, PCB artwork, connector geometry, and manufacturing identifiers.
- Exact-part verification: Photograph the complete nameplate and PCB markings before test.
- Chassis-position verification: Record the original rack/chassis slot and termination-board relationship when supplied from an installed-system spare.
- Mechanical inspection: Check PCB edges, mounting hardware, connectors, terminal interfaces, and card guides for damage.
- PCB condition inspection: Inspect for corrosion, contamination, cracked components, thermal discoloration, damaged traces, and evidence of previous repair.
- Output-circuit inspection: Check isolation components, analog-output circuitry, protection devices, and terminal interfaces for visible damage.
- Power precheck: Perform controlled continuity and resistance measurements before applying system power.
- Power-on self-test (POST): Install the board in an approved /WESDAC test arrangement and verify normal initialization.
- Analog-output verification: Where the test fixture supports the documented function, apply representative command values and measure the corresponding isolated analog outputs.
- Isolation verification: Perform the approved low-voltage isolation test between logic-side and field-side circuits.
- Channel-by-channel test: Verify every available output channel individually rather than relying on a single representative test.
- Controller handshake verification: Confirm communication or data exchange with the associated WESDAC controller where the test architecture supports it.
- Fault-response test: Introduce controlled open-loop or output-disconnect conditions and verify expected diagnostic behavior.
- Scaling verification: Test low-scale, mid-scale, and full-scale output values against the approved GE configuration.
- Final QC record: Record exact catalog r, identification where applicable, chassis position, output measurements, isolation results, configuration data, and technician sign-off.
- ESD-safe packaging: Package the module in ESD-protective material with mechanical support around connectors and PCB edges.
Because the available sources do not present a single authoritative public datasheet tying every specification directly to the combined string 2508-21001, the QC report should preserve photographs and the complete physical identification. That evidence is particularly important for legacy GE WESDAC spare procurement.
Module 6: CRO-Driven Buyer FAQ
What is GE 2508-21001?
The available records associate with GE WESDAC substation-control hardware and 2508-21001 with , which is described as an analog-output module. The public sources do not consistently establish the combined string as one formal GE catalog designation, so the installed nameplate should be used for final identification.
Is 2508-21001 the as ?
Multiple product records identify as 2508-21001, describing it as an isolation analog-output module. This is the strongest part-specific identification available from the current search evidence.
Is a controller or an I/O module?
appears in GE product inventories as a WESDAC substation-control product, while 2508-21001 is associated whe analog-output hardware. The distinction should be maintained during procurement because the system-level product name and the individual I/O assembly are not necessarily the same item.
Can 2508-21001 be replaced with another analog-output card?
Not without matching the WESDAC platform, chassis position, terminal arrangement, signal range, isolation architecture, and board designation. Another analog-output module may have different electrical scaling or termination requirements.
Can this module be replaced while the system is powered?
Do not assume live removal is permitted. Legacy substation I/O can interface directly with energized field circuits. Follow the GE/WESDAC maintenance procedure and the site’s electrical isolation requirements before removing the board.
What should I verify before ordering 2508-21001?
Confirm the complete physical nameplate, including , 25081, if present, PCB assembly number, revision, chassis position, and termination hardware. A clear photo of the front and PCB label is the best way to prevent a controller-versus-I/O identification error.
What warranty and technical support should I expect?
Warranty duration should be stated for the exact unit condition and test status on the quotation. Technical support should cover part-number identification, WESDAC chassis compatiy, verification, analog-output testing, termination matching, and documented bench-test results. Substation protection engineering, RTU programming, and commissioning should be treated separately unless explicitly included.
