Description
- Brand — GE
- Full Model Number — WES5120 5120-1506
- System/Series Family — WES5120
- Core Function — Field controller/master unit within the WES5120 control architecture
- Top 3 Hardcore Specs — Assembly code 5120-1506; WES5120 family identifier; field controller/master-unit designation
- Stock Status — New Surplus; physical stock and packaging condition verified against the actual unit before shipment
Technical Product Introduction
A failed controller in a legacy WES5120 cabinet is not a generic PLC swap. The replacement has to match the installed architecture, connector arrangement, configuration, and firmware expectations. Current public records identify the GE WES5120 5120-1506 as a field controller/master unit, while other listings describe the same part number inconsistently. For that reason, the correct buying reference is the physical nameplate showing both and 5120-1506, not a broad functional description. That approach reduces the risk of receiving a visually similar module that cannot be commissioned in the existing rack.
Two identifiers carry the most practical value here: and 5120-1506. They define the family and the specific assembly reference that maintenance teams need to match. Publicly available sources do not provide a consistent OEM-backed set of CPU speed, memory size, scan time, voltage range, or temperature limits for this exact part, so those figures should not be invented on a sales page. The hard ROI is in replacement scope: an exact-match spare can keep the intervention focused on one module instead of forcing an unnecessary controller-system redesign. (Exact configuration remains installation dependent.)
Application Scenarios & Field Realities
- During turbine start-up: In a turbine-control cabinet, an active controller fault can interrupt the execution path for speed, load, or protective logic. Having the exact 5120-1506 assembly on hand shortens the identification step because the technician can match the cabinet part number directly.
- For planned outage work: When a maintenance window is measured in hours rather than days, pre-qualifying a spare before the outage matters. A replacement should be checked against the installed chassis, firmware revision, configuration backup, and connector condition before the old unit is removed.
- On legacy hydro or steam turbine systems: The principal field concern is not the label alone. Cabinet revision, installed companion modules, and the stored application configuration can determine whether a replacement starts normally after insertion.
- For emergency spare inventory: One exact controller assembly is easier to control in stores than a mixed bin of functionally similar cards. Label photos, serial records, inspection status, and firmware information should travel with the spare (especially when several cabinets exist at one site).
Migration Compatibility & Installation Traps
| Replacement Case | Classification | Engineering Guidance |
|---|---|---|
| Same GE 5120-1506 assembly | Drop-in Replacement | Treat as the primary replacement path only after matching chassis, connector layout, hardware revision, and firmware/configuration requirements. |
| Different controller claimed to perform the same function | Software Compatible | Requires documented firmware and configuration equivalence; assume reconfiguration or validation is required. |
| Different mechanical format or electrical interface | Hardware Modification Required | Do not substitute without engineering review of mounting, backplane, wiring, and power requirements. |
Field Traps — Watch Out
Model ambiguity: Public listings currently disagree about the exact role of 5120-1506, with records describing it as a field controller/master unit, a power module, and a four-channel displacement monitor. That conflict is enough reason to require a clear nameplate photo and part-number match before purchase.
Firmware and configuration mismatch: A matching part number does not automatically mean matching application data. Preserve the existing configuration, record the installed firmware revision, and compare the replacement hardware revision before startup. Do not assume a generic RS-232, RS-485, Ethernet, Modbus, memory, or temperature specification published by a reseller applies to every 5120-1506 unit. Current listings provide conflicting technical details.

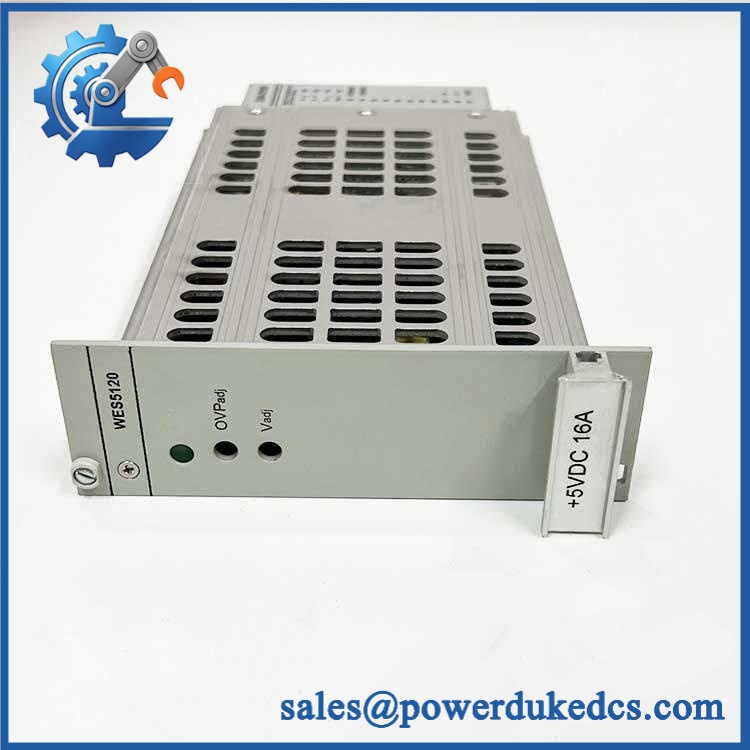

GE WES5120 5120-1506
Quality Assurance SOP
For units sold as New Surplus, the pre-shipment workflow should be evidence based and repeatable:
- OEM anti-counterfeit visual inspection — Verify GE/ markings, assembly code 5120-1506, label quality, connector condition, board condition, fasteners, and visible signs of rework or relabeling.
- Power-on self-test (POST) — Apply the approved test setup and record the startup sequence, including ERR/RUN LED behavior. Any abnormal LED state is isolated before release.
- Communication handshake verification — Connect the module to the appropriate test environment or service interface for the installed revision and verify expected initialization and communications behavior.
- Configuration and identity record — Photograph the nameplate, record serial or revision information, and preserve the test record with the shipment file.
- Final packing inspection — Check ESD protection, connector protection, anti-static packaging, and carton condition before dispatch.
The release decision is simple: the physical identity must match the sales order, the electrical and mechanical condition must be acceptable, and the observed startup and communication behavior must be recorded. For a legacy controller spare, traceability is part of the product.
