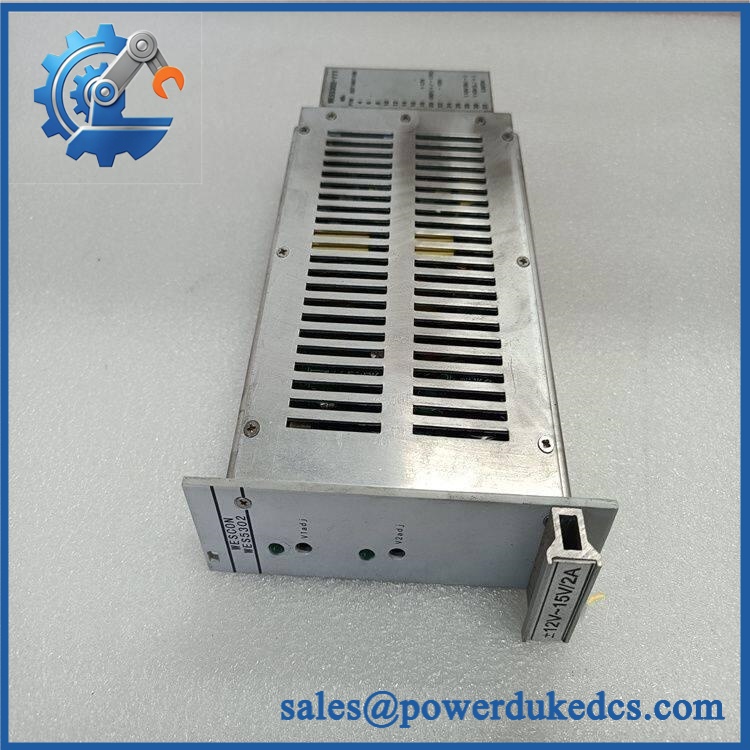

GE WES5302-150 | Field Controller Main Unit

Description

• Brand: GE
• Full Model Number: WES5302-150
• System/Series Family: GE WES / WESCON Control System
• Core Function: Field controller main unit for legacy industrial control architectures
• Top 3 Hardcore Specs: Field controller main unit; WES5302 series; system-level I/O and control interface
• Stock Status: New Surplus — verify exact physical configuration and nameplate before shipment

Technical Product Introduction

The GE WES5302-150 is identified in available technical listings as a field controller main unit associated with the GE WES/WESCON control platform. That distinction matters when replacing a failed assembly: several online listings incorrectly describe the same model as a digital input module, power module, communication module, or safety relay. Those classifications conflict with one another, so unsupported electrical ratings or channel counts should not be copied into a procurement specification. Current product references consistently identify the WES5302-150 model, while a separate listing specifically categorizes it as a field controller main unit.

For lifecycle maintenance, the practical value is preserving an existing WES-based control installation without changing the surrounding architecture prematurely. Treat the WES5302-150 as a configured system component rather than a generic PLC replacement. Before shipment, verify the nameplate, connector arrangement, installed options, firmware or system configuration, and mating controller/I/O hardware. No reliable primary-source documentation was located in the available search results that establishes specific CPU speed, memory capacity, input voltage, channel count, response time, or environmental ratings for this exact -150 variant; those figures should therefore be verified against the equipment documentation before being entered into a purchase specification.

Application Scenarios & Field Realities

• On legacy WES control installations, the WES5302-150 can be relevant when the field controller main unit has failed but the surrounding I/O and cabinet wiring remain serviceable. Matching the existing hardware configuration is more important than selecting a superficially similar GE board.
• During emergency spare replacement, identify the complete part number before removing the failed unit. WES-series listings contain inconsistent descriptions for -150, so the physical label and connector layout should take precedence over a generic online product description.
• For long-life industrial assets, retaining the existing controller architecture can reduce the scope of a forced modernization. The replacement decision should still account for the availability of mating I/O, configuration software, firmware, and engineering documentation.
• Where an installed system has accumulated configuration-specific modifications, photograph terminal wiring, board labels, jumpers, and adjacent modules before replacement. A controller that is electrically similar may still require configuration restoration before the process can return to automatic operation.

Migration, Compatibility & Installation Traps

Replacement Matrix

Part-number trap: Do not substitute another variant solely because the base model appears identical. The -150 suffix should be treated as part of the procurement identity until the OEM documentation confirms interchangeability.

Conflicting specification trap: Available web listings de inconsistently, including digital input, power, communication, and field-controller classifications. Because those descriptions conflict, values such as 24 VDC, 150 VDC, Modbus, channel count, SIL rating, and operating temperature should not be treated as verified specifications for this exact part.

Installation note: Isolate system power and observe ESD precautions before handling the controller assembly. Preserve the original configuration data and document connector positions before removal.

GE WES5302-150

Quality Assurance SOP

For a surp, the pre-shipment inspection should follow a controlled hardware-verification sequence:

• OEM anti-counterfeit visual inspection: Check GE markings, model number, board identifiers, labels, connectors, PCB condition, and manufacturing markings.
• Part-number verification: Confirm that the physical assembly is marked and that the label agrees with the sales documentation.
• Mechanical inspection: Examine connectors, mounting hardware, PCB edges, terminals, and enclosure surfaces for impact, corrosion, contamination, or previous repair work.
• Power-on self-test (POST): Apply controlled power using the appropriate test fixture and observe startup behavior and available status indicators.
• Controller status verification: Record all available RUN, ERR, fault, or diagnostic indications after initialization.
• Communication handshake verification: Connect the unit to the applicable test environment and verify that the controller establishes the expected system-level communication.
• I/O interface verification: Where the available test configuration permits, verify communication with the associated WES/WESCON hardware rather than testing the board in isolation.
• Configuration check: Record firmware/configuration information that is accessible without altering the customer’s original application.
• Final inspection: Photograph the model label, overall assembly, connectors, and packaging before release.

Procurement note: Because the available public sources provide conflicting technical descriptio, this listing intentionally avoids unverified electrical ratings and channel specifications. The exact unit configuration should be confirmed from the nameplate, photographs, and OEM documentation before quotation or installation.
