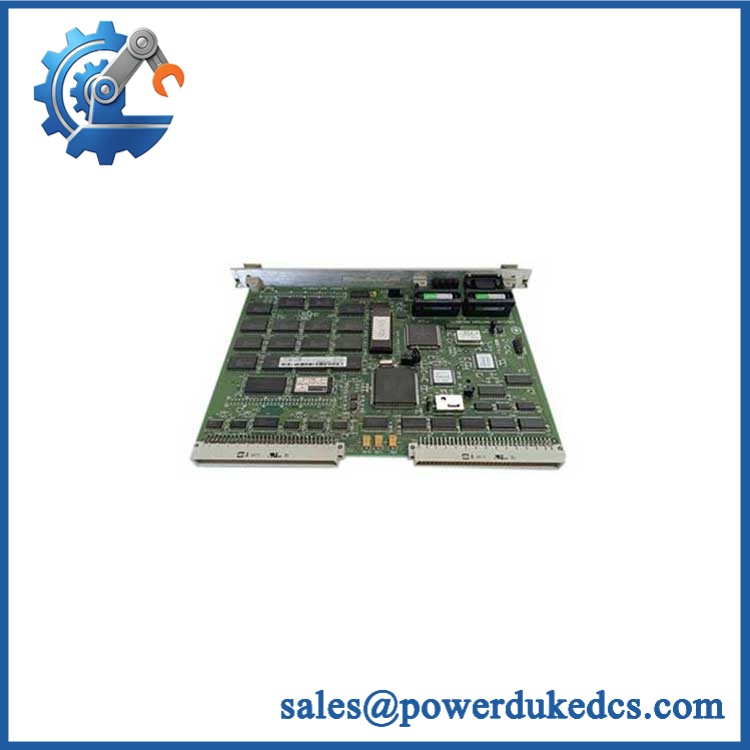

GE WESDAC D20A/0511-0101 | Analog Input Module

Description

• Brand: GE
• Full Model Number: WESDAC D20A/0511-0101
• System/Series Family: GE WESDAC D20A
• Core Function: Analog signal acquisition module for D20 RTU systems
• Top 3 Hardcore Specs: 32 analog input channels; 16-bit resolution; D.20 Link communication
• Stock Status: New Surplus — exact condition and configuration to be verified before shipment

Technical Product Introduction

A failed analog acquisition point in a D20 RTU can remove critical voltage, current, or process measurements from the supervisory system. The GE WESDAC D20A/0511-0101 is identified in available technical references as an analog input module associated with the WESDAC D20A architecture. One published specification lists up to 32 analog inputs, 16-bit resolution, voltage/current signal support, and communication through the GE D.20 Link architecture. These specifications should be confirmed against the physical unit and applicable GE documentation before final engineering approval.

The module is described as supporting DNP3 and GE D.20 Link communications, with a DB-9 connection used for D.20 Link communication and power in the cited reference. A listed 24 VDC supply and 1500 VRMS isolation figure are also reported, but these values come from a secondary technical listing rather than an OEM manual located during this search. For replacement planning, the important distinction is architectural: this is not a generic PLC analog card. Its compatibility depends on the D20/D20A system, D.20 Link arrangement, signal configuration, and installed application database.

Application Scenarios & Field Realities

• At electrical substations, analog measurements such as voltage, current, and other monitored electrical parameters can be collected by the D20A architecture and transferred toward the RTU processing layer. Channel scaling and point mapping must match the existing database.
• In remote power-system installations, the D.20 Link architecture allows distributed field hardware to communicate with the main processing system. Check the existing link topology before replacing a module; connector compatibility alone does not establish system compatibility.
• For oil, gas, and utility monitoring points, multi-channel analog acquisition can reduce the number of separate field interfaces required inside the RTU cabinet. Signal type, range, isolation, and engineering-unit scaling remain application-specific.
• During a legacy D20 maintenance event, retaining the existing WESDAC architecture may be preferable to changing the complete RTU assembly when the failure is limited to one acquisition component. The replacement should be validated against the original point database and hardware configuration.

Migration, Compatibility & Installation Traps

Replacement Matrix

Point database mismatch: Replacing the hardware does not automatically restore the correct engineering values. Confirm channel assignments, signal ranges, scaling, alarm limits, and point addresses in the existing D20 configuration.

Communication trap: The available reference identifies GE D.20 Link and DNP3-related functionality, but DNP3 should not be assumed to mean that the module itself operates as the RTU master or front-end protocol processor. Verify which device in the existing architecture handles the external protocol stack.

Electrical installation: Verify the actual supply and field wiring before energizing. One secondary reference lists 24 VDC and a DB-9 D.20 Link interface; treat those values as configuration data requiring confirmation rather than as an unconditional installation specification.

GE WESDAC D20A/0511-0101

Quality Assurance SOP

For a New Surplus GE WESDAC /0511-0101, the pre-shipment inspection should use a controlled hardware and communication checklist:

• OEM anti-counterfeit visual inspection: Verify GE markings, WESDAC identification, complete part number, board labels, connectors, PCB condition, and visible manufacturing identifiers.
• Part-number verification: Confirm the physical marking reads WESDAC /0511-0101 and matches the commercial documentation.
• Mechanical inspection: Examine the housing, PCB, DB-9 connector, mounting points, terminals, and board edges for damage, corrosion, contamination, or unauthorized repair.
• Power-on self-test (POST): Apply controlled power using the appropriate test fixture and monitor startup behavior and available status indicators.
• Channel/interface verification: Where the test fixture permits, verify the analog acquisition channels against known calibrated test signals.
• Resolution and signal check: Confirm representative analog channels produce stable readings across the applicable test range.
• Communication handshake verification: Establish the appropriate D.20 Link connection and verify stable communication with the designated test controller.
• Configuration verification: Record accessible hardware identification and configuration information without overwriting the customer’s application data.
• Final inspection: Photograph the nameplate, connectors, overall assembly, and packaging before shipment.

Specification control note: Public references for this exact part are limited, and the available detailed specification was found on a secondary source rather than an OEM manual. The listing therefore separates reported specifications from confirmed procurement data and avoids presenting unverified electrical characteristics as guaranteed values.
