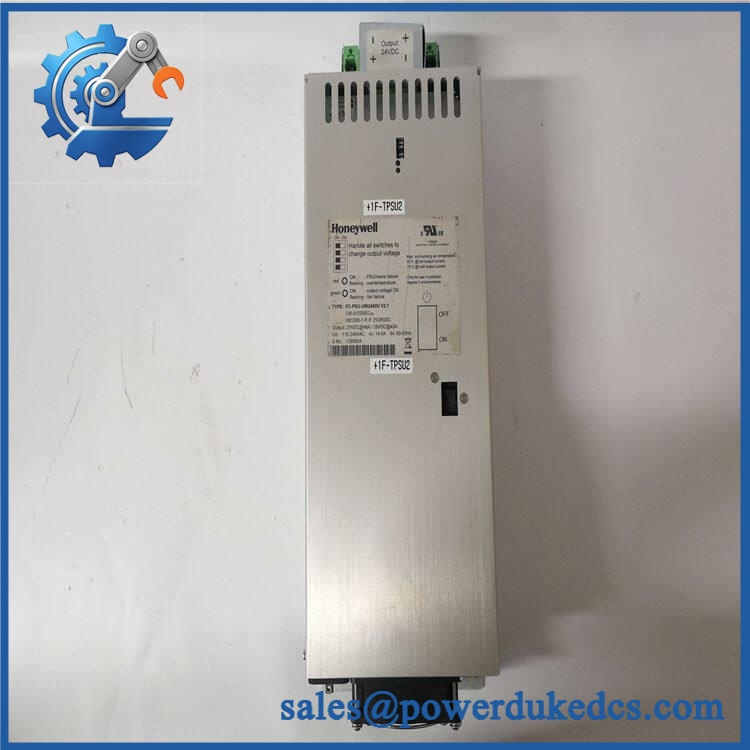

1. HONEYWELL FC-PSU-UNI2450U | UL/TUV Approved Control PSU

2. At-A-Glance Executive Brief

• Model: HONEYWELL FC-PSU-UNI2450U
• Brand: Honeywell
• Series: Safety Manager / FSC Safety System Power Supply
• Part Type: Industrial Switched-Mode Power Supply Unit
• Core Function: Converts universal AC input power into regulated DC output for Honeywell safety controllers, I/O assemblies, and associated control equipment.
• Primary Use: Safety Instrumented Systems (SIS), Honeywell Safety Manager platforms, industrial control cabinets, and process automation installations.
• Key Specifications:
  • Universal input: 110–240 VAC
  • Output: 25 VDC / 48 A or 28 VDC / 43 A
  • Output capacity: approximately 1200 W class
  • Dual overvoltage protection
  • CE, TUV, UL, CSA, CID2 approvals (verify exact revision documentation)
• Typical Deployment: Safety controller cabinets, refinery automation rooms, chemical process plants, and power generation control systems.

3. Product Introduction

Within a Honeywell Safety Manager architecture, the FC-PSU-UNI2450U provides the regulated DC power layer required by safety controllers and connected modules. It is installed as a cabinet power component rather than a logic-processing device, making stable output voltage and fault monitoring essential for continuous SIS operation.

In field deployments, power supply failures are often difficult to diagnose because symptoms may appear as controller resets, I/O communication alarms, or intermittent cabinet faults. Confirm input voltage, alarm contacts, output readings, and redundancy configuration before replacement (a healthy-looking PSU can still fail under load conditions). Honeywell documentation identifies this PSU family as part of Safety Manager hardware and provides replacement guidance for earlier revisions.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Honeywell
Model Number	FC-PSU-UNI2450U
Product Type	Industrial Safety System Power Supply
Application	Honeywell Safety Manager / FSC Systems
Input Voltage	110–240 VAC
Operating Input Range	93–253 VAC
Input Frequency	47–63 Hz
Output Voltage	25 VDC or 28 VDC
Output Current	48 A @ 25 VDC / 43 A @ 28 VDC
Output Power	Approx. 1200 W
Output Ripple & Noise	<40 mVpp
Hold-Up Time	100 ms at full load
Efficiency	>87% at 230 VAC
No-Load Consumption	Approx. 13 W
Inrush Current	<15 A
Protection Features	Overvoltage protection, short-circuit protection, thermal protection
Isolation Input-Output	3750 Vrms (1 min.)
Approvals	CE, TUV, UL, CSA, CID2
Mounting	Cabinet/rack installation
Dimensions (W × H × D)	Approx. 420.5 × 140 × 90 mm
Weight	Approx. 5.7 kg including cable set
Operating Temperature	-5°C to +70°C

HONEYWELL FC-PSU-UNI2450U

5. Application Scenarios & Pain Points

A failed safety-system power supply can create a plant-wide maintenance event because every connected safety module depends on stable DC power.

• Oil & gas processing facilities: The FC-PSU-UNI2450U supports SIS cabinets where unexpected power interruption can trigger protective shutdown sequences.
• Chemical plants: Used in safety control panels monitoring hazardous processes, where stable DC supply is required for certified safety functions.
• Power generation stations: Maintains power availability for safety controllers operating continuously through long service periods.
• Refinery modernization projects: Existing Honeywell Safety Manager installations often require exact PSU replacements to preserve approved system configurations.
• Remote industrial sites: Cabinet power units may operate in environments with limited maintenance access, making tested spare inventory important.

6. Common Error Codes & Diagnostic Symptoms

Symptom/Code: Output Voltage Alarm / Low DC Supply
→ Diagnosis: Possible PSU regulation failure, overloaded output, degraded internal components, or abnormal load current.
→ Action: Measure output voltage under load and replace the FC-PSU-UNI2450U if regulation remains outside specification.

Symptom/Code: Internal Temperature Alarm
→ Diagnosis: Cabinet ventilation problems, blocked airflow, fan degradation, or excessive operating load.
→ Action: Check cabinet cooling conditions and replace the PSU if thermal protection repeatedly activates.

Symptom/Code: Safety Controller Unexpected Reset
→ Diagnosis: Short-duration voltage drop, insufficient hold-up performance, or unstable PSU output.
→ Action: Verify DC stability with measurement equipment and replace the power supply when abnormal behavior is confirmed.

7. Cross-Reference & Lifecycle Migration

• Related Models:
  • FC-PSU-UNI2450
  • FC-PSU-UNI2450U V1.0
  • FC-PSU-UNI2450U V2.1
• Revision Notes:
  • Honeywell documented FC-PSU-UNI2450U V2.1 as a replacement path for earlier PSU versions in certain Safety Manager installations. Verify compatibility before substitution.
• Firmware Requirements:
  This PSU does not operate like a PLC CPU and does not require application firmware loading. Configuration checks mainly involve system power architecture and alarm wiring.
• Lifecycle Status: Active / Mature Safety System Component
  • Still used in installed Honeywell safety platforms.
  • Recommended spare strategy: maintain tested replacement units for safety-critical cabinets.
• Migration Consideration:
  Upgrading to newer Honeywell safety platforms may require cabinet redesign, power distribution changes, and safety validation.

8. Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not confuse output voltage with standard 24VDC supplies.
   The FC-PSU-UNI2450U operates around 25–28 VDC depending on configuration. Connecting an unsuitable replacement PSU can affect safety controller operation.
2. Inspect airflow before replacing the PSU.
   A replacement unit may show the same thermal alarm if cabinet ventilation is restricted (dust buildup around ventilation paths is a common long-term issue).

9. Strict QA & Testing SOP

Step 1 — Incoming Inspection

• Verify Honeywell FC-PSU-UNI2450U part marking.
• Record serial number and hardware revision.
• Inspect housing, terminals, connectors, and cable assemblies.
• Photograph condition before testing.

Step 2 — Electrical Inspection

• Verify input resistance and insulation condition.
• Inspect AC input terminals and DC output connectors.
• Check for abnormal physical damage.

Step 3 — Power-Up Test

• Apply controlled AC input.
• Verify startup indicators.
• Measure output voltage stability.
• Check current delivery capability.

Step 4 — Load Testing

• Apply controlled DC load.
• Verify voltage regulation.
• Confirm protection response.
• Monitor thermal behavior.

Step 5 — Packaging Control

• Secure cable assemblies.
• Protect connectors.
• Use shock-resistant packaging for international transport.

Test videos are available for verified inspection records.

10. Buyer’s FAQ (Dynamic Q&A)

Q: Can the Honeywell FC-PSU-UNI2450U be hot-swapped?

A: Do not assume live replacement is permitted. Follow the Honeywell Safety Manager maintenance procedure and verify the cabinet redundancy design before removal.

Q: How do I verify a New Original FC-PSU-UNI2450U?

A: Check the Honeywell label, complete model number, revision marking, terminal condition, cable assembly, and functional test documentation.

Q: Does this PSU require firmware installation?

A: No. The power supply does not normally require firmware loading. Verification focuses on electrical compatibility, output settings, and system alarm connections.

Q: What warranty details should be confirmed before purchase?

A: Confirm warranty period, load-test coverage, inspection records, replacement conditions, and whether the unit is New Original, New Surplus, or refurbished. For safety-system power modules, documented testing is an important procurement requirement.
