- HONEYWELL 900B16-0001 | New Surplus ControlEdge HC900 I/O Module Available Worldwide
At-A-Glance Executive Brief
- Model: HONEYWELL 900B16-0001
- Brand: Honeywell
- Series: ControlEdge HC900
- Part Type: Analog Output Module
- Core Function: Converts controller commands into precise analog current signals for valves, actuators, and other field control devices.
- Key Specs: 16 analog output channels, configurable 0 to 21.0 mA range, 500 VDC group isolation, 750 Ω maximum load resistance, synchronous output updates, selectable failsafe output values.
- Typical Use: Process control loops, chemical plants, power facilities, water treatment systems, and industrial automation applications.
Product Introduction
A failed analog output card can leave control valves frozen, speed references unavailable, or process loops operating outside normal conditions. The HONEYWELL 900B16-0001 is a 16-channel analog output module designed for the Honeywell ControlEdge HC900 controller platform, providing accurate current outputs for continuous process regulation.
Installed inside an HC900 control rack, the module generates configurable 0–21.0 mA output signals that can be scaled independently for each channel. The design includes grouped channel isolation, diagnostic monitoring, and user-defined failsafe behavior when communication with the controller is interrupted.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Honeywell |
| Model | 900B16-0001 |
| Product Type | Analog Output Module |
| Controller Platform | ControlEdge HC900 |
| Output Channels | 16 Analog Outputs |
| Output Range | 0 to 21.0 mA |
| Output Resolution | 13+ bits (1 part in 13,332) |
| Output Load Resistance | Maximum 750 Ω |
| Accuracy | 0.1% Full Scale at Reference Conditions |
| Channel Isolation | 4 groups of 4 channels |
| Group-to-Group Isolation | 500 VDC |
| Field-to-Logic Isolation | 500 VDC |
| Update Method | Synchronous with controller execution |
| Failsafe Function | User-defined output value |
| Terminal Block | 36-position Euro style |
| External Power Input | 18–36 VDC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Mounting | HC900 I/O Rack |

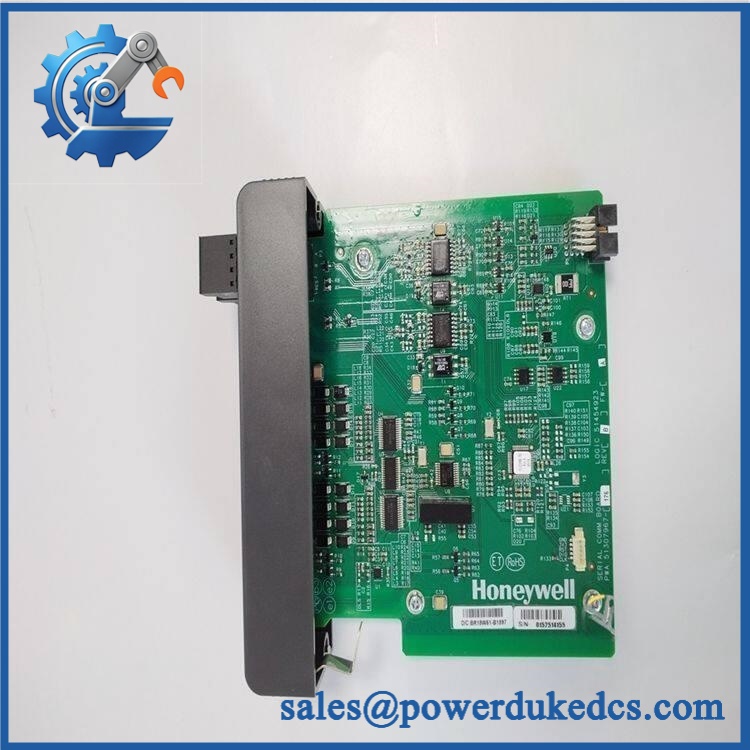

HONEYWELL 900B16-0001
Application Scenarios & Pain Points
During refinery control maintenance, engineers often replace the 900B16-0001 when analog outputs controlling valves or actuators become unstable or unavailable.
In chemical processing units, the module provides multiple current outputs for regulating flow control valves, pressure regulators, and temperature control equipment.
For power generation auxiliary systems, maintaining the original HC900 I/O architecture avoids unnecessary control cabinet redesign and software conversion.
With a healthy 900B16-0001 installed, operators retain accurate analog control signals. Without it, affected loops may enter manual operation or trigger process alarms.
In control cabinets operating near 50°C ambient conditions, technicians should inspect rack ventilation, terminal connections, and power quality before replacing the I/O card.
? Common Error Codes & Diagnostic Symptoms
Symptom/Code: Red Module Status LED / Channel Diagnostic Alarm
→ Diagnosis: Internal module diagnostics detect output hardware problems, calibration issues, or channel-level faults.
→ Action: Verify field wiring and configuration, then replace the 900B16-0001 if the module hardware is defective.
Symptom/Code: Output Signal Stuck at 0 mA or Incorrect Current Value
→ Diagnosis: Output channel circuitry, external loop wiring, or load conditions may prevent correct current generation.
→ Action: Check loop resistance and field device condition; replace the module if output circuitry failure is confirmed.
Symptom/Code: Multiple Analog Loops Fail Simultaneously
→ Diagnosis: A module-level fault may affect several output channels at once rather than a single field device.
→ Action: Replace the analog output module and verify HC900 configuration.
Cross-Reference & Lifecycle Migration
- Original Model: HONEYWELL 900B16-0001
- Product Family: Honeywell ControlEdge HC900 I/O Modules.
- Module Type: 16-channel Analog Output (AO) module.
- Related Assembly Reference: 50025613-001 is associated with the module assembly in supplier documentation.
- Compatibility Requirements:
- Confirm HC900 rack configuration.
- Verify terminal block type.
- Confirm controller firmware and I/O configuration database.
- Check replacement module revision before installation.
- Firmware Requirement: The module configuration should match the HC900 controller project. Parameter restoration may be required after replacement.
- Lifecycle Status: Legacy / Supported Through Maintenance Channels
- Existing HC900 installations continue operating in industrial plants.
- Maintaining spare I/O modules helps reduce downtime for long-service process systems.
Field Engineer’s Tech Notes (Anti-Pitfall Guide)
- Do not measure the output channel without checking the configured range first.
The 900B16-0001 can be scaled per channel. A correct output may not always equal the expected value if the engineering range is configured differently. - Do not remove the module before documenting terminal wiring.
The 16 outputs are arranged in isolated groups. Incorrect terminal reconnection can create loop failures after replacement.
Strict QA & Testing SOP
A professional inspection process for the HONEYWELL 900B16-0001 includes:
- Inbound Verification
- Confirm Honeywell model number and identification label.
- Record hardware revision and serial information.
- Physical Inspection
- Check PCB condition, connectors, housing, and terminal interface.
- Inspect for corrosion, contamination, or mechanical damage.
- Power-Up Testing
- Install the module into a compatible HC900 test rack.
- Verify diagnostic LEDs and controller recognition.
- Analog Output Testing
- Apply test commands from the HC900 controller.
- Measure each output channel across the full current range.
- Verify channel accuracy and stability.
- Isolation Verification
- Confirm channel group isolation performance.
- Check field-to-logic separation.
- Configuration Testing
- Verify module addressing and controller communication.
- Confirm failsafe output behavior.
- Final Packaging
- Apply anti-static protection.
- Protect terminal connections during shipment.
Test videos and inspection records are available for qualified purchasing requests.
Buyer’s FAQ
Q1: What is the HONEYWELL 900B16-0001 used for?
A: It is a 16-channel analog output module for Honeywell ControlEdge HC900 controllers, used to send current control signals to industrial field devices.
Q2: What output signal does this module provide?
A: Each channel supports a configurable 0 to 21.0 mA output range for process control applications.
Q3: Can I replace a failed module without changing the PLC program?
A: Usually yes if the replacement matches the existing HC900 configuration. However, I/O addressing, scaling, and controller database settings should be verified before operation.
Q4: Is the 900B16-0001 suitable as a spare stock item?
A: Yes. For plants still operating Honeywell HC900 systems, keeping tested spare analog output modules can reduce recovery time during unexpected failures.
