- ICS Triplex T8461 | IEC 61508 Safety Controller Module
Unboxing & Physical Snapshot
- Brand & Model: ICS Triplex T8461
- Product Family: ICS Triplex Trusted™ TMR Safety System.
- Product Type: Triple Modular Redundant (TMR) 24/48VDC digital output module designed for safety-critical industrial control applications.
- Primary Function: Provides fault-tolerant digital output control for field devices such as valves, actuators, solenoids, and motor control interfaces.
- Output Channels: 40 independent digital output channels.
- Output Groups: Five isolated power groups, each containing eight output channels.
- Approximate Physical Dimensions:
- H × W × D: Approximately 266 × 31 × 303 mm (10.5 × 1.2 × 12.0 in).
- Estimated Shipping Weight: Approximately 1.3 kg (2.7 lb) including ESD packaging.
- Mounting Style: Trusted Controller chassis slot mounting with keyed module insertion mechanism.
- Board Construction:
- Industrial multilayer PCB assembly
- Front extraction handle
- Status LED indicators
- Backplane connector interface
- Protective module housing
- Electrical Characteristics:
- 24VDC / 48VDC field output capability
- Electronic short-circuit protection
- Channel diagnostics
- Line monitoring capability (configuration dependent)
- Cooling Hardware:
- Internal heat-generating electronics
- Cabinet forced-air cooling required
- What’s in the Box:
- ICS Triplex T8461 output module
- Anti-static ESD shielding bag
- Protective transport packaging
- Documentation when supplied
Product Introduction
The ICS Triplex T8461 installs into the Trusted TMR controller chassis as a safety-related output interface between the control processor and field equipment. Its physical architecture uses triplicated processing paths to maintain output availability when individual internal faults occur (which is critical for safety instrumented functions where unexpected output loss can create process hazards).
Treat this module as a controlled safety asset. Inspect the front connector area, module casing, extraction handle, and identification label before installation. Check the storage history. Contamination or connector oxidation can affect diagnostics and field output reliability even when the module passes initial power-up tests.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex |
| Model Number | T8461 |
| System Family | Trusted TMR Safety System |
| Module Type | TMR Digital Output Module |
| Number of Outputs | 40 channels |
| Output Voltage Range | 18 to 60VDC |
| System Supply Voltage | 20 to 32VDC |
| Continuous Output Current | 0.75A per channel |
| Maximum Current per Power Group | 6A |
| Number of Power Groups | 5 groups × 8 channels |
| Output On-State Resistance | Approx. 1.6 Ω |
| Output Protection | Electronic latching short-circuit protection |
| Minimum Load Current | 25mA |
| Output Voltage Measurement | 0 to 60VDC |
| Isolation | Reinforced isolation between power groups |
| Crosstalk | Less than 1% |
| Sequence of Events Resolution | 1ms |
| Timestamp Accuracy | ±10ms |
| Field Supply Power Dissipation | Approx. 18–36W depending on load |
| System Supply Power Consumption | Approx. 22–26W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 10% to 95% RH non-condensing |

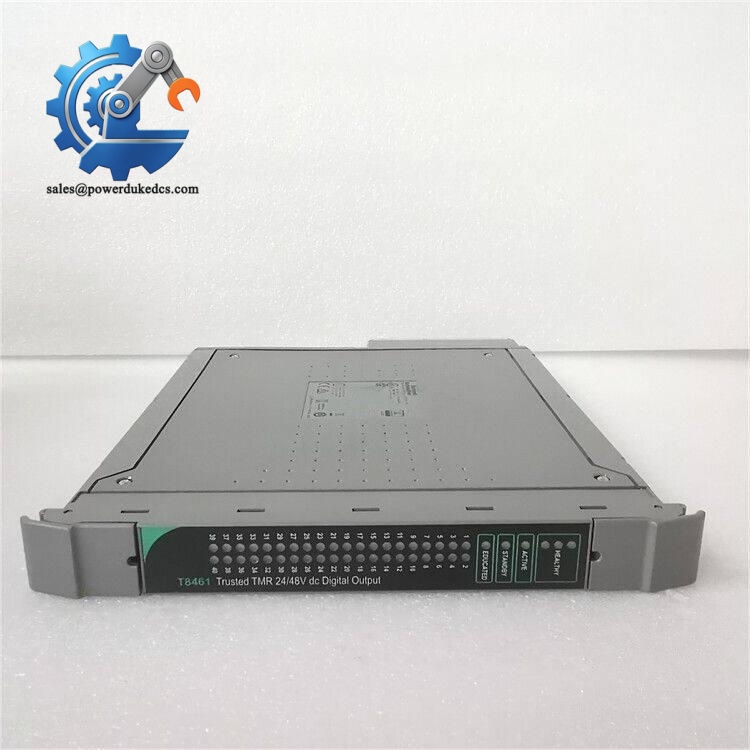

ICS Triplex T8461
Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the ICS Triplex T8461 include:
- CE Mark — applicable when installed within a compliant Trusted system cabinet meeting EMC and safety requirements.
- IEC 61508 SIL Capability — the TMR architecture supports safety-related applications when engineered within an approved safety lifecycle.
- UL/cUL Recognition — may apply depending on the complete controller system configuration.
- ATEX/IECEx Considerations — hazardous-area installation requires certified barriers, approved enclosures, and complete system evaluation. The module is not intended for direct hazardous-area connection without appropriate protection.
- Marine Approvals (DNV GL, ABS, LR) — applicable only when integrated into certified marine automation systems.
- RoHS Compliance — depends on manufacturing revision and production period.
For safety audits, retain the module serial number, hardware revision, firmware information, and system certification records together.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
- Keep the inside the original anti-static (ESD) shielding bag until installation. The internal processor assemblies and output driver electronics are sensitive to electrostatic discharge.
- Maintain storage humidity below 60% RH. Excess moisture can degrade connector surfaces and affect long-term contact resistance.
- Store the module in a clean, temperature-controlled cabinet away from corrosive chemicals, vibration sources, and conductive dust.
- Inspect the rear backplane connector before installation. Do not use abrasive materials on connector contacts.
- Record module serial number, hardware revision, firmware revision, and storage inspection date in the spare asset register.
Physical Installation Prerequisites
- Install the ICS Triplex only in the approved Trusted T8000 controller chassis.
- Confirm slot assignment and mechanical keying before insertion.
- Verify cabinet protective earth grounding.
- Ensure adequate forced-air cooling through the controller rack.
- Maintain approximately 50 mm clearance above and below rack assemblies where cabinet airflow depends on open circulation.
- Confirm field wiring polarity and terminal connections before applying field power.
- Use ESD protection during handling.
- Verify the safety application configuration matches the installed hardware revision before returning the system to service.

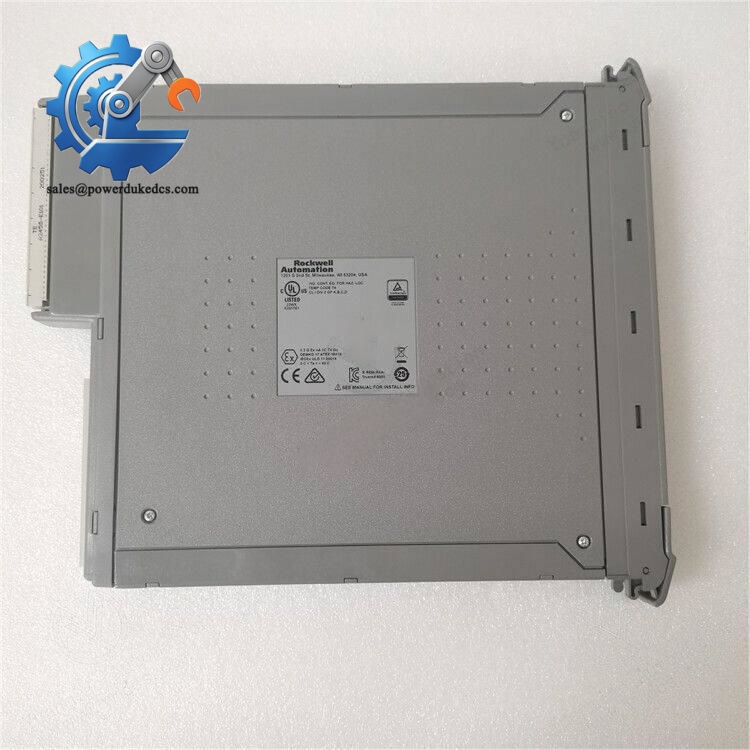

ICS Triplex T8461
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the ICS Triplex ?
A: Industrial safety I/O modules are commonly reviewed under electrical control equipment classifications, often within 8538 or related automation control categories. Final classification depends on customs interpretation, declared function, and importing country regulations.
Q: Does Country of Origin (COO) affect import approval for the ?
A: Yes. COO documentation supports customs clearance, supplier qualification, traceability, and safety spare inventory control. Keep the module label, serial number, and commercial documents together.
Q: Is shipping insurance recommended for the ICS Triplex ?
A: Recommended. This module contains precision safety electronics, output driver circuits, and multilayer PCB assemblies. Transport shock, moisture, or ESD exposure may cause failures that appear only during functional testing.
Q: Does the include the latest firmware pre-loaded?
A: The module contains its factory hardware configuration, but the final Trusted system firmware and application configuration depend on the installed controller project. Verify compatibility with the existing safety application before replacement.
