- ICS Triplex T8451 | Authentic SIS Control Rack Module
Unboxing & Physical Snapshot
- Model & Brand: ICS Triplex T8451
- Product Type: Trusted™ TMR 24 VDC Digital Output Module for safety instrumented systems. The T8451 provides 40 fault-tolerant digital output channels using triple modular redundant architecture with optional line monitoring.
- Approximate Physical Dimensions (W × H × D):
- Approximately 30 × 241 × 300 mm
- Designed for installation in ICS Triplex Trusted T8100/T8300 I/O chassis.
- Estimated Shipping Weight: Approximately 1.13 kg module weight; packaged shipment weight is typically around 3 kg with protective materials.
- What’s in the Box:
- ICS Triplex T8451 Trusted TMR Digital Output Module
- Front panel assembly with status indicators
- Module retaining mechanism
- Identification label
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Documentation package when supplied
Product Introduction
The ICS Triplex T8451 mounts into the Trusted safety controller chassis and provides the final electrical command path between the safety processor and field devices. Its physical role is controlling critical outputs such as shutdown valves, actuators, and protective equipment while maintaining redundant fault detection (which is essential where a single output failure cannot compromise a safety function).
This module should be managed as a controlled SIS spare, not a general PLC output card. The installed hardware revision, firmware compatibility, field termination assembly, and application configuration must be verified before replacement. The T8451 contains 40 output channels arranged in five isolated groups of eight channels, with automatic diagnostics and electronic short-circuit protection. Check the configuration record before installation.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex |
| Model | |
| Product Family | Trusted™ TMR System |
| Module Type | 24 VDC Digital Output Module |
| Safety Architecture | Triple Modular Redundancy (TMR) |
| Output Channels | 40 channels |
| Output Groups | 5 groups, 8 outputs per group |
| Circuit Type | Fully triplicated fault-tolerant design |
| Field Voltage Range | 18-32 VDC |
| System Supply Range | 20-32 VDC |
| Output Current Rating | 2 A per channel |
| Maximum Group Current | 8 A per power group |
| Output Measurement Range | 0-32 VDC |
| Maximum Voltage Withstand | -1 to 40 VDC |
| Output ON Resistance | Approximately 0.6 Ω |
| Output OFF Leakage Resistance | Approximately 33 kΩ |
| Short Circuit Protection | Electronic latching protection |
| Channel Crosstalk | Greater than -40 dB |
| Turn-On/Turn-Off Delay | Approximately 0.5 ms |
| Sequence of Events Resolution | 1 ms |
| Self-Test Interval | Approximately 2 minutes |
| Field Isolation | ±250 VDC sustained working isolation |
| Isolation Withstand | ±2.5 kVDC maximum |
| Power Consumption | Approximately 24-36 W depending on load conditions |
| Heat Dissipation | Generated mainly by output drivers and field power circuits |
| Mounting Location | Trusted T8100/T8300 I/O chassis slot |
| Hot Replacement | Supported within approved Trusted procedures |
| Operating Temperature | -5°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Operating Humidity | 5-95% RH non-condensing |

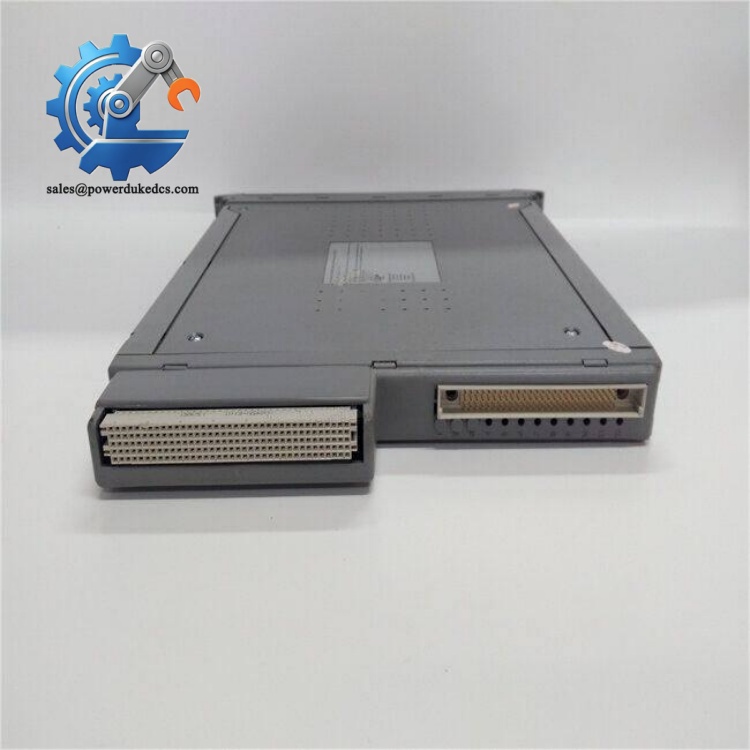

ICS Triplex T8451
? Global Compliance & Industry Certifications
Expected regulatory considerations for the ICS Triplex include:
- CE Mark: Applicable when installed as part of a complete compliant Trusted control system meeting EMC and electrical safety requirements.
- IEC 61508 Functional Safety: The Trusted platform is designed for high-integrity safety applications, including SIL-rated safety instrumented functions. Verify the exact certification scope for the module revision.
- UL/cUL Listed: May apply depending on the complete certified control system assembly.
- ATEX / IECEx: The is not a standalone hazardous-area device. Hazardous-area installations require approved barriers, field devices, enclosure requirements, and complete system certification.
- Marine Approvals (DNV GL): Applicable only when installed within approved marine automation systems.
For audit readiness, retain the module serial number, hardware revision, firmware version, chassis location, field termination details, and safety validation records. Missing configuration history can create unnecessary commissioning delays.
Verify specific lot certifications with OEM.
? Long-Term Storage & Asset Preservation Guide
Keep the inside its original anti-static shielding bag during storage. Protect the backplane connector pins, front panel indicators, and internal PCB assemblies from electrostatic discharge.
Maintain warehouse humidity below 60% RH. Moisture cycling can degrade connector surfaces and create intermittent faults after long storage periods.
Inspect stored safety modules every 12-24 months. Check the retaining clips, connector condition, label markings, and enclosure surfaces. Before installation, verify firmware revision, hardware compatibility, and approved SIS configuration records.
Physical Installation Prerequisites
- Install the only in approved ICS Triplex Trusted T8100/T8300 chassis systems.
- Confirm the assigned I/O slot before insertion.
- Verify field termination wiring against approved engineering drawings.
- Ensure the front connector and retaining mechanism are fully engaged.
- Maintain cabinet airflow for convection cooling.
- Leave sufficient clearance around rack assemblies to avoid localized heat buildup.
- Confirm protective earth bonding of the control cabinet.
- Verify 24 VDC field supply quality and current capacity.
- Confirm external barriers or isolators where required for hazardous-area circuits.
- Complete SIS proof testing after module replacement.
ICS Triplex T8451
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for an ICS Triplex shipment?
A: Industrial safety I/O modules are commonly reviewed under electronic control equipment categories, often within HS 8538 or related industrial control component classifications. Final classification depends on customs interpretation, product function, and importing-country requirements.
Q: Why does Country of Origin (COO) documentation matter for the ?
A: COO records support customs clearance, maintenance traceability, and safety asset management. Verify the physical product label, manufacturer records, and shipment documentation for each module.
Q: Should the be shipped with transport insurance?
A: Recommended. The module contains precision output circuitry, backplane connectors, and safety diagnostic electronics. Shock, vibration, or moisture exposure may create failures discovered only during SIS testing.
Q: Does the ICS Triplex include the latest firmware pre-loaded?
A: The module contains internal firmware storage, but the installed revision depends on manufacturing history and previous service records. Confirm firmware compatibility, hardware revision, and Trusted system configuration before replacement.
