- ICS Triplex T8461C | OEM Trusted TMR Spare Assembly
Unboxing & Physical Snapshot
- Model & Brand: ICS Triplex T8461C Trusted TMR 24/48Vdc Digital Output Module. This module provides 40 safety digital output channels using Triple Modular Redundant (TMR) architecture for Trusted safety systems. It is designed for controlling field devices such as valves, actuators, and relays in safety instrumented applications.
- Approximate Physical Dimensions (W × H × D): Approximately 31 × 266 × 303 mm (1.2 × 10.5 × 12.0 in.) for the Trusted I/O module format.
- Estimated Shipping Weight: Approximately 1.3 kg (2.7 lb) including module packaging, ESD shielding, and protective inserts.
- What’s in the Box:

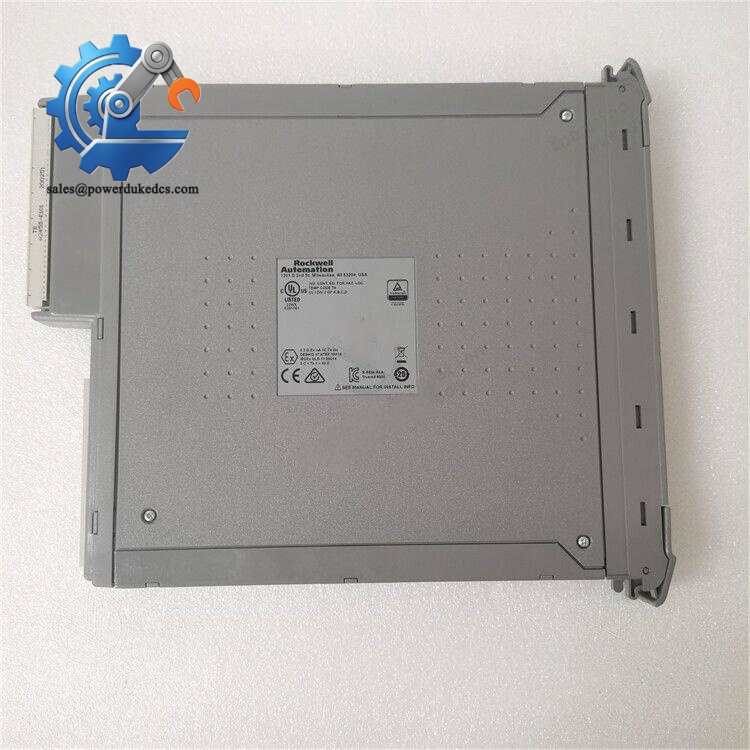

- ICS Triplex T8461C Trusted TMR Digital Output Module

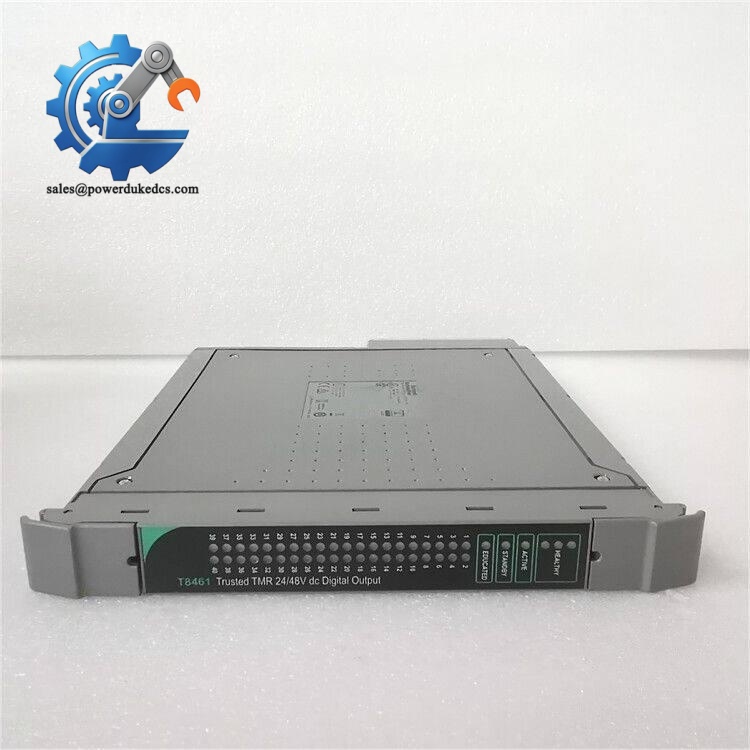

- Front panel assembly with status LEDs
- Module identification label
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Documentation when supplied
Product Introduction
The ICS Triplex T8461C installs into the Trusted TMR controller chassis, connecting through the internal Inter-Module Bus (IMB) for power and communication with the Trusted processor. Verify the chassis slot position, mechanical keying, and termination assembly compatibility before installation. Engage the retaining mechanism completely. A partially seated module can create intermittent backplane faults (especially in cabinets exposed to vibration).
This output module is designed for safety-critical applications requiring redundant field control. The T8461C provides 40 TMR digital outputs, arranged into five independent power groups of eight channels, with automatic short-circuit protection, line monitoring capability, voltage/current diagnostics, and Sequence of Events reporting with 1 ms resolution. Inspect the front connector, retaining clips, housing condition, and PCB surfaces before returning a stored spare to operational inventory.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex |
| Model Number | T8461C |
| Product Type | Trusted TMR 24/48Vdc Digital Output Module |
| Safety Architecture | Triple Modular Redundant (TMR) |
| Output Channels | 40 digital output channels |
| Field Supply Voltage | 18–60 VDC |
| System Supply Voltage | 20–32 VDC |
| Independent Power Groups | 5 groups × 8 outputs |
| Continuous Output Current | 0.75 A per channel |
| Maximum Group Current | 6 A per power group |
| Output On-State Resistance | Approximately 1.6 Ω |
| Output Protection | Electronic latching short-circuit protection |
| Line Monitoring | Configurable per channel |
| Output Diagnostics | Current and voltage measurement |
| Sequence of Events Resolution | 1 ms |
| Timestamp Accuracy | ±10 ms |
| Isolation | Galvanic isolation barrier |
| Hot Replacement | Supported in approved Trusted configurations |
| Power Consumption | Approximately 26 W system supply |
| Heat Dissipation | Approximately 26–36 W depending on load conditions |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 10–95% RH, non-condensing |
| Dimensions | 266 × 31 × 303 mm |
| Weight | Approximately 1.3 kg |
- ICS Triplex
Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the ICS Triplex include:
- CE Mark compliance for applicable Trusted safety system installations
- IEC 61508 SIL 3 capability when installed within a validated Trusted safety architecture
- UL/cUL recognition where applicable to the complete safety controller system
- ATEX/IECEx suitability only when integrated into an approved hazardous-area safety system
- Marine approvals such as DNV GL only for specifically certified equipment packages
- Industrial EMC compliance based on complete cabinet installation requirements
The SIL 3 rating matters because it defines the safety integrity capability of the complete safety system, including hardware diagnostics, application logic, installation, and maintenance procedures. The module alone does not create a certified safety function.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Keep the ICS Triplex inside its original anti-static (ESD) shielding bag during storage. The front connector contacts and internal electronic assemblies must remain protected from contamination and moisture.
Maintain warehouse humidity below 60% RH to reduce oxidation risk on electrical contacts and prevent degradation of protective coatings. Avoid storage near corrosive chemicals, battery charging areas, or areas with airborne industrial contaminants.
Before installation, inspect the connector pins, front-panel LEDs, retaining clips, and module casing. Record the serial number, hardware revision, firmware status, and storage history in the spare asset tracking system.
Physical Installation Prerequisites
- Install only in a compatible ICS Triplex Trusted TMR chassis.
- Verify the correct output module slot before insertion.
- Confirm IMB backplane connection integrity.
- Ensure cabinet protective earth grounding is properly bonded.
- Maintain sufficient cabinet airflow for heat removal.
- Leave approximately 50 mm clearance above and below rack ventilation paths where practical.
- Verify field wiring polarity and output load requirements before energization.
- Confirm external barriers are installed where intrinsic safety applications require them.
- Perform Trusted system diagnostics after replacement.
- ICS Triplex
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the ICS Triplex ?
A: Industrial safety output modules are commonly evaluated under electronic control equipment classifications, often within HS 8537 categories. Some suppliers reference 8537101190, but final classification depends on the importing country’s customs interpretation.
Q: Does Country of Origin affect importing the module?
A: Yes. COO affects customs declarations, supplier qualification records, and safety-system traceability. Confirm origin through the product label, commercial invoice, and supplier documentation before shipment.
Q: Is shipping insurance recommended for an ICS Triplex ?
A: Recommended. The module contains safety-rated electronics, precision backplane contacts, and diagnostic circuitry. Use ESD protection, impact-resistant packaging, moisture control, and documented receiving inspection.
Q: Does the include the latest firmware pre-loaded?
A: Firmware availability depends on the module revision and previous system history. The hardware may contain required internal firmware components, but compatibility with the installed Trusted controller software version must be verified before commissioning.
