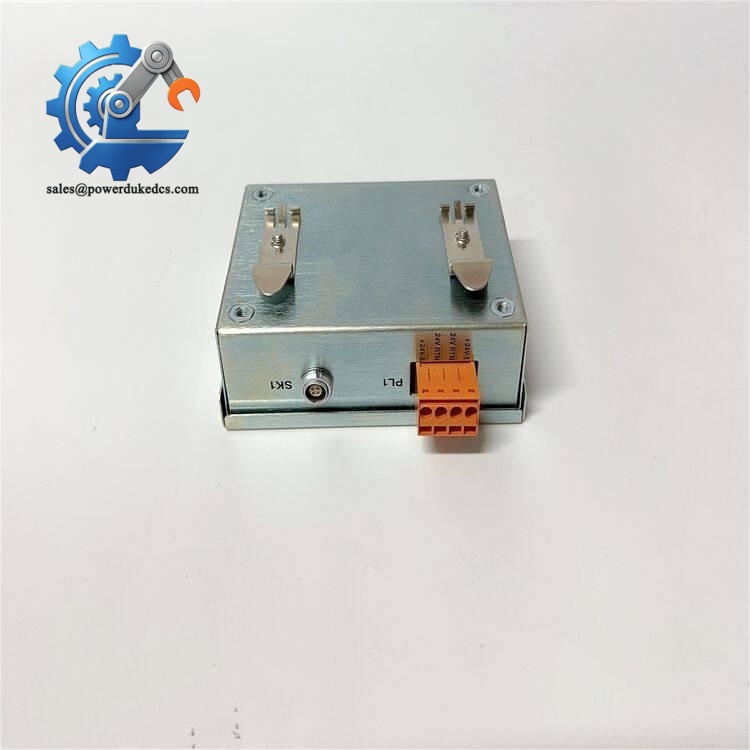

1. ICS Triplex T8314 | Original DIN Rail Mounted Assembly

2. Unboxing & Physical Snapshot

• Brand & Model: ICS Triplex T8314
• Product Type: Trusted Fibre Transmitter/Receiver (TX/RX) Unit. The T8314 extends the Trusted Expander Bus through single-mode fibre optic communication, allowing remote Trusted Expander Chassis installation at distances up to 10 km.
• Primary Application: Remote Trusted Expander Chassis communication, safety system expansion, distributed I/O cabinet installations, and long-distance controller-to-expander communication links.
• Physical Dimensions (Approximate W × H × D):
  • Approximately 110 × 84 × 40 mm
  • DIN-rail mounted industrial enclosure format.
• Estimated Shipping Weight: Approximately 0.32–0.50 kg including protective packaging and accessories.
• What’s in the Box:
  • ICS Triplex T8314 Trusted Fibre TX/RX Unit
  • DIN-rail mounting enclosure
  • Dual 24 VDC power connection terminals
  • SC-type fibre optic TX/RX connectors
  • Copper Expander Bus interface connection
  • Anti-static protective packaging
  • Installation documentation when supplied

3. Product Introduction

Structure B — Architecture Hook

The ICS Triplex T8314 is installed between Trusted controller infrastructure and remote Expander Chassis locations, converting copper-based Expander Bus signals into optical communication paths. This architecture allows safety system expansion over long distances while maintaining independent communication channels for fault monitoring.

Mounted on a TS32 or TS35 DIN rail, the unit typically sits inside the rear cabinet area near the Trusted controller or remote chassis interface. Inspect the SC fibre connectors, terminal blocks, and enclosure condition before installation (—which is critical when fibre links are part of a certified safety system). Maintain correct fibre polarity and bend radius during routing; damaged optical paths can create difficult intermittent faults.

4. Core Technical Specifications

Parameter	Value
Manufacturer	ICS Triplex
Model Number	T8314
Product Type	Trusted Fibre TX/RX Unit
System Family	ICS Triplex Trusted TMR Safety System
Main Function	Copper Expander Bus to fibre optic conversion
Mounting Method	TS32 / TS35 DIN rail mounting
Communication Medium	Single-mode fibre optic cable
Maximum Transmission Distance	Up to 10 km
Fibre Connector Type	SC connectors (TX/RX)
Communication Data Rate	250 Mbps Expander Bus communication
Power Supply	Dual 24 VDC diode-ORed redundant input
Operating Voltage Range	18–32 VDC
Power Consumption	Low power design (approximately <2 W typical)
Signal Interface	Trusted Expander Bus
Cable Interface	Copper bus and optical fibre
Optical Transmitter Output	Approximately -15 dBm minimum
Receiver Sensitivity	Approximately -28 dBm
Maximum Propagation Difference	80 ns
Operating Temperature	0°C to +60°C
Storage Temperature	-25°C to +70°C
Relative Humidity	10–95% RH, non-condensing
Dimensions	Approx. 110 × 84 × 40 mm
Weight	Approx. 0.32 kg

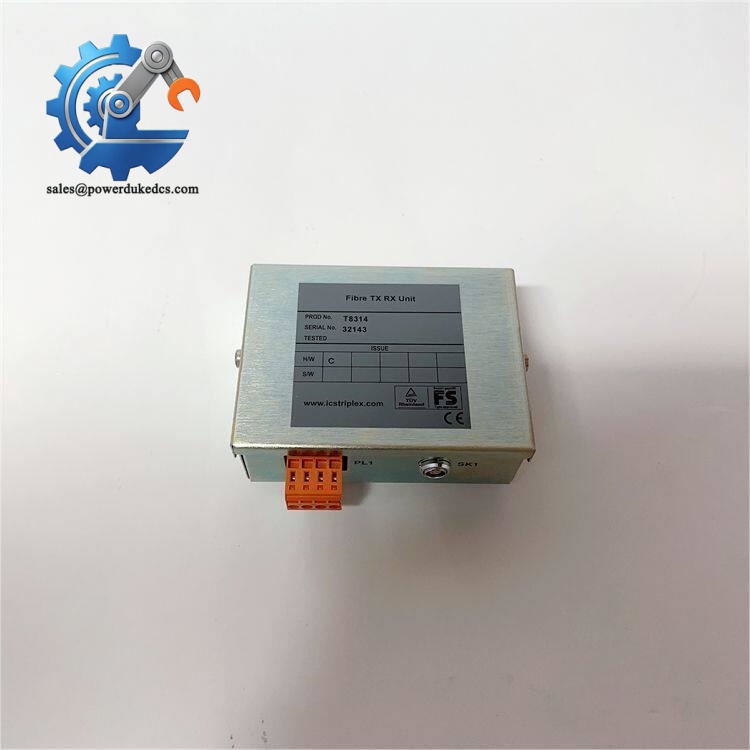

ICS Triplex T8314

The T8314 does not operate as a standalone controller. It functions as part of a Trusted communication architecture and requires compatible T8312/T8310 interfaces, approved fibre cabling, and correct system configuration.

5. ? Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the ICS Triplex T8314 include:

• CE Mark — applicable when installed within a compliant Trusted system cabinet.
• UL/cUL Recognition — may apply depending on the complete certified system configuration.
• IEC 61508 Safety System Compatibility — relevant because the fibre communication link supports safety-related system expansion.
• ATEX/IECEx Compatibility — not a standalone hazardous-area certified device; suitability depends on the enclosure, installation method, and area approval.
• Marine Approvals (DNV GL) — applicable only when integrated into an approved marine automation package.

The fibre interface is important for safety installations because optical isolation reduces susceptibility to electrical interference over long cable routes. Verify the complete communication path, including cable type and installation environment.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Store the ICS Triplex T8314 in its original anti-static packaging. Protect the SC fibre connectors with their protective caps because contamination on optical surfaces can reduce signal quality.

Maintain warehouse humidity below 60% RH. Moisture exposure can affect terminal contacts, PCB coating, and mechanical DIN mounting components over extended storage periods.

Before installation:

• Inspect fibre connector faces for dust or scratches.
• Verify terminal screws and enclosure clips are intact.
• Check the DIN mounting latch for mechanical damage.
• Confirm product labels and serial records match inventory documentation.

Never clean fibre interfaces with ordinary cloth materials. Use approved fibre cleaning tools only.

7. Physical Installation Prerequisites

• Install on approved TS32 or TS35 DIN rail.
• Mount horizontally or vertically according to cabinet layout requirements.
• Connect only to the specified redundant 24 VDC supply.
• Verify TX and RX fibre connections before startup.
• Maintain fibre bend radius requirements during cable routing.
• Leave sufficient clearance around the unit for maintenance access.
• Provide at least 50 mm clearance around cabinet ventilation paths where required.
• Confirm cabinet protective earth continuity.

Allow adequate cable routing space. Fibre connections require careful handling; avoid sharp bends or mechanical tension on the SC connectors.

ICS Triplex T8314

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is commonly used for the ICS Triplex T8314?

A: The final Harmonized System classification depends on customs interpretation and the declared function of the equipment. Fibre communication interface units may be reviewed under industrial communication equipment categories. Confirm the final HS code with your customs broker before export.

Q2. Does Country of Origin affect T8314 import documentation?

A: Yes. COO information supports customs clearance, customer qualification records, and safety system traceability. Keep the original label, serial number, supplier invoice, and packing documentation together.

Q3. Is shipping insurance recommended for the T8314?

A: Recommended. The enclosure is compact, but the optical connectors and internal communication electronics are sensitive to shock, moisture, and contamination. Use protective packaging and replacement-value freight coverage.

Q4. Does the T8314 include the latest firmware pre-loaded?

A: The T8314 contains internal device electronics but is not configured like a controller module with application firmware. Verify compatibility with the installed Trusted system revision and communication configuration before commissioning.
