Description
- ICS Triplex T8431C | Trusted TMR 24VDC Input Hardware
Unboxing & Physical Snapshot
- Model & Brand: ICS Triplex T8431C Trusted TMR 24VDC Analog Input Module. This Series C module provides 40-channel analog signal acquisition within the Trusted TMR safety platform, supporting fault-tolerant measurement paths for safety-related process signals.
- Approximate Physical Dimensions (W × H × D): 31 × 266 × 303 mm (1.2 × 10.5 × 12.0 in.).
- Estimated Shipping Weight: Approximately 1.5–2.0 kg (3.3–4.4 lb) including ESD shielding, foam protection, and export carton. The module net weight is approximately 1.149 kg (2.5 lb).
- What’s in the Box:
- ICS Triplex T8431C Analog Input Module
- Front panel assembly with status indicators
- Module identification label
- Anti-static (ESD) shielding bag
- Protective foam inserts
- Documentation when supplied
Product Introduction
The T8431C occupies an I/O slot within the ICS Triplex Trusted T8000 chassis, connecting through the Inter-Module Bus (IMB) for power and communication with the Trusted TMR processor. Confirm the assigned rack position before insertion. The module guide rails, retaining clips, and backplane connector must engage fully before power application (a small alignment issue can create unnecessary diagnostic events during commissioning).
This analog input module is designed for safety-related measurement tasks where process variables such as pressure, temperature, and flow must be monitored continuously. The hardware uses a fully triplicated input architecture with diagnostic functions, sequence-of-events capability, and configurable monitoring thresholds. Inspect the terminal interface, connector pins, and module housing before installation because stored spare modules may remain unused for many years.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex / Rockwell Automation |
| Model Number | T8431C |
| Product Type | Trusted TMR Analog Input Module |
| Series | Trusted Series C |
| System Platform | Trusted T8000 Safety System |
| Architecture | Triple Modular Redundant (TMR) |
| Number of Inputs | 40 analog input channels |
| Input Current Range | 0–22 mA |
| Input Voltage Range | 0–6 VDC |
| Input Resolution | 3.9 µA (1/256 mA) |
| Sample Update Time | 0.5 ms |
| Sequence of Events Resolution | 1 ms |
| Timestamp Accuracy | ±0.5 ms |
| Calibration Accuracy | 0.03% |
| Safety Accuracy | ±1% full scale |
| Isolation Voltage | ±250 VDC sustained, up to ±2.5 kVDC withstand |
| Channel Crosstalk | -40 to -60 dB |
| Supply Voltage Range | 20–32 VDC |
| Power Consumption | 15–18 W |
| Heat Dissipation | Approximately 15–18 W during operation |
| Self-Test Interval | 2 minutes |
| Mounting Location | T8100 / T8300 I/O module slot |
| Operating Temperature | -5°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 10–95% RH, non-condensing |
| Dimensions | 266 × 31 × 303 mm |
| Weight | 1.149 kg |

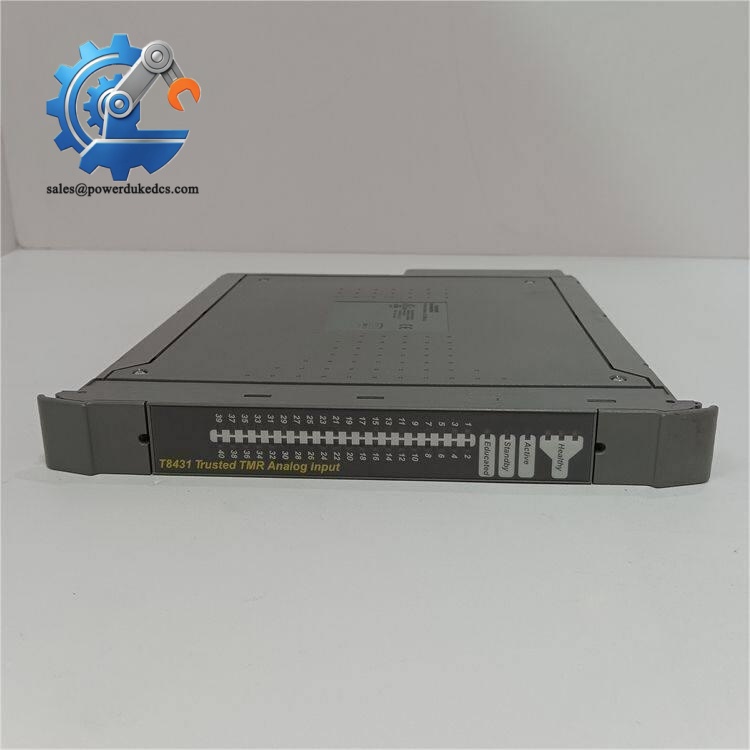

ICS Triplex T8431C
Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the ICS Triplex T8431C include:
- CE Mark compliance for applicable Trusted system installations
- IEC 61508 SIL 3 capability when installed as part of a certified Trusted safety architecture
- UL/cUL Listed status where applicable to the complete controller system
- ATEX/IECEx compatibility when used with approved hazardous-area barriers and system configurations
- Marine approvals such as DNV GL only when included within an approved marine control package
- Industrial EMC compliance based on final cabinet design and installation practices
The IEC 61508 SIL rating matters because analog input hardware directly affects the safety measurement chain. Incorrect calibration, unsuitable replacement hardware, or unverified configuration changes may affect the validated safety function.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Keep the inside its original anti-static (ESD) shielding bag during warehouse storage. Protect the backplane connector and front-panel interfaces from dust, moisture, and accidental contact.
Maintain humidity below 60% RH. Long-term exposure to uncontrolled environments can accelerate connector oxidation and reduce the reliability of electrical contact surfaces.
Record the module serial number, hardware revision, firmware information, and storage inspection date. Before installation, examine the retaining clips, connector pins, PCB surface, and front-panel indicators (this inspection step prevents many avoidable startup issues).
Perform calibration verification according to site maintenance procedures. The recommended analog input calibration check interval is typically two years.
Physical Installation Prerequisites
- Install only in compatible Trusted T8000 TMR chassis assemblies.
- Confirm the correct T8100/T8300 I/O slot assignment before replacement.
- Verify the analog field wiring and shielding arrangement.
- Ensure cabinet protective earth grounding is correctly bonded.
- Maintain adequate airflow around the rack assembly.
- Leave at least 50 mm clearance above and below the rack ventilation path where practical.
- Inspect the IMB backplane connector before insertion.
- Confirm retaining hardware is secured before energizing the system.

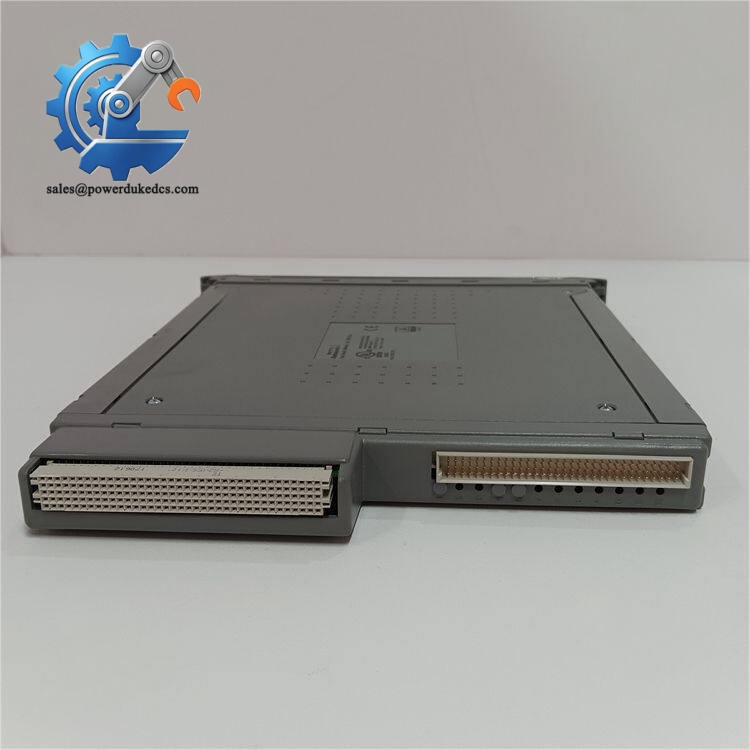

ICS Triplex T8431C
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is typically used for the ICS Triplex ?
A: Industrial analog I/O modules are commonly evaluated under HS 8537 classifications for electrical control equipment. The final tariff determination depends on the declared function and destination-country customs rules.
Q: Does Country of Origin affect importing the ?
A: Yes. COO affects customs declarations, duty treatment, supplier qualification records, and traceability for safety-related equipment. Confirm the origin from the product label and commercial invoice before shipment.
Q: Should shipping insurance be added for this module?
A: Recommended. The contains precision analog circuits and multi-layer electronic assemblies. Use ESD protection, impact-resistant packaging, and receiving inspection records.
Q: Does the include the latest firmware pre-loaded?
A: Firmware depends on the module revision and previous service history. The hardware may contain installed firmware resources, but compatibility with the existing Trusted processor configuration must be verified before commissioning.
