1. ICS Triplex T9801 | IEC 61508 Compatible Digital Input Unit

2. Unboxing & Physical Snapshot

• Brand & Model: ICS Triplex T9801
• Product Family: ICS Triplex AADvance® Safety Controller System.
• Product Type: Digital Input Termination Assembly (TA).
• Primary Function: Provides the field wiring termination interface between external digital devices and the AADvance digital input module.
• System Role: Simplex termination assembly for one digital input module configuration.
• Supported Module: One T9401 or T9402 digital input module.
• Channel Capacity: 16 non-isolated digital input field connections.
• Typical Applications: Emergency shutdown systems, process interlocks, permissive monitoring, and discrete safety signals.
• Approximate Physical Dimensions (H × W × D): 132 × 42 × 118 mm (5.2 × 1.65 × 4.65 in) approximate termination assembly format.
• Estimated Shipping Weight: Approximately 133 g net weight; packaged shipping weight varies with protective materials.
• Mounting Style: AADvance I/O base unit mounting with plug-in module connection.
• Mechanical Features:
  • Field wiring terminal blocks
  • Module socket interface
  • Replaceable channel fuse protection
  • Protective plastic enclosure
  • Identification label
  • Retaining features
• Electrical Interface:
  • 16 digital field input terminals
  • 50 mA channel protection fuses
  • Interface for T9401/T9402 input modules
• Cooling Method: Passive cabinet airflow.
• What’s in the Box:
  • ICS Triplex T9801 Digital Input Termination Assembly
  • Anti-static (ESD) protective packaging
  • Transport protection material
  • Documentation when supplied

3. Product Introduction

The ICS Triplex T9801 is installed at the field termination layer of an AADvance safety controller, providing the physical connection point between plant switches, sensors, and digital input processing modules. This simplex arrangement is intended for applications where a single input module configuration is specified rather than a redundant voting arrangement (which is critical when matching the approved safety architecture during system design).

This assembly does not execute control logic. Inspect the terminal blocks, fuse holders, module connector, and enclosure condition before installation. Check the date code. Long-stored termination hardware can develop contact oxidation or mechanical issues that may only appear during loop testing.

4. Core Technical Specifications

Parameter	Value
Manufacturer	ICS Triplex
Model Number	T9801
Product Type	Digital Input Termination Assembly
System Family	AADvance Safety Controller
Configuration Type	Simplex
Supported Input Modules	One T9401 or T9402
Digital Input Channels	16 channels
Input Type	Non-isolated digital input termination
Input Channel Protection	50 mA, 125 V Type T fuse
Channel Load	5.125 kΩ ±0.2%
Measurement Resolution	5 mV, 13-bit
Field Wiring Capacity	Maximum 1.31 mm² (16 AWG) conductor
Wire Strip Length	6 mm
Field Loop Power Dissipation	Approximately 0.2 W per field loop
Channel Isolation	None for simplex configuration
Mounting Method	AADvance I/O base unit
Power Consumption	Dependent on connected I/O module
Heat Dissipation	Dependent on connected I/O module
Operating Temperature	System installation dependent
Weight	Approximately 133 g
Dimensions	132 × 42 × 118 mm

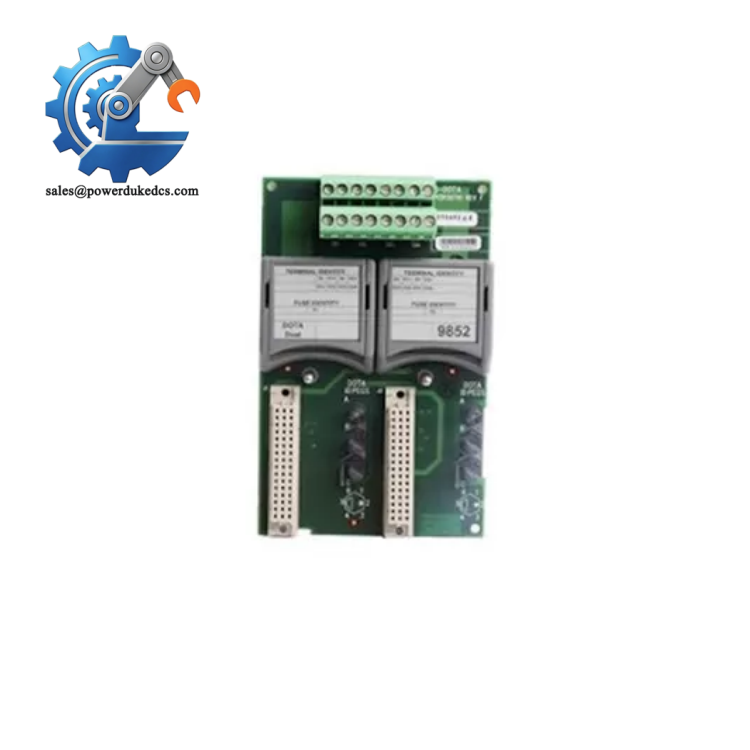

ICS Triplex T9801

5. Global Compliance & Industry Certifications

Expected compliance considerations for the ICS Triplex T9801 include:

• CE Mark — applicable when installed as part of a compliant AADvance controller assembly.
• UL/cUL Recognition — may apply at the complete controller system level depending on enclosure certification and installation conditions.
• IEC 61508 Functional Safety Compatibility — supports AADvance safety architectures when combined with approved processor and I/O modules.
• ATEX/IECEx Considerations — hazardous-area installations require certified barriers, approved field devices, and a complete system assessment.
• Marine Approvals (DNV GL, ABS, LR) — applicable only when installed within a certified marine automation package.

The channel protection fuse arrangement is important for plant safety because it limits field-side faults from damaging the termination assembly and associated input electronics.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Keep the T9801 inside the original anti-static (ESD) shielding bag until installation. The terminal interface and PCB contacts should remain protected from contamination.
• Maintain storage humidity below 60% RH. Moisture exposure can accelerate oxidation on terminals and connector surfaces.
• Store away from corrosive chemicals, salt environments, and conductive dust. Small contamination particles can create unreliable digital signals.
• Inspect fuse holders, terminal screws, connector contacts, and enclosure clips before field installation.
• Record serial number, hardware revision, storage date, and inspection status in the spare parts management system.

7. Physical Installation Prerequisites

• Install the ICS Triplex T9801 only within an approved AADvance controller I/O base unit.
• Confirm compatibility with the installed T9401/T9402 digital input module.
• Verify field wiring assignments before energizing the system.
• Ensure cabinet protective earth grounding is correctly bonded.
• Maintain cabinet airflow around active electronic modules. Leave at least 50 mm clearance above and below rack-mounted assemblies where convection cooling is required.
• Keep digital input wiring separated from high-voltage switching cables.
• Confirm terminal tightening torque according to approved installation procedures.
• Use ESD protection during handling.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the ICS Triplex T9801?

A: Industrial automation termination assemblies are commonly reviewed under HS 8537 or HS 8538 classifications. The final tariff code depends on the declared function and destination-country customs interpretation.

Q: Does Country of Origin (COO) affect customs clearance for this component?

A: Yes. COO documentation supports customs declaration, supplier qualification, and lifecycle traceability. Ensure COO details match the commercial invoice and packing documentation.

Q: Should shipping insurance be arranged for the T9801?

A: Recommended. The unit is lightweight, but damage to terminal blocks, fuse holders, or connector interfaces may create commissioning delays.

Q: Does the T9801 include the latest firmware pre-loaded?

A: No. The T9801 is a passive termination assembly and does not contain firmware or application memory. Firmware management applies to the connected AADvance processor and digital input modules.
