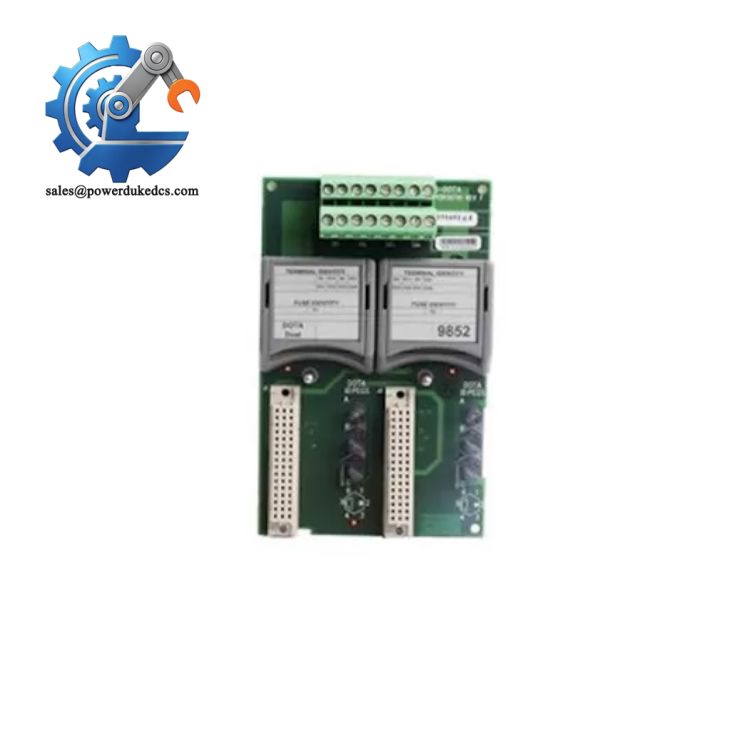

1. ICS Triplex T9881 | OEM Trusted AADvance Component

2. Unboxing & Physical Snapshot

• Brand & Model: ICS Triplex T9881
• Product Family: ICS Triplex AADvance® Safety Instrumented System.
• Product Type: Analog Output Termination Assembly used with AADvance analog output modules.
• Primary Function: Provides the physical interface between the analog output module and external field devices such as control valves, positioners, and current-driven actuators.
• Channel Capacity: 8 analog output field connections.
• Supported Module: Designed to operate with the compatible AADvance analog output module configuration.
• Approximate Physical Dimensions (W × H × D):
  • 132 × 42 × 42 mm (5.2 × 1.65 × 1.65 in) approximate termination assembly format.
• Estimated Shipping Weight: Approximately 133 g (5 oz) before external packaging.
• Mounting Style: Panel or cabinet installation as part of an AADvance termination assembly arrangement.
• Mechanical Features:
  • Plastic non-flammable housing
  • Field wiring terminals
  • Module interface connector
  • Identification label
  • Retaining hardware
• Electrical Interface:
  • Analog output field termination
  • 4–20 mA signal connection capability
  • Channel isolation protection
• What’s in the Box:
  • ICS Triplex T9881 termination assembly
  • Anti-static protective packaging
  • Transport protection material
  • Documentation when supplied

3. Product Introduction

The ICS Triplex T9881 is installed at the field interface layer of the AADvance safety system, where analog output signals are routed from controller electronics to external process equipment. This hardware does not execute application logic; its purpose is maintaining clean, controlled signal transfer between the controller and field wiring (which is critical for actuator loops and safety-related analog control functions).

Inspect the terminal points, housing, connector surfaces, and mounting features before installation. Check the date code. Termination assemblies often remain unused for years in spare inventory, and contamination or mechanical stress can create faults during commissioning.

4. Core Technical Specifications

Parameter	Value
Manufacturer	ICS Triplex
Model Number	T9881
Product Type	Analog Output Termination Assembly
System Family	AADvance Safety Instrumented System
Channel Count	8 analog output channels
Supported Modules	1 compatible analog output module
Output Signal	4–20 mA typical process signal
Output Range	0.1–24 mA
Compliance Voltage	3–32 VDC
Load Capability	0–750 Ω depending on compliance voltage
Output Resolution	15-bit current control resolution
Output Monitoring Resolution	13-bit
Channel Isolation	±1.5 kVDC withstand for 1 minute
Field Loop Power Dissipation	Approximately 0.77 W per loop
Module Supply Voltage	18–32 VDC redundant supply
Module Supply Dissipation	Approximately 3.6 W
Temperature Drift	Approximately 0.01% per °C
Operating Temperature	System dependent, typically -5°C to +60°C
Relative Humidity	5–95% RH non-condensing
Housing Material	Non-flammable plastic
Weight	Approximately 133 g

ICS Triplex T9881

5. Global Compliance & Industry Certifications

Expected compliance considerations for the ICS Triplex T9881 include:

• CE Mark — applicable when installed within a compliant AADvance safety system cabinet.
• IEC 61508 Safety System Compatibility — used within safety architectures designed for functional safety applications.
• UL/cUL Recognition — may apply depending on the complete controller assembly approval.
• ATEX/IECEx Considerations — hazardous-area installation requires certified barriers, suitable field devices, approved wiring methods, and complete system evaluation.
• Marine Approvals (DNV GL, ABS, LR) — applicable only when integrated into a certified marine automation package.

Isolation capability matters because it helps prevent field wiring disturbances from transferring directly into controller electronics, reducing the risk of unsafe signal behavior.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Keep the T9881 inside its original anti-static (ESD) shielding bag until installation. The termination PCB and signal-conditioning components should not be exposed unnecessarily.
• Maintain warehouse humidity below 60% RH. Moisture can affect terminal contacts, PCB surfaces, and small protective components.
• Store away from corrosive vapors, salt air, and conductive dust. Termination hardware is especially sensitive to environmental contamination.
• Inspect terminal screws, connector contacts, and enclosure clips before deployment.
• Record serial information, storage duration, inspection date, and assigned system location in the spare inventory database.

7. Physical Installation Prerequisites

• Install the ICS Triplex T9881 according to the approved AADvance system wiring design.
• Confirm terminal assignments before connecting field conductors.
• Use correct cable shielding and grounding practices for analog signals.
• Verify cabinet protective earth bonding.
• Maintain adequate cabinet airflow. Leave at least 50 mm clearance above and below rack-mounted electronic assemblies where convection cooling is used.
• Keep analog wiring separated from high-voltage switching cables.
• Tighten field terminals according to approved torque requirements.
• Use ESD protection when handling the assembly.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the ICS Triplex T9881?

A: Industrial automation termination assemblies are commonly reviewed under HS 8537 or HS 8538 classifications. The final tariff code depends on the declared function and importing country’s customs rules.

Q: Does Country of Origin (COO) affect import approval for this component?

A: Yes. COO documentation supports customs clearance, supplier verification, and equipment traceability. Ensure the COO matches the commercial invoice and packing records.

Q: Should shipping insurance be purchased for the T9881?

A: Recommended. The assembly is lightweight, but damage to terminal interfaces, connector areas, or PCB components can create installation failures that are difficult to diagnose after delivery.

Q: Does the T9881 include firmware pre-loaded?

A: No. The T9881 is a termination assembly and does not function as a processor module. Firmware is managed by the associated AADvance controller and output modules. Verify the connected module revision before commissioning.
