Motorola MVME2603 | Legacy Automation Computer

Description

1. Motorola MVME2603 | Legacy Automation Computer

Unboxing & Physical Snapshot

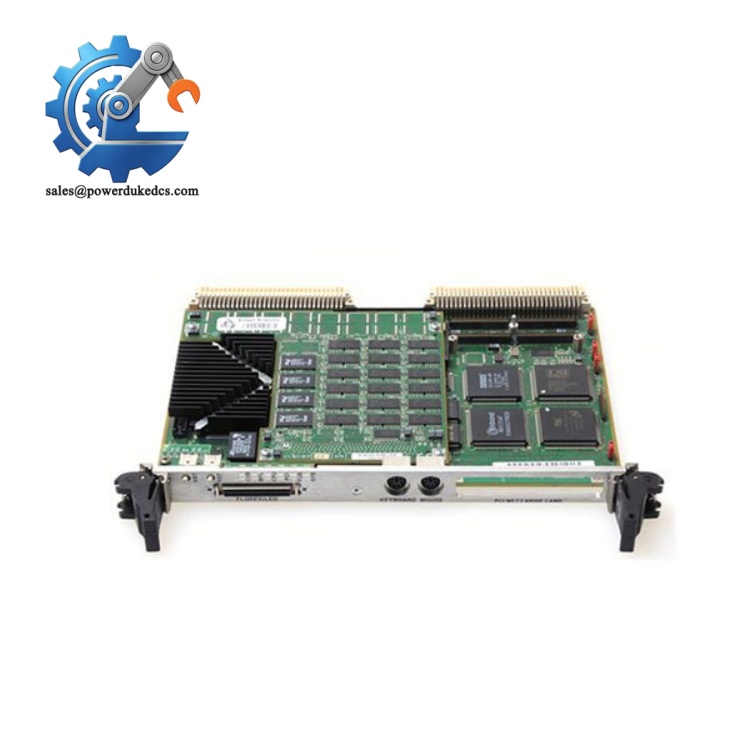

• Brand & Model: Motorola MVME2603
• Product Type: Single-slot VMEbus single-board computer (SBC) based on the PowerPC 603 processor architecture. The MVME2603 is designed for embedded industrial computing applications requiring VME backplane communication, ECC memory, PMC expansion, and long service operation.
• Physical Dimensions (Approximate W × H × D):
  • Form factor: 6U double-height VME module
  • Base board: approximately 233 × 160 × 20 mm
  • With front panel and connectors: approximately 262 × 188 × 20 mm
  • Front panel width: approximately 0.8 in (20 mm)
• Estimated Shipping Weight: Approximately 0.9–1.2 kg including ESD shielding bag, protective foam, and export carton.
• What’s in the Box:
  • Motorola MVME2603 VME single-board computer
  • Front panel assembly
  • VME backplane connector interface
  • RAM200 ECC DRAM module (configuration dependent)
  • Optional PMC expansion card if supplied
  • Battery-backed NVRAM/RTC assembly
  • Anti-static (ESD) shielding bag
  • Protective packaging
  • Documentation when available

Product Introduction

Structure B — Architecture Hook

The Motorola MVME2603 installs into a single VME chassis slot as an embedded processing controller within a modular industrial computer system. Its architecture combines a PowerPC processor, PCI local bus, VME interface, memory subsystem, and optional PMC expansion capability on one 6U board. Verify the backplane type, transition module, and installed mezzanine hardware before replacement.

This controller remains in service across long-life platforms because replacing a validated VME computer assembly often requires software migration and system recertification. Inspect the VME edge connector, RAM200 memory module, PMC area, and battery-backed NVRAM components before installation (—especially when the spare has been stored for many years). Handle the PCB by the edges. Connector contamination is a common source of intermittent startup faults.

Core Technical Specifications

Motorola MVME2603

The family includes different memory and transition module combinations. Confirm processor revision, RAM size, Flash configuration, and I/O accessories before accepting a replacement.

? Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the Motorola include:

• CE Mark — applicable when installed within a compliant equipment assembly.
• UL/cUL Recognition — may apply depending on the complete system certification.
• FCC Compliance — relevant for electromagnetic emissions requirements.
• RoHS Compliance — dependent on manufacturing date and production revision.
• IEC EMC Compliance — important for embedded processor boards installed near industrial switching equipment.
• ATEX/IECEx Compatibility — not a standalone hazardous-area certified product; suitability depends on the complete enclosure and certified system design.
• Marine Approvals (DNV GL) — applicable only when integrated into certified marine automation equipment.

EMC certification matters because the combines processor clocks, PCI signaling, VME backplane communication, and expansion interfaces inside a dense electronic enclosure.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Keep the Motorola inside its original anti-static (ESD) shielding bag. Protect the VME connector fingers, PMC contacts, and transition-module connectors from oxidation.

Inspect the battery-backed NVRAM/RTC device before installation. Aging batteries can leak electrolyte and damage nearby PCB traces (—a common issue with older VME inventory).

Maintain warehouse humidity below 60% RH. Excess moisture can degrade connector plating and increase contact resistance.

Before deployment:

• Check VME connector condition.
• Inspect RAM200 module seating.
• Verify Flash devices are secure.
• Confirm the PCB surface is clean and free from corrosion.

Allow sealed boards to reach room temperature before opening the packaging to prevent condensation damage.

Physical Installation Prerequisites

• Install only in a compatible 6U VME chassis.
• Confirm VME backplane compatibility before insertion.
• Verify +5 VDC power capacity and auxiliary voltage availability.
• Provide forced-air cooling through the card cage.
• Leave at least 50 mm clearance around airflow paths where cabinet construction permits.
• Confirm protective earth grounding continuity.
• Secure front-panel retaining screws and ejector mechanisms before operation.

Do not remove or install the module while energized unless the VME system specifically supports live insertion.

Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is commonly used for the Motorola ?

A: The final Harmonized System classification depends on the importing country’s customs interpretation and declared function. VME single-board computers are generally reviewed under electronic processing equipment or industrial control board categories. Confirm the final HS code with your customs broker before shipment.

Q2. Does Country of Origin affect import documentation?

A: Yes. COO records may affect customs clearance, duty assessment, and customer audit requirements. Maintain the original label, serial number records, supplier documentation, and receiving inspection reports.

Q3. Should shipping insurance be purchased for this VME controller?

A: Recommended. The contains exposed connectors, memory modules, and battery-backed components that can be affected by impact, moisture, or electrostatic discharge. Use ESD packaging and replacement-value freight insurance.

Q4. Does the include the latest firmware pre-loaded?

A: Firmware depends on the installed Flash contents, boot ROM revision, and previous application configuration. Verify the firmware version, memory configuration, and operating environment before installation into an active VME system.
