2. Unboxing & Physical Snapshot

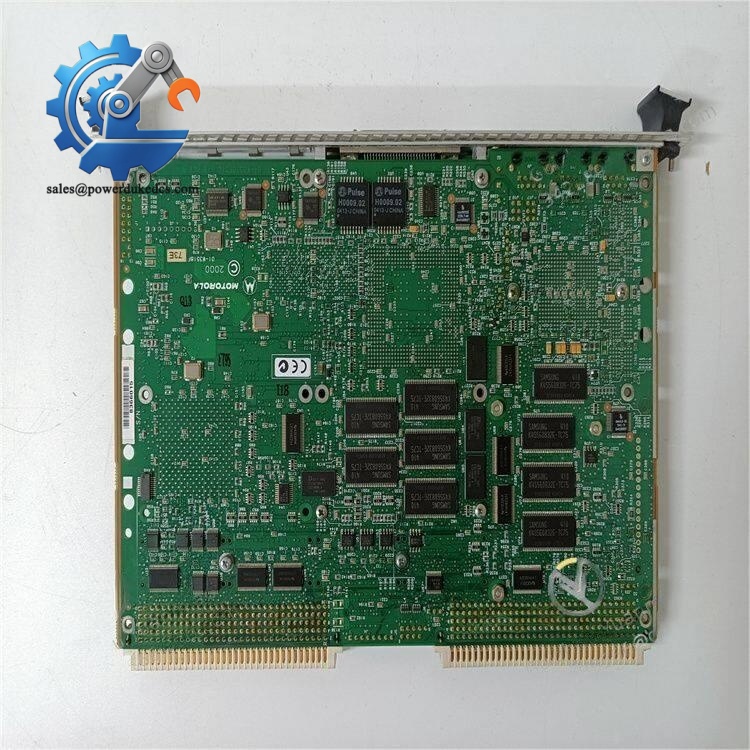

Brand & Model: Motorola MVME5100
Product Type: 6U VMEbus single-board computer (SBC) designed for embedded industrial computing, control systems, and legacy automation platforms. The MVME5100 series uses a VME architecture with PCI expansion capability, PMC support, and onboard processor resources for embedded applications.
Physical Dimensions (Approximate W × H × D):
- Board body: 19.8 × 233.4 × 160 mm
- Front panel height: approximately 261.8 mm
- Maximum component height: approximately 14.8 mm
Estimated Shipping Weight: Approximately 1.0–1.5 kg including ESD protection, anti-static packaging, and export carton.
What’s in the Box:
- Motorola MVME5100 VME single-board computer
- Front panel assembly
- VME backplane connector interface
- Installed memory configuration (revision dependent)
- ESD shielding bag
- Protective foam packaging
- Documentation when available

3. Product Introduction

Structure B — Architecture Hook

The Motorola MVME5100 installs into a 6U VME chassis as the primary embedded computing element within a modular control architecture. It communicates through the VME backplane while supporting processor functions, memory resources, PCI expansion, and optional PMC modules. Correct chassis compatibility and transition module selection must be confirmed before installation.

This controller is commonly retained as a lifecycle spare in systems where application software, operating environments, and existing VME infrastructure cannot be replaced easily. Inspect the VME edge connectors, front-panel hardware, PMC interfaces, and onboard components before deployment (—especially for units stored beyond normal service intervals). The board requires controlled handling because connector damage or electrostatic exposure can create failures that appear only after system startup.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Motorola
Model Number	MVME5100
Product Type	6U VME Single Board Computer
Bus Architecture	VMEbus
Expansion Interface	PCI / PMC support
Board Dimensions	233.4 × 160 × 19.8 mm
Front Panel Height	Approximately 261.8 mm
Processor	PowerPC-based embedded processor architecture
Memory	Configuration dependent
VME Interface	A32/D32/D64 addressing and data capability
PCI Bus Clock	33 MHz
PCI Signaling	5V
Power Input	+5 VDC, +12 VDC, -12 VDC
Typical +5V Consumption	Approximately 3.0 A
Maximum +5V Consumption	Approximately 3.8 A
+12V Consumption	Approximately 8 mA typical
-12V Consumption	Approximately 2 mA typical
PMC Power Capacity	Up to 7.5 W per PMC slot
Cooling Method	Forced-air VME chassis cooling
Operating Temperature	0°C to 55°C commercial; industrial range dependent on cooling
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 90% non-condensing

Motorola MVME5100

Power values vary according to installed PMC modules, transition modules, and board configuration. Confirm the exact hardware revision before replacing an installed controller.

5. ? Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the Motorola MVME5100 include:

CE Mark — applicable when installed as part of a compliant equipment assembly.
UL/cUL Recognition — may apply depending on the final industrial computer system certification.
FCC Compliance — relevant for electromagnetic emissions requirements.
RoHS Compliance — dependent on manufacturing date and production revision.
IEC EMC Compliance — important for embedded computing hardware operating near industrial switching equipment.
ATEX/IECEx Compatibility — not a standalone hazardous-area certified product; suitability depends on the complete enclosure and system approval.
Marine Approvals (DNV GL) — applicable only when integrated into certified marine automation equipment.

EMC compliance matters because VME systems contain high-speed processor clocks, PCI interfaces, and dense backplane connections that can generate electrical interference if installed incorrectly.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Keep the Motorola MVME5100 inside its original anti-static (ESD) shielding bag during storage. Protect the VME connector fingers and PMC expansion interfaces from oxidation and contamination.

Maintain warehouse humidity below 60% RH. Long storage periods in uncontrolled environments can degrade connector surfaces and increase the possibility of intermittent startup faults.

Inspect stored boards every 12–24 months. Check the PCB surface, connector contacts, socketed components, front panel hardware, and any installed batteries or memory devices. Allow sealed boards to stabilize at room temperature before opening the packaging to prevent condensation damage.

7. Physical Installation Prerequisites

Install only in a compatible 6U VME chassis.
Verify VME backplane type and slot allocation before insertion.
Confirm chassis power supply capacity for +5 VDC loading.
Provide forced-air cooling through the card cage.
Maintain sufficient clearance around chassis ventilation paths.
Maintain approximately 50 mm clearance around airflow openings where cabinet design permits.
Confirm protective earth grounding continuity.
Secure front-panel retaining screws before operation.

Do not insert or remove the board under power unless the specific VME system supports that procedure.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is commonly used for the Motorola MVME5100?

A: The final Harmonized System classification depends on the importing country’s customs interpretation and the declared function of the equipment. Embedded computer boards are generally reviewed under electronic processing equipment or industrial control board categories. Confirm the final HS code with your customs broker before export.

Q2. Does Country of Origin affect MVME5100 import clearance?

A: Yes. COO documentation can influence customs processing, duty assessment, and customer audit records. Maintain the original identification label, serial information, supplier documentation, and receiving inspection records.

Q3. Is shipping insurance recommended for this VME controller board?

A: Recommended. The MVME5100 contains precision electronic assemblies, edge connectors, and expansion interfaces that may be affected by impact, moisture, or electrostatic discharge. Use ESD packaging and replacement-value freight insurance.

Q4. Does the MVME5100 include the latest firmware pre-loaded?

A: Firmware depends on the installed boot ROM, Flash contents, and previous system configuration. Verify the actual firmware revision, operating environment compatibility, and application software requirements before installation into an operational VME system.
