1. Motorola MVME2434 | Legacy Automation CPU Assembly

2. Unboxing & Physical Snapshot

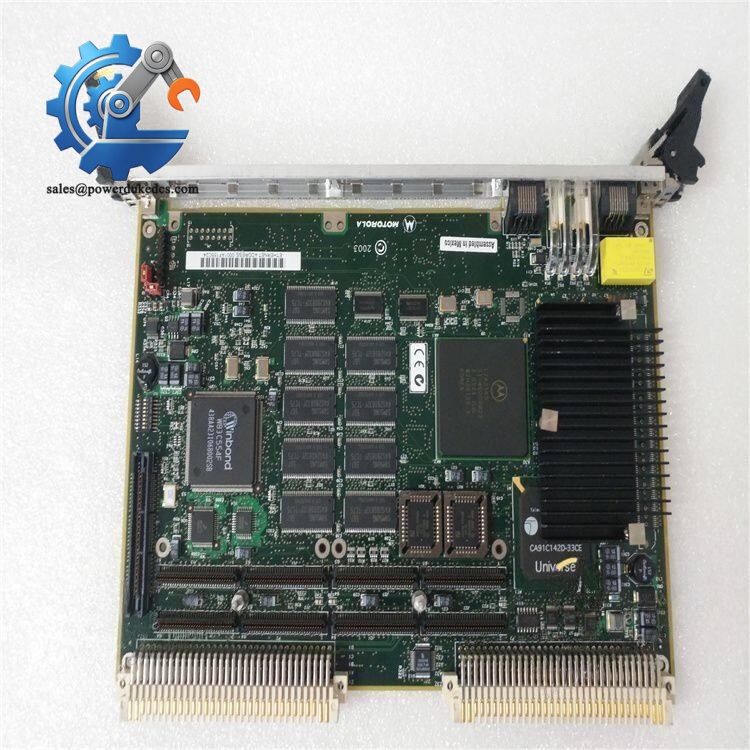

• Model & Brand: Motorola MVME2434
• Product Type: 6U VMEbus single-board computer (SBC) designed for embedded industrial computing, instrumentation, telecommunications, and long-life control applications. The MVME2434 belongs to the Motorola MVME2400 series and uses a PowerPC 750 processor architecture.
• Approximate Physical Dimensions (W × H × D):
  • 233 × 160 mm board format (6U VME form factor)
  • Depth depends on front panel, PMC modules, and installed accessories.
• Estimated Shipping Weight: Approximately 0.8-1.5 kg including ESD packaging, protective foam, and shipping carton.
• What’s in the Box:
  • Motorola MVME2434 VME processor board
  • Front panel assembly with injector/ejector hardware
  • Installed processor and memory devices
  • VMEbus edge connectors
  • Anti-static (ESD) shielding bag
  • Conductive transport foam
  • Documentation package when supplied

3. Product Introduction

The Motorola MVME2434 installs directly into a 6U VME chassis backplane, where it operates as the embedded computing core for the equipment rack. The board communicates through the VMEbus architecture while managing local processing, memory operations, and external interfaces (which is critical for industrial systems that continue operating on validated legacy platforms).

This controller is commonly preserved as a strategic spare because replacing a VME-based computer platform can require software redevelopment, qualification testing, and extended downtime. The MVME2434 uses a PowerPC 750 processor running at approximately 350 MHz with ECC SDRAM configurations, flash storage, and optional expansion capability. Verify installed memory size, firmware image, PMC configuration, and operating system compatibility before replacement.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Motorola
Model	MVME2434
Product Family	MVME2400 Series
Product Type	VMEbus Single Board Computer
Form Factor	6U VME
Processor	Motorola MPC750 PowerPC
Processor Speed	350 MHz class
L2 Cache	1 MB backside cache
SDRAM Memory	256 MB ECC SDRAM
Flash Memory	Firmware storage (configuration dependent)
Non-Volatile Memory	Battery-backed NVRAM
VME Interface	VMEbus / VME64 compatible
Address Modes	A16/A24/A32
Data Transfer	D8/D16/D32 modes
Expansion Slots	Two PMC expansion positions
Serial Interfaces	Dual serial communication ports
Ethernet Interface	10/100Base-TX Ethernet
SCSI Interface	Integrated SCSI controller
Operating System Support	VxWorks, Linux, QNX (application dependent)
Supply Voltage	+5 VDC from VME backplane
Typical Power Consumption	Approximately 15-20 W
Heat Dissipation	Primarily from CPU, memory, and interface ASICs
Cooling Method	Forced-air chassis cooling
Operating Temperature	0°C to +70°C typical
Storage Temperature	Approximately -40°C to +85°C

Motorola MVME2434

5. ? Global Compliance & Industry Certifications

Expected compliance considerations for the Motorola MVME2434 include:

• CE Mark: May apply when installed within a compliant equipment enclosure meeting EMC requirements.
• UL/cUL Recognition: Typically evaluated as part of the complete industrial computer chassis rather than the individual VME board.
• RoHS Compliance: Original MVME2434 production predates current RoHS requirements; refurbished inventory should be verified by production revision.
• ATEX / IECEx: Not a standalone hazardous-area certified product. Hazardous-area use requires evaluation of the complete certified system.
• Marine Approvals (DNV GL): Applicable only when installed in approved marine control or instrumentation equipment.

Legacy VME processors require strict configuration control during audits. Hardware revision, firmware image, operating system version, and installed expansion modules should remain documented as part of the asset record.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Keep the MVME2434 inside an anti-static shielding bag during storage. The VME connector fingers, processor package, and memory devices should remain protected from electrostatic discharge and airborne contaminants.

Maintain warehouse humidity below 60% RH. Avoid condensation cycles because moisture can affect connector surfaces and create intermittent startup faults after installation.

Inspect stored boards every 12-24 months. Check the front panel hardware, ejector handles, VME edge connector plating, battery-backed memory area, and board identification labels. Before deployment, confirm firmware compatibility and perform a controlled chassis power-up test.

7. Physical Installation Prerequisites

• Install the MVME2434 only in a compatible 6U VME chassis.
• Verify the backplane supports required VME addressing and transfer modes.
• Confirm chassis cooling airflow before operation.
• Maintain unobstructed airflow through the card cage.
• Inspect VME connectors for oxidation or mechanical damage.
• Verify chassis grounding and protective earth bonding.
• Confirm backplane power rails:
  • +5 VDC
  • +12 VDC (if required by installed accessories)
  • -12 VDC (if required by installed accessories)
• Verify boot ROM, operating system image, and application software before returning the system to service.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for a Motorola MVME2434 shipment?

A: VME processor boards are commonly reviewed under HS classifications related to electronic computer assemblies, often within HS 8471 or related electronic board categories. The final classification depends on customs interpretation and the declared function of the imported assembly.

Q: Does Country of Origin (COO) documentation matter for this VME controller?

A: Yes. COO information supports customs processing, asset traceability, and maintenance documentation. For refurbished boards, retain records showing manufacturer identity, refurbishment status, and shipment origin.

Q: Should this controller board ship with insurance coverage?

A: Recommended. The MVME2434 contains processor silicon, ECC memory, VME connectors, and battery-backed components. Transport shock or moisture exposure can cause failures that may only appear during system boot.

Q: Does the MVME2434 include the latest firmware pre-loaded?

A: Firmware depends on the installed flash contents and previous service history. The board may contain factory boot firmware, but application software, operating system images, and configuration files must be verified against the existing system before installation.
