1. Motorola MVME5110-2263 | Authentic Legacy Automation Unit

2. Unboxing & Physical Snapshot

• Model & Brand: Motorola MVME5110-2263
• Product Type: 6U VMEbus single-board computer designed for embedded industrial computing, defense systems, instrumentation, and long-life automation applications. The MVME5110 series uses PowerPC processor technology with ECC memory, flash storage, PMC expansion, and VMEbus connectivity.
• Approximate Physical Dimensions (W × H × D):
  • Standard 6U VME form factor
  • Approximately 233 × 160 mm board footprint
  • Depth varies with PMC modules and rear transition assemblies.
• Estimated Shipping Weight: Approximately 0.8-1.2 kg including ESD protection, conductive foam, and shipping carton.
• What’s in the Box:

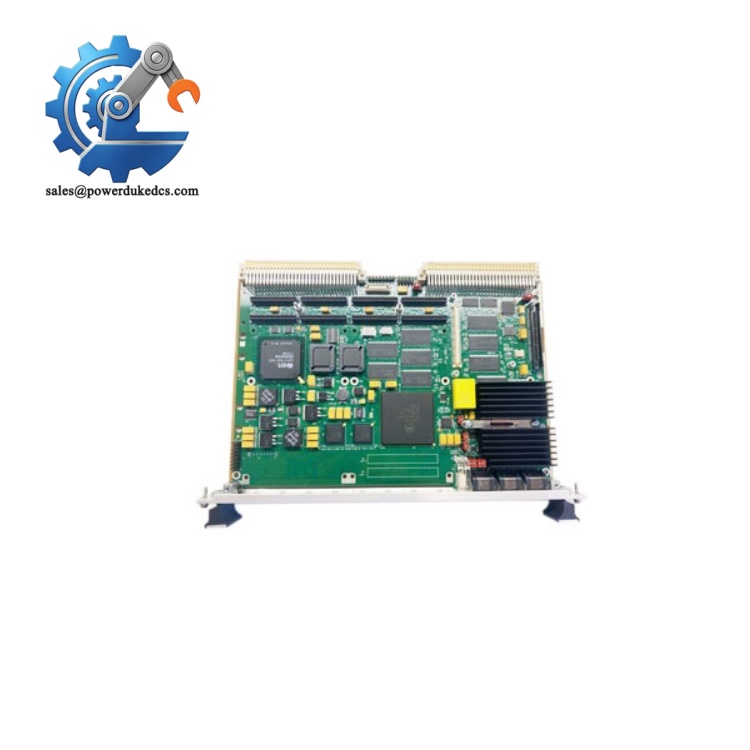

  • Motorola MVME5110-2263 VME processor board
  • IEEE 1101 compatible front panel assembly
  • Installed PowerPC processor
  • ECC SDRAM memory
  • Flash memory devices
  • VMEbus edge connector interface
  • Anti-static (ESD) shielding bag
  • Conductive foam insert
  • Documentation package when supplied

3. Product Introduction

The Motorola MVME5110-2263 mounts directly into a 6U VME chassis backplane, becoming the processing core of the embedded control rack. The board communicates through the VMEbus architecture while managing application execution, memory access, and peripheral interfaces (which is critical for facilities operating validated systems where hardware replacement must preserve the original computing environment).

This processor board belongs to a legacy computing platform still maintained in many industrial installations because software qualification and system validation often exceed normal hardware service periods. The MVME5110-2263 configuration uses a 500 MHz MPC7410 PowerPC processor, 512 MB ECC SDRAM, 17 MB flash memory, and a 2 MB L2 cache with IEEE front panel hardware. Verify the firmware image and installed PMC configuration before replacement.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Motorola
Model	MVME5110-2263
Product Family	MVME5100 Series
Product Type	VMEbus Single Board Computer
Form Factor	6U VME
Front Panel Type	IEEE 1101 compatible
Processor	MPC7410 PowerPC
Processor Speed	500 MHz
L2 Cache	2 MB backside cache
SDRAM Memory	512 MB ECC SDRAM
Flash Memory	17 MB
NVRAM	Battery-backed non-volatile memory
VME Interface	VMEbus compatible
VME Addressing	A16/A24/A32
Data Transfer	D8/D16/D32 modes
PMC Expansion	Dual PMC expansion capability
Ethernet Interface	Dual 10/100Base-TX Ethernet
Serial Interfaces	Dual asynchronous serial ports
Timer Functions	Four 32-bit timers and watchdog timer
Debug Interface	Onboard debug monitor
Operating System Support	VxWorks and embedded operating systems (application dependent)
Supply Voltage	+5 VDC from VME backplane
Typical Power Consumption	Approximately 20-30 W class
Heat Dissipation	Primarily from processor, memory, PCI bridge, and interface circuitry
Cooling Method	Forced-air VME chassis cooling

Motorola MVME5110-2263

5. ? Global Compliance & Industry Certifications

Expected regulatory considerations for the Motorola MVME5110-2263 include:

• CE Mark: May apply when installed inside a compliant equipment enclosure meeting EMC requirements.
• UL/cUL Recognition: Typically evaluated at the complete chassis or finished equipment level rather than the standalone processor board.
• RoHS Compliance: Verify the manufacturing revision because MVME5100-series production spans different environmental compliance periods.
• ATEX / IECEx: Not a standalone hazardous-area certified device. Hazardous-area suitability depends on the complete certified control system.
• Marine Approvals (DNV GL): Applicable only when installed within approved marine automation or instrumentation equipment.

Legacy VME systems require strict configuration records. Maintain board revision, serial number, firmware version, memory configuration, and installed expansion modules to support future audits.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Keep the MVME5110-2263 inside its original anti-static shielding bag during warehouse storage. The VME edge connector fingers, processor package, and memory devices can degrade from electrostatic exposure and airborne contamination.

Maintain storage humidity below 60% RH. Avoid areas with temperature swings because condensation can create oxidation on connector surfaces.

Inspect stored boards every 12-24 months. Check the IEEE front panel, ejector handles, connector plating, battery-backed memory area, and PCB condition. Before installation, perform a controlled power-up test and confirm the firmware environment matches the existing application record.

7. Physical Installation Prerequisites

• Install the MVME5110-2263 only in a compatible 6U VME chassis.
• Confirm the backplane supports required VME addressing and transfer modes.
• Verify forced-air cooling before energizing the board.
• Maintain unobstructed airflow through the card cage.
• Leave sufficient clearance around adjacent modules to prevent heat buildup.
• Inspect VME connector contacts before insertion.
• Confirm chassis grounding and protective earth bonding.
• Verify stable +5 VDC backplane power.
• Confirm PMC modules and rear transition hardware compatibility.
• Validate boot firmware, operating system image, and application software before commissioning.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for a Motorola MVME5110-2263 shipment?

A: VME processor boards are commonly reviewed under HS classifications associated with electronic computing assemblies, often within HS 8471 or related electronic board categories. Final classification depends on customs interpretation and the declared function of the imported assembly.

Q: Why does Country of Origin (COO) documentation matter for this VME controller?

A: COO records support customs clearance, warranty traceability, and maintenance documentation. Refurbished boards should retain manufacturer identification, refurbishment status, and shipment origin records.

Q: Should this PowerPC VME board ship with insurance coverage?

A: Recommended. The MVME5110-2263 contains processor silicon, ECC memory, flash devices, and precision VME connectors. Shock, vibration, or moisture exposure may create failures that appear only during system startup.

Q: Does the MVME5110-2263 include the latest firmware pre-loaded?

A: The board contains factory firmware storage, but the installed image depends on previous service history. Confirm the PPCBug firmware revision, operating system image, and customer-specific application software before replacement.
