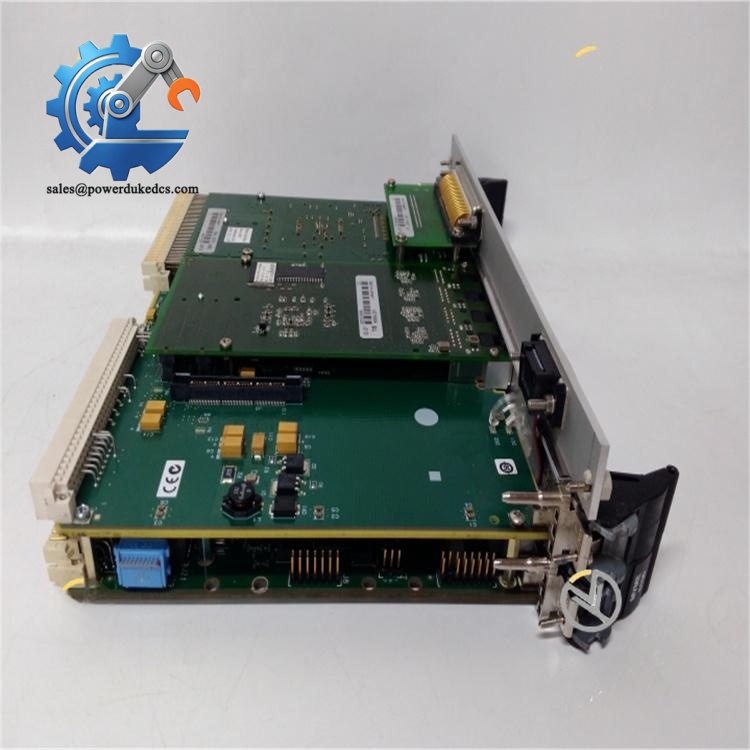

1. Motorola MVME61006E-0161 | 512MB DDR VME Module

2. Unboxing & Physical Snapshot

• Brand & Model: Motorola MVME61006E-0161
• Product Family: Motorola MVME6100 Series VMEbus Single Board Computer.
• Product Type: 6U VME64x PowerPC single-board computer designed for industrial computing, embedded control, and high-speed data processing systems.
• Primary Function: Provides embedded CPU processing, memory, Ethernet communication, VMEbus control, and PMC expansion capability within VME chassis architectures.
• Processor: Motorola MPC7457 PowerPC processor.
• Processor Speed: 1.267 GHz.
• Memory Configuration: 512 MB DDR memory and 128 MB Flash storage.
• Approximate Physical Dimensions: Approximately 233 × 160 × 20 mm (9.2 × 6.3 × 0.8 in), based on standard 6U VME board dimensions.
• Estimated Shipping Weight: Approximately 0.8–1.2 kg (1.8–2.6 lb) including ESD packaging.
• Mounting Style: 6U VME64x rack installation with VME backplane connectors.
• Board Construction:
  • Multi-layer industrial PCB
  • Aluminum front panel
  • VME P1/P2/P0 connectors
  • Scanbe ejector handles
  • Processor heatsink assembly
• Communication Interfaces:
  • Dual Gigabit Ethernet
  • Serial communication interfaces
  • PMC expansion support
• Expansion Capability:
  • Two PMC/PCI-X mezzanine card sites
  • VME64x 2eSST bus support
• What’s in the Box:
  • Motorola MVME61006E-0161 CPU board
  • Anti-static ESD shielding bag
  • Protective transport packaging
  • Documentation when supplied

3. Product Introduction

The Motorola MVME61006E-0161 installs into a 6U VME64x chassis as the main processing element for embedded industrial computer systems. Its MPC7457 PowerPC processor, DDR memory subsystem, and VME communication architecture allow existing control platforms to maintain high-speed processing capability without replacing the entire rack infrastructure. (This is particularly important for long-life automation systems where validated software environments must remain unchanged.)

Treat this board as a controlled electronic asset. Inspect the VME connector blades, front-panel ejector handles, heatsink surface, and PMC locations before installation. Check the storage history. Older VME assemblies can remain serviceable for decades, but contamination, battery aging, and connector oxidation are common causes of field failures.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Motorola
Model Number	MVME61006E-0161
Product Type	VMEbus Single Board Computer
Form Factor	6U VME64x
Processor	MPC7457 PowerPC
CPU Frequency	1.267 GHz
System Controller	Marvell MV64360
DDR Memory	512 MB
Flash Memory	128 MB
Cache Memory	512 KB L2 cache
VMEbus Interface	VME64x with 2eSST support
Ethernet Interfaces	Dual Gigabit Ethernet
Serial Ports	Two asynchronous serial interfaces
PMC Expansion	Two PCI/PCI-X PMC sites
Storage Support	Flash-based storage and external options
RTC	Battery-backed real-time clock
Operating Voltage	+5 VDC VME supply with auxiliary rails
Power Consumption	Approximately 30–40 W depending on configuration
Cooling Method	Forced rack airflow
Operating Environment	Industrial VME chassis

Motorola MVME61006E-0161

5. Global Compliance & Industry Certifications

Expected regulatory considerations for the Motorola MVME61006E-0161 include:

• CE Mark — applicable when the board is installed within a compliant VME system enclosure meeting EMC requirements.
• UL/cUL Recognition — normally evaluated at the complete equipment or chassis level rather than the individual CPU board.
• RoHS Compliance — depends on manufacturing revision. Later MVME6100 revisions may have updated environmental compliance status.
• IEC Industrial Equipment Requirements — relevant when integrated into industrial control or test platforms.
• ATEX/IECEx — not an automatic approval for the board itself. Hazardous-area compliance requires a complete certified system design.
• Marine approvals (DNV GL, ABS, or LR) — only applicable when installed within a certified marine automation system.

The MVME6100 series has published EMC and RoHS-related declarations for supported models, including MVME61006E variants.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Store the MVME61006E-0161 inside an original anti-static (ESD) shielding bag. The VME connector contacts and high-density processor components require protection from static discharge.
• Maintain warehouse humidity below 60% RH. Moisture exposure can accelerate oxidation on edge connectors and reduce long-term contact reliability.
• Inspect the battery-backed RTC area before deployment. Replace aging batteries when required to prevent leakage damage to nearby PCB traces.
• Keep the aluminum heatsink and ventilation openings free from dust accumulation.
• Record the board serial number, hardware revision, firmware image, and storage inspection date in the spare asset database.

7. Physical Installation Prerequisites

• Install the MVME61006E-0161 only in a compatible 6U VME64x chassis.
• Confirm VME slot assignment and system controller configuration before applying power.
• Inspect P1/P2/P0 connectors for bent contacts or oxidation.
• Verify chassis protective earth grounding before operation.
• Maintain airflow around the processor heatsink area. Leave at least 50 mm clearance above and below the rack assembly where cabinet airflow depends on open convection paths.
• Confirm cooling fan operation before extended operation.
• Avoid touching gold-plated connector fingers directly.
• Verify firmware compatibility with the installed VME application before commissioning.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the Motorola MVME61006E-0161?

A: VME single-board computers are commonly reviewed under HS classifications related to electronic computing assemblies, often within 8471 categories. Final classification depends on the importing country, declared function, and customs interpretation.

Q: Why is Country of Origin important for this Motorola VME board?

A: COO information affects customs documentation, supplier qualification, warranty records, and regulated asset tracking. Keep the board label, serial number, and shipping documents together.

Q: Should shipping insurance be included for the MVME61006E-0161?

A: Recommended. This board contains high-value processor electronics, memory devices, and VME connectors. Shock, moisture, or ESD exposure during transport may not be visible until power-up testing.

Q: Does the MVME61006E-0161 include the latest firmware pre-loaded?

A: The board includes factory boot firmware support, but the application image depends on the target VME system configuration. Verify boot software, operating environment, and customer-specific firmware before replacement.
