Motorola MVME55006E-0161 | 1GHz PowerPC VME Module

Description

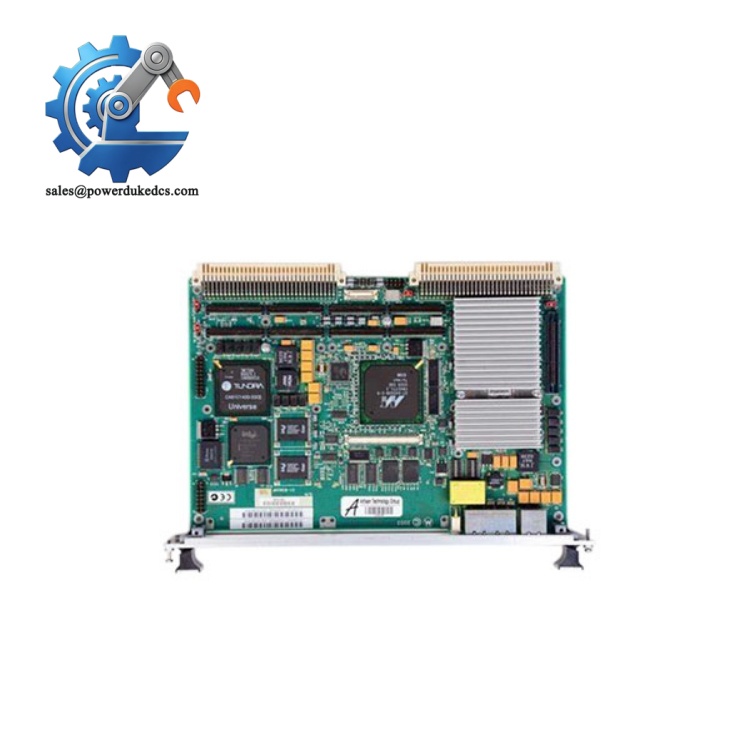

1. Motorola MVME55006E-0161 | 1GHz PowerPC VME Module

Unboxing & Physical Snapshot

• Brand & Model: Motorola MVME55006E-0161
• Product Family: Motorola MVME5500 Series VME Single Board Computer.
• Product Type: 6U VME64x embedded single-board computer designed for industrial control, defense, telecom, and high-performance embedded processing applications.
• Processor Architecture: Motorola MPC7457 PowerPC processor.
• Processor Speed: 1 GHz.
• Memory Configuration: 512 MB ECC SDRAM installed on board.
• Approximate Physical Dimensions: Approximately 233 × 160 × 20 mm (9.2 × 6.3 × 0.8 in), based on standard 6U VME board format.
• Estimated Shipping Weight: Approximately 1.0–1.5 kg (2.2–3.3 lb) including ESD shielding and transport packaging.
• Mounting Style: Single-slot 6U VME/VME64x rack installation.
• Board Construction:
  • Multi-layer industrial PCB
  • Aluminum front panel
  • VME P1/P2 backplane connectors
  • Processor heatsink assembly
  • PMC expansion areas
• Processor Hardware:
  • MPC7457 PowerPC CPU
  • 256 KB on-chip L2 cache
  • 2 MB L3 cache
• Communication Interfaces:
  • Gigabit Ethernet
  • 10/100 Ethernet interface
  • Serial communication support
• Expansion Capability:
  • Dual PCI/PMC sites
  • 64-bit PCI expansion connector
  • VME64x interface
• What’s in the Box:
  • Motorola MVME55006E-0161 CPU board
  • Anti-static ESD shielding bag
  • Protective foam packaging
  • Documentation when supplied

Product Introduction

The Motorola MVME55006E-0161 installs into a 6U VME64x chassis as the primary computing module for embedded systems requiring long service intervals and deterministic hardware behavior. The MPC7457 PowerPC processor, ECC memory, Gigabit Ethernet interface, and PMC expansion architecture allow this board to remain integrated in mature VME platforms without changing the surrounding cabinet infrastructure. (This matters in validated systems where software qualification and hardware replacement cycles are tightly controlled.)

Handle this assembly as a controlled electronic spare. Inspect the VME connector pins, front-panel ejector handles, processor heatsink contact surface, and battery-backed components before installation. Check the storage history. Older VME computers often fail from environmental exposure rather than normal operating stress.

Core Technical Specifications

Motorola MVME55006E-0161

Global Compliance & Industry Certifications

Expected regulatory considerations for the Motorola MVME55006E-0161 include:

• CE Mark — applicable when installed inside a compliant VME chassis meeting EMC and safety requirements.
• UL/cUL Recognition — generally evaluated at the complete equipment level rather than the individual processor board.
• RoHS Compliance — depends on production revision and manufacturing date.
• IEC Industrial Equipment Requirements — relevant when integrated into industrial control or embedded computing systems.
• ATEX/IECEx — the board itself does not automatically qualify for hazardous locations; certification depends on the complete enclosure and installation design.
• Marine approvals (DNV GL, ABS, or LR) — applicable only when incorporated into certified marine computing systems.

The ECC memory architecture and controlled VME installation environment are important factors when maintaining reliable embedded computing platforms in industrial service.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Keep the inside its original anti-static (ESD) shielding bag. The high-density processor package, VME connector contacts, and memory devices are vulnerable to static discharge.
• Maintain storage humidity below 60% RH. Moisture exposure can oxidize connector surfaces and reduce contact reliability during rack insertion.
• Inspect the battery-backed NVRAM and real-time clock battery before deployment. Replace aging cells if leakage or voltage degradation is detected.
• Store the board horizontally with mechanical support. Avoid placing pressure on the front panel, heatsink, or connector edges.
• Record firmware revision, hardware revision, serial number, and inspection dates in the spare asset database.

Physical Installation Prerequisites

• Install the only in a compatible 6U VME64x chassis.
• Verify the VME slot assignment and system controller configuration before power application.
• Inspect P1/P2 connectors for oxidation, bent contacts, or foreign material.
• Ensure chassis protective earth grounding is completed before operation.
• Maintain cabinet airflow around the processor heatsink. Leave at least 50 mm clearance above and below the rack assembly where convection paths are used.
• Confirm cooling fan operation for forced-air VME systems.
• Avoid touching gold-plated connector fingers directly.
• Verify boot firmware and application software compatibility before commissioning.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the Motorola ?

A: VME single-board computers are commonly reviewed under HS classifications associated with electronic computing assemblies, often within 8471 categories. Final classification depends on the importing country’s customs rules and the declared function of the equipment.

Q: How does Country of Origin affect this Motorola VME board shipment?

A: COO documentation supports customs clearance, supplier verification, warranty tracking, and regulated asset records. Keep the original label information, serial number, and commercial documents together.

Q: Should shipping insurance be included for the ?

A: Recommended. This board contains a high-value PowerPC processor, ECC memory, Flash storage, and precision VME connectors. Transit shock or moisture exposure may not be visible until functional testing.

Q: Does the include the latest firmware pre-loaded?

A: The board includes factory boot firmware support, but the operational software image depends on the target VME system. Verify firmware revision, operating system image, and customer application files before replacement.
