Description
- Motorola MVME61006E-0173CR | Traceable VMEbus Spare
2. Unboxing & Physical Snapshot
- Model & Brand: Motorola MVME61006E-0173CR
- Product Type: 6U VMEbus PowerPC Single Board Computer (SBC)
- Application: High-performance embedded controller designed for VMEbus industrial computing platforms, including automation, defense, telecommunications, and legacy control systems. The MVME61006E-0173CR configuration uses a 1.267 GHz MPC7457 PowerPC processor, 1 GB DDR memory, 128 MB Flash memory, IEEE front panel handles, and conformal coating protection.
- Approximate Physical Dimensions (W × H × D):
- Width: approximately 233 mm
- Height: approximately 160 mm
- Depth: approximately 25 mm
- Form Factor: 6U VME single-board computer
- Estimated Shipping Weight: Approximately 1.5–2.0 kg including ESD packaging and protective transport materials.
- What’s in the Box:
- Motorola MVME61006E-0173CR controller board
- Front panel IEEE handle assembly
- VMEbus P1/P2 connectors
- Installed PowerPC processor and memory
- Conformal coating protection on PCB surfaces
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Documentation when supplied with controlled inventory
3. Product Introduction
Installed inside a 6U VME chassis, the MVME61006E-0173CR operates as the primary computing element within an embedded control architecture. The VME backplane supplies power and communication paths while the board handles processor execution, memory operations, and system-level application tasks. The conformal coating version was designed for environments where additional PCB protection is required (useful in locations exposed to humidity, airborne contaminants, or industrial operating conditions).
This controller is a specialized replacement asset, not a general-purpose computer board. Verify firmware compatibility, VME addressing, application software image, and memory configuration before installation. Inspect the VME connector fingers, conformal coating surface, heatsink area, and front-panel hardware before energizing the rack. A damaged coating area or contaminated connector can create faults that appear to be software-related.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Motorola |
| Model Number | MVME61006E-0173CR |
| Product Type | VME Single Board Computer |
| Form Factor | 6U VME |
| Processor | MPC7457 PowerPC |
| Processor Speed | 1.267 GHz |
| DDR Memory | 1 GB DDR SDRAM |
| Flash Memory | 128 MB |
| PCB Protection | Conformal coated |
| Front Panel Type | IEEE handles |
| Bus Architecture | VMEbus |
| VME Interface | High-performance VME bridge architecture |
| Expansion Support | PMC/XMC compatible options depending on configuration |
| Serial Interface | System configuration dependent |
| Ethernet Interface | System configuration dependent |
| Power Supply | VME backplane +5 VDC and auxiliary rails |
| Power Consumption | Configuration dependent |
| Heat Dissipation | Approximately equal to operating electrical losses |
| Cooling Method | Forced-air chassis cooling |
| Mounting Method | 6U VME rack slot |
| Operating Environment | Industrial electronic enclosure |

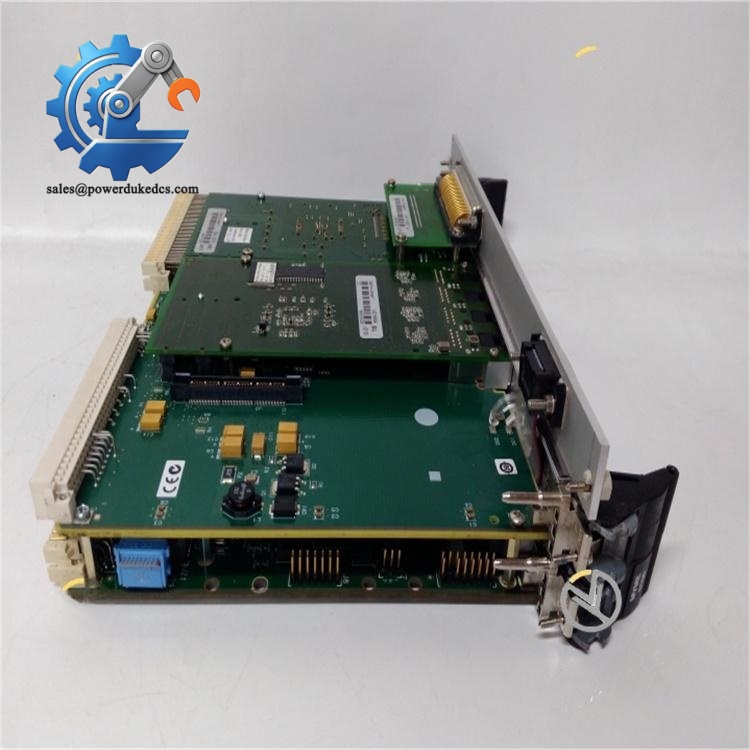

Motorola MVME61006E-0173CR
5. Global Compliance & Industry Certifications
Expected compliance considerations for this class of industrial embedded computing hardware include:
- CE Mark for applicable EMC requirements when installed within a compliant system enclosure.
- UL/cUL Listed or Recognized status depending on the final equipment assembly.
- ATEX/IECEx consideration only when incorporated into a complete certified hazardous-area system.
- Marine approvals such as DNV GL where installed within approved vessel or offshore control equipment.
The conformal coating improves environmental protection of the PCB, but it does not create hazardous-area certification. For Class I or explosive environments, the enclosure, wiring methods, power system, and complete equipment approval remain the determining factors.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
- Store the MVME61006E-0173CR inside its original anti-static (ESD) shielding bag. Keep the VME connector contacts covered to prevent oxidation.
- Maintain warehouse humidity below 60% RH. Conformal coating protects the PCB surface, but connectors, pins, and mechanical hardware remain exposed to environmental effects.
- Inspect stored boards every 12–24 months. Record firmware revision, check battery-backed components if equipped, and inspect the heatsink and connector areas for contamination (legacy VME assets often fail during installation after years of uncontrolled storage).
7. Physical Installation Prerequisites
- Install only into a compatible 6U VME chassis with matching backplane requirements.
- Verify VME slot assignment, address mapping, and system controller configuration before startup.
- Maintain sufficient forced-air cooling through the chassis. High-frequency PowerPC processors require controlled airflow.
- Confirm VME power rails:
- +5 VDC
- +12 VDC
- -12 VDC where applicable
- Ensure chassis grounding and protective earth bonding are complete.
- Use ESD protection during handling.
- Verify firmware image, boot parameters, operating system compatibility, and application software before returning the system to operation.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly reviewed for the Motorola MVME61006E-0173CR?
A: VME embedded computer boards are commonly evaluated under HS 8471 or related electronic processing equipment classifications. The final tariff decision depends on the importing country, declared function, and customs interpretation.
Q: Does Country of Origin (COO) documentation matter for this VME controller?
A: Yes. COO documentation supports customs clearance, supplier qualification, and lifecycle tracking for critical automation assets. Maintain the OEM label, serial number, purchase records, and incoming inspection reports.
Q: Should shipping insurance be purchased for the MVME61006E-0173CR?
A: Yes. This controller contains specialized PowerPC processing hardware, DDR memory, Flash devices, and conformal-coated PCB assemblies. Use ESD packaging, shock protection, moisture barriers, and declared-value freight coverage.
Q: Does the Motorola MVME61006E-0173CR include the latest firmware pre-loaded?
A: Firmware depends on the installed Flash image and original application environment. The hardware specification confirms the Flash capacity, but the actual boot firmware revision must be verified against the existing VME system before deployment.
